725-042 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SINGLE FML 42POS 0.100

Part	Termination Rows	Material - Insulation	Color	Gender	Termination	Number of Positions	Contact Finish	Number of Rows	Read Out	Pitch	Pitch	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Card Type	Card Thickness [Max]	Card Thickness [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Mounting Type	Number of Positions/Bay/Row	Termination Rows [custom]	Number of Rows [custom]	Number of Positions/Bay/Row [custom]
EDAC Inc. 725-042-540-101	1	Polyester Thermoplastic	Black	Female	Press-Fit Wire Wrap	42	Gold	1	Single	0.1 "	2.54 mm	30 Áin	0.76 Ám	Cantilever	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Copper Alloy	Through Hole	42

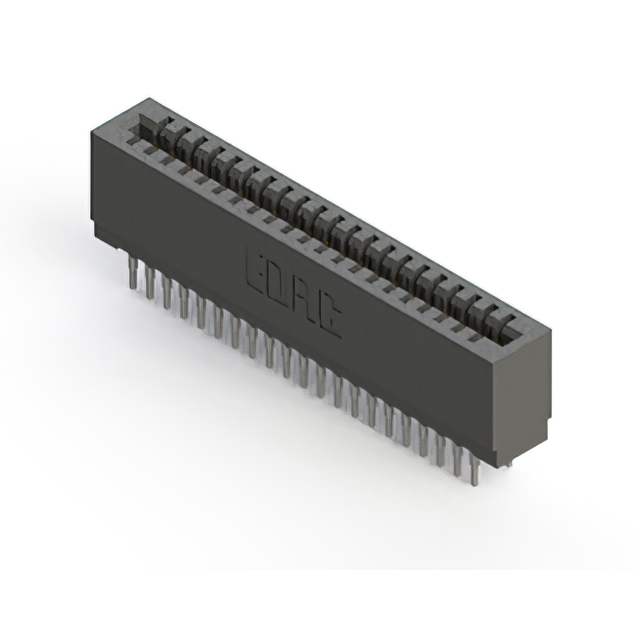

EDAC Inc. 725-042-522-201		Polyester Thermoplastic	Black	Female	Press-Fit	42	Gold		Dual	0.1 "	2.54 mm	30 Áin	0.76 Ám	Cantilever	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Copper Alloy	Through Hole		2	2	21

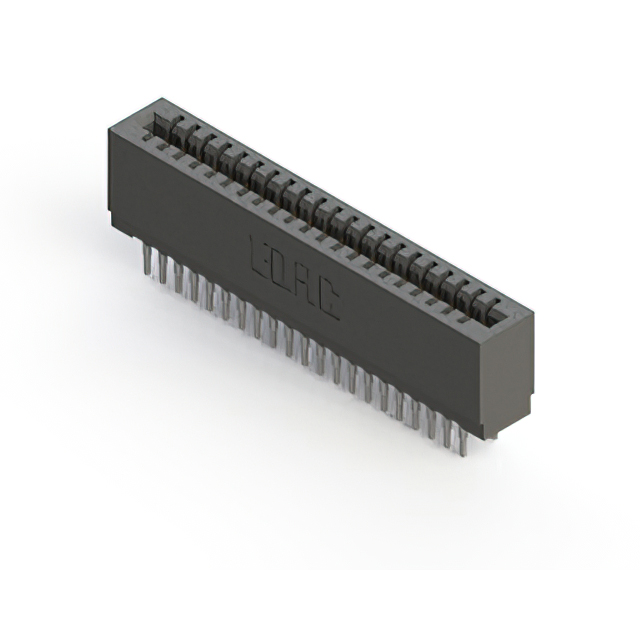

EDAC Inc. 725-042-540-201		Polyester Thermoplastic	Black	Female	Press-Fit Wire Wrap	42	Gold		Dual	0.1 "	2.54 mm	30 Áin	0.76 Ám	Cantilever	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Copper Alloy	Through Hole		2	2	21

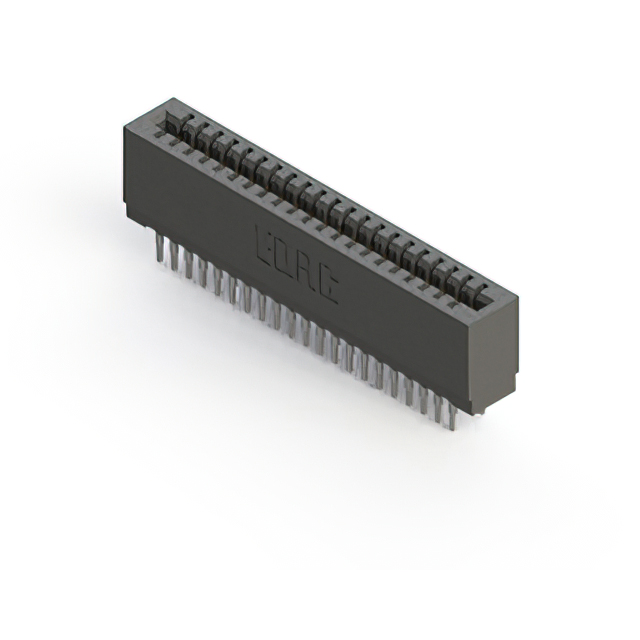

EDAC Inc. 725-042-541-201		Polyester Thermoplastic	Black	Female	Press-Fit Wire Wrap	42	Gold		Dual	0.1 "	2.54 mm	30 Áin	0.76 Ám	Cantilever	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Copper Alloy	Through Hole		2	2	21
EDAC Inc. 725-042-560-201		Polyester Thermoplastic	Black	Female	Press-Fit	42	Gold		Dual	0.1 "	2.54 mm	30 Áin	0.76 Ám	Cantilever Make Before Break	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Copper Alloy	Through Hole		2	2	21
EDAC Inc. 725-042-520-101	1	Polyester Thermoplastic	Black	Female	Press-Fit	42	Gold	1	Single	0.1 "	2.54 mm	30 Áin	0.76 Ám	Cantilever	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Copper Alloy	Through Hole	42
EDAC Inc. 725-042-541-101	1	Polyester Thermoplastic	Black	Female	Press-Fit Wire Wrap	42	Gold	1	Single	0.1 "	2.54 mm	30 Áin	0.76 Ám	Cantilever	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Copper Alloy	Through Hole	42

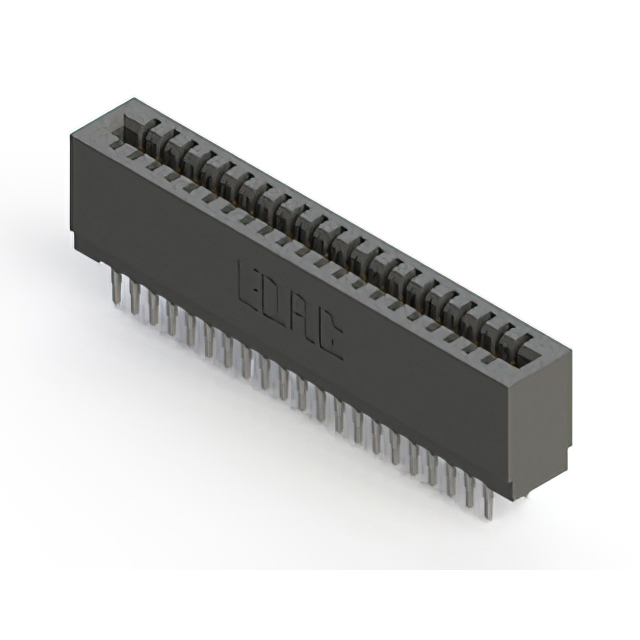

EDAC Inc. 725-042-520-201		Polyester Thermoplastic	Black	Female	Press-Fit	42	Gold		Dual	0.1 "	2.54 mm	30 Áin	0.76 Ám	Cantilever	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Copper Alloy	Through Hole		2	2	21
