34140 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

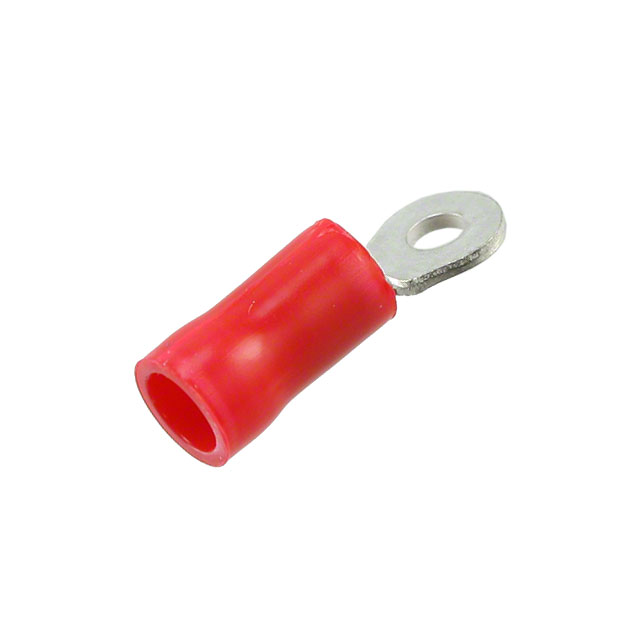

CONN RING CIRC 16-22AWG #2 CRIMP
| Part | Thickness | Thickness | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Termination | Wire Gauge [Max] | Wire Gauge [Min] | Material - Insulation | Features | Width - Outer Edges [x] | Width - Outer Edges [x] | Contact Material | Insulation | Mounting Type | Stud/Tab Size | Color | Length - Overall [x] | Length - Overall [x] | Terminal Type | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 0.031 in | 0.79 mm | 0.14 in | 0.105 in | 3.56 mm | 2.67 mm | Crimp | 22 AWG | 16 AWG | Poly-Vinyl Chloride (PVC) | Serrated Termination | 5.54 mm | 0.218 in | Copper | Insulated | Free Hanging (In-Line) | 2 Stud | Red | 17.37 mm | 0.684 in | Circular | Tin |
