CDFR17W Series

Catalog

CONN D-SUB PLUG 17POS R/A SLDR

Part	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Dielectric Material	Ingress Protection	Flange Feature	Connector Style	Termination	Contact Finish	Contact Finish Thickness	Features	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout	Shell Size, Connector Layout [custom]	Number of Positions	Contact Type	Mounting Type	Number of Rows [custom]	Connector Type	Shell Material, Finish	Material Flammability Rating	Contact Finish Thickness	Contact Finish Thickness

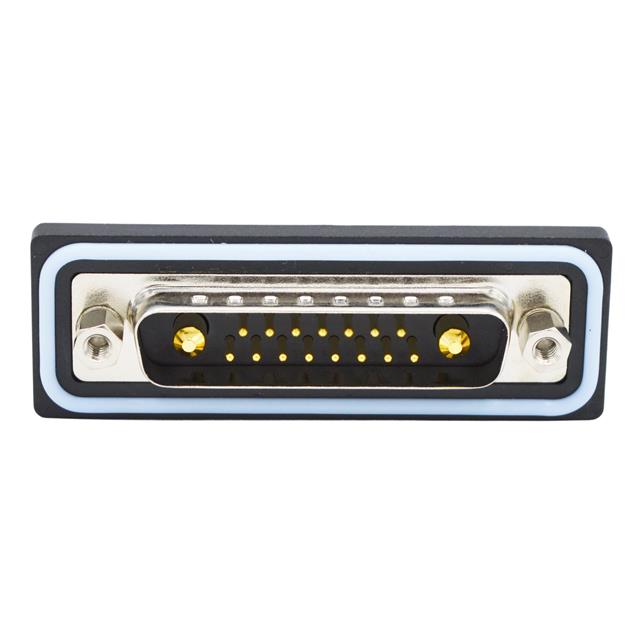

NorComp Inc. CDFR17W2113L461	85 °C	-25 °C	Brass	Polybutylene Terephthalate (PBT)	IP67 - Dust Tight Waterproof	4-40 Mating Side Female Screwlock	Combo D-Sub	Solder	Gold	Flash	Board Lock Grounding Indents Mounting Brackets	B DB	17W2	3	17	Signal and Power	Panel Mount Right Angle Through Hole	2	Plug Male Pins	Nickel Plated Steel	UL94 V-0

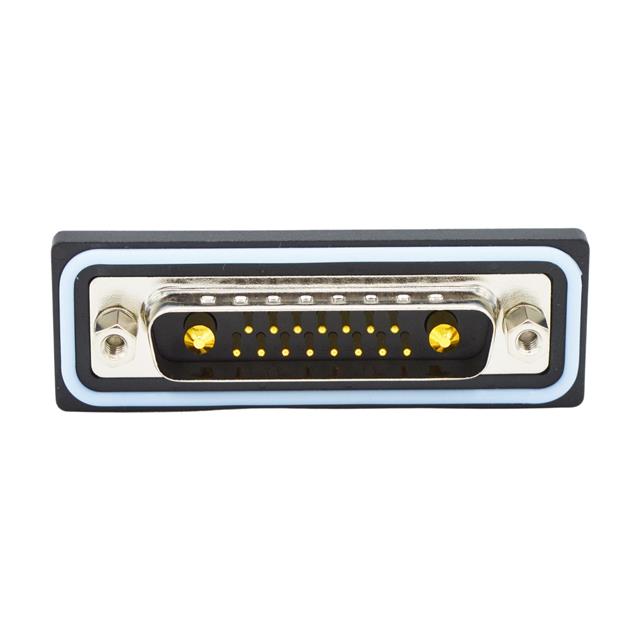

NorComp Inc. CDFR17W2113L261	85 °C	-25 °C	Brass	Polybutylene Terephthalate (PBT)	IP67 - Dust Tight Waterproof	4-40 Mating Side Female Screwlock	Combo D-Sub	Solder	Gold	Flash	Board Lock Grounding Indents Mounting Brackets	B DB	17W2	3	17	Signal and Power	Panel Mount Right Angle Through Hole	2	Plug Male Pins	Nickel Plated Steel	UL94 V-0

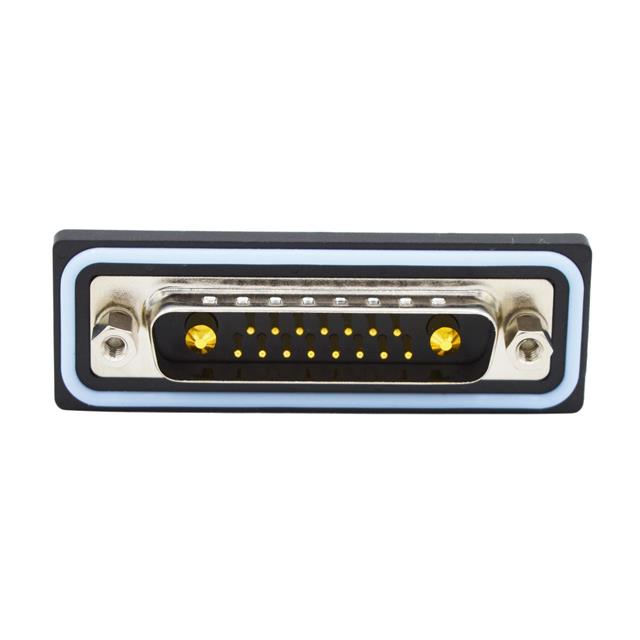

NorComp Inc. CDFR17W2113L211	85 °C	-25 °C	Brass	Polybutylene Terephthalate (PBT)	IP67 - Dust Tight Waterproof	4-40 Mating Side Female Screwlock	Combo D-Sub	Solder	Gold	Flash	Grounding Indents	B DB	17W2	3	17	Signal and Power	Panel Mount Right Angle Through Hole	2	Plug Male Pins	Nickel Plated Steel	UL94 V-0
NorComp Inc. CDFR17W2213L412	85 °C	-25 °C	Brass	Polybutylene Terephthalate (PBT)	IP67 - Dust Tight Waterproof	4-40 Mating Side Female Screwlock	Combo D-Sub	Solder	Gold			B DB	17W2	3	17	Signal and Power	Panel Mount Right Angle Through Hole	2	Receptacle Female Sockets	Nickel Plated Steel	UL94 V-0	30 Áin	0.76 Ám
NorComp Inc. CDFR17W2113L412	85 °C	-25 °C	Brass	Polybutylene Terephthalate (PBT)	IP67 - Dust Tight Waterproof	4-40 Mating Side Female Screwlock	Combo D-Sub	Solder	Gold		Grounding Indents	B DB	17W2	3	17	Signal and Power	Panel Mount Right Angle Through Hole	2	Plug Male Pins	Nickel Plated Steel	UL94 V-0	30 Áin	0.76 Ám

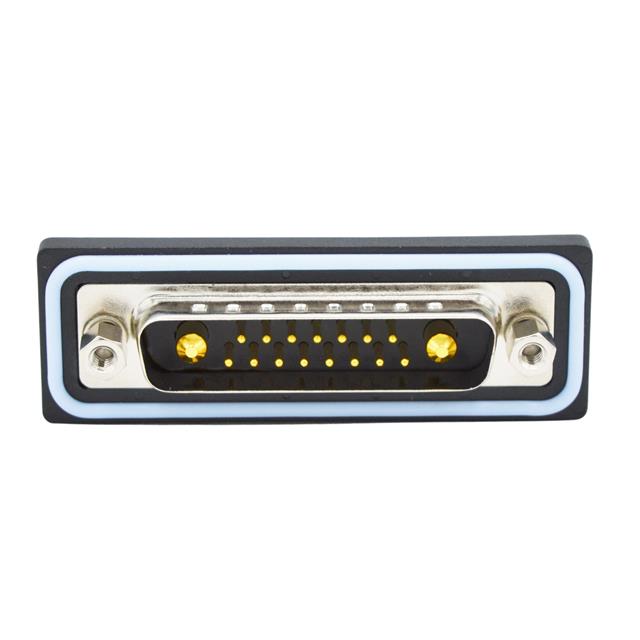

NorComp Inc. CDFR17W2113L411	85 °C	-25 °C	Brass	Polybutylene Terephthalate (PBT)	IP67 - Dust Tight Waterproof	4-40 Mating Side Female Screwlock	Combo D-Sub	Solder	Gold	Flash	Grounding Indents	B DB	17W2	3	17	Signal and Power	Panel Mount Right Angle Through Hole	2	Plug Male Pins	Nickel Plated Steel	UL94 V-0
NorComp Inc. CDFR17W2113L212	85 °C	-25 °C	Brass	Polybutylene Terephthalate (PBT)	IP67 - Dust Tight Waterproof	4-40 Mating Side Female Screwlock	Combo D-Sub	Solder	Gold		Grounding Indents	B DB	17W2	3	17	Signal and Power	Panel Mount Right Angle Through Hole	2	Plug Male Pins	Nickel Plated Steel	UL94 V-0	30 Áin	0.76 Ám

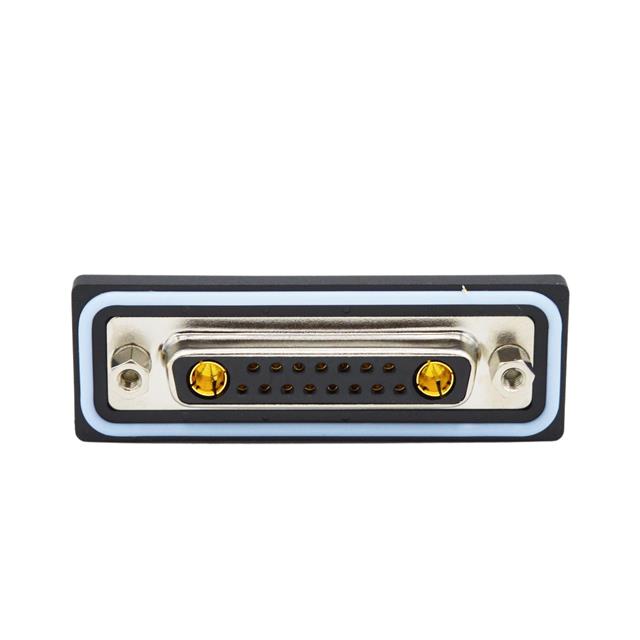

NorComp Inc. CDFR17W2213L261	85 °C	-25 °C	Brass	Polybutylene Terephthalate (PBT)	IP67 - Dust Tight Waterproof	4-40 Mating Side Female Screwlock	Combo D-Sub	Solder	Gold	Flash	Board Lock Mounting Brackets	B DB	17W2	3	17	Signal and Power	Panel Mount Right Angle Through Hole	2	Receptacle Female Sockets	Nickel Plated Steel	UL94 V-0

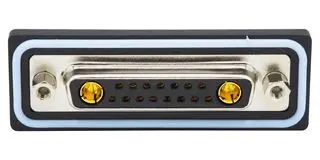

NorComp Inc. CDFR17W2213L262	85 °C	-25 °C	Brass	Polybutylene Terephthalate (PBT)	IP67 - Dust Tight Waterproof	4-40 Mating Side Female Screwlock	Combo D-Sub	Solder	Gold		Board Lock Mounting Brackets	B DB	17W2	3	17	Signal and Power	Panel Mount Right Angle Through Hole	2	Receptacle Female Sockets	Nickel Plated Steel	UL94 V-0	30 Áin	0.76 Ám
NorComp Inc. CDFR17W2113L262	85 °C	-25 °C	Brass	Polybutylene Terephthalate (PBT)	IP67 - Dust Tight Waterproof	4-40 Mating Side Female Screwlock	Combo D-Sub	Solder	Gold		Board Lock Grounding Indents Mounting Brackets	B DB	17W2	3	17	Signal and Power	Panel Mount Right Angle Through Hole	2	Plug Male Pins	Nickel Plated Steel	UL94 V-0	30 Áin	0.76 Ám
