MPX1D0830 Series

Manufacturer: KEMET

Catalog

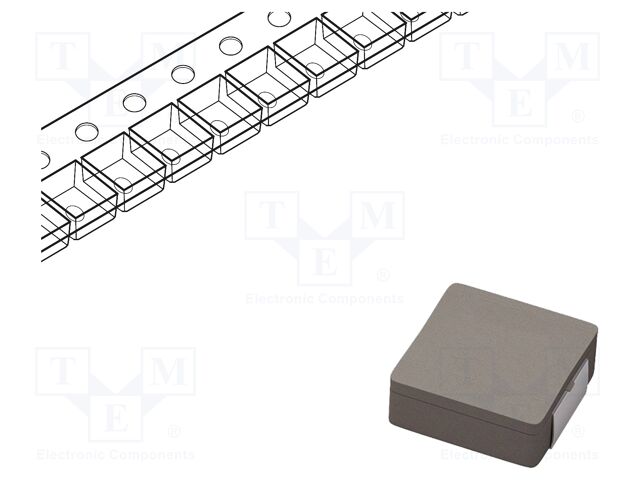

INDUCTOR POWER SHIELDED WIREWOUND 0.68UH 20% 100KHZ METAL 20.1A 0.0044OHM DCR 3232 T/R

Part	DC Resistance (DCR)	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Inductance	Inductance Frequency - Test	Current Rating (Amps)	Shielding	Material - Core	Current - Saturation (Isat)	Type	Tolerance	DC Resistance (DCR) [Max]
KEMET MPX1D0830LR68	4.4 mOhm	Surface Mount	155 C	-55 C	Nonstandard	0.118 "	3 mm	0.341 in	8.65 mm	8 mm	0.315 in	0.68 µH	100 kHz	20.1 A	Shielded	Metal Composite	28 A	Drum Core Wirewound	20 %
KEMET MPX1D0830LR33		Surface Mount	155 C	-55 C	Nonstandard	0.118 "	3 mm	0.341 in	8.65 mm	8 mm	0.315 in	330 nH	100 kHz	25.8 A	Shielded	Metal Composite	35 A	Drum Core Wirewound	20 %	2.7 mOhm
KEMET MPX1D0830L4R7		Surface Mount	155 C	-55 C	Nonstandard	0.118 "	3 mm	0.341 in	8.65 mm	8 mm	0.315 in	4.7 ÁH	100 kHz	7.7 A	Shielded	Metal Composite	10.5 A	Drum Core Wirewound	20 %	29.7 mOhm
KEMET MPX1D0830L220		Surface Mount	155 C	-55 C	Nonstandard	0.118 "	3 mm	0.341 in	8.65 mm	8 mm	0.315 in	22 µH	100 kHz	3.6 A	Shielded	Metal Composite	5 A	Drum Core Wirewound	20 %	134.5 mOhm
KEMET MPX1D0830L1R0		Surface Mount	155 C	-55 C	Nonstandard	0.118 "	3 mm	0.341 in	8.65 mm	8 mm	0.315 in	1 µH	100 kHz	17.6 A	Shielded	Metal Composite	23 A	Drum Core Wirewound	20 %	5.7 mOhm
KEMET MPX1D0830L2R2		Surface Mount	155 C	-55 C	Nonstandard	0.118 "	3 mm	0.341 in	8.65 mm	8 mm	0.315 in	2.2 µH	100 kHz	11.4 A	Shielded	Metal Composite	14 A	Drum Core Wirewound	20 %	13.6 mOhm
KEMET MPX1D0830L6R8		Surface Mount	155 C	-55 C	Nonstandard	0.118 "	3 mm	0.341 in	8.65 mm	8 mm	0.315 in	6.8 µH	100 kHz	6.8 A	Shielded	Metal Composite	10 A	Drum Core Wirewound	20 %	37.9 mOhm
KEMET MPX1D0830LR22		Surface Mount	155 C	-55 C	Nonstandard	0.118 "	3 mm	0.341 in	8.65 mm	8 mm	0.315 in	220 nH	100 kHz	30.7 A	Shielded	Metal Composite	43 A	Drum Core Wirewound	20 %	1.9 mOhm
KEMET MPX1D0830L1R5		Surface Mount	155 C	-55 C	Nonstandard	0.118 "	3 mm	0.341 in	8.65 mm	8 mm	0.315 in	1.5 µH	100 kHz	14 A	Shielded	Metal Composite	18 A	Drum Core Wirewound	20 %	9.1 mOhm
KEMET MPX1D0830L330		Surface Mount	155 C	-55 C	Nonstandard	0.118 "	3 mm	0.341 in	8.65 mm	8 mm	0.315 in	33 µH	100 kHz	2.8 A	Shielded	Metal Composite	4 A	Drum Core Wirewound	20 %	229.5 mOhm
