796635 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

TERM BLOCK PLUG 7POS STR 5.08MM

Part	Insulation Height	Insulation Height	Torque - Screw	Torque - Screw	Material Flammability Rating	Wire Strip Length [Max]	Wire Strip Length [Min]	Contact Material	Screw Size	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Termination Style	Pitch	Pitch	Mounting Type	Positions Per Level [custom]	Type	Contact Mating Finish	Color	Voltage - UL	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Number of Levels	Plug Wire Entry	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]	Positions Per Level	Features

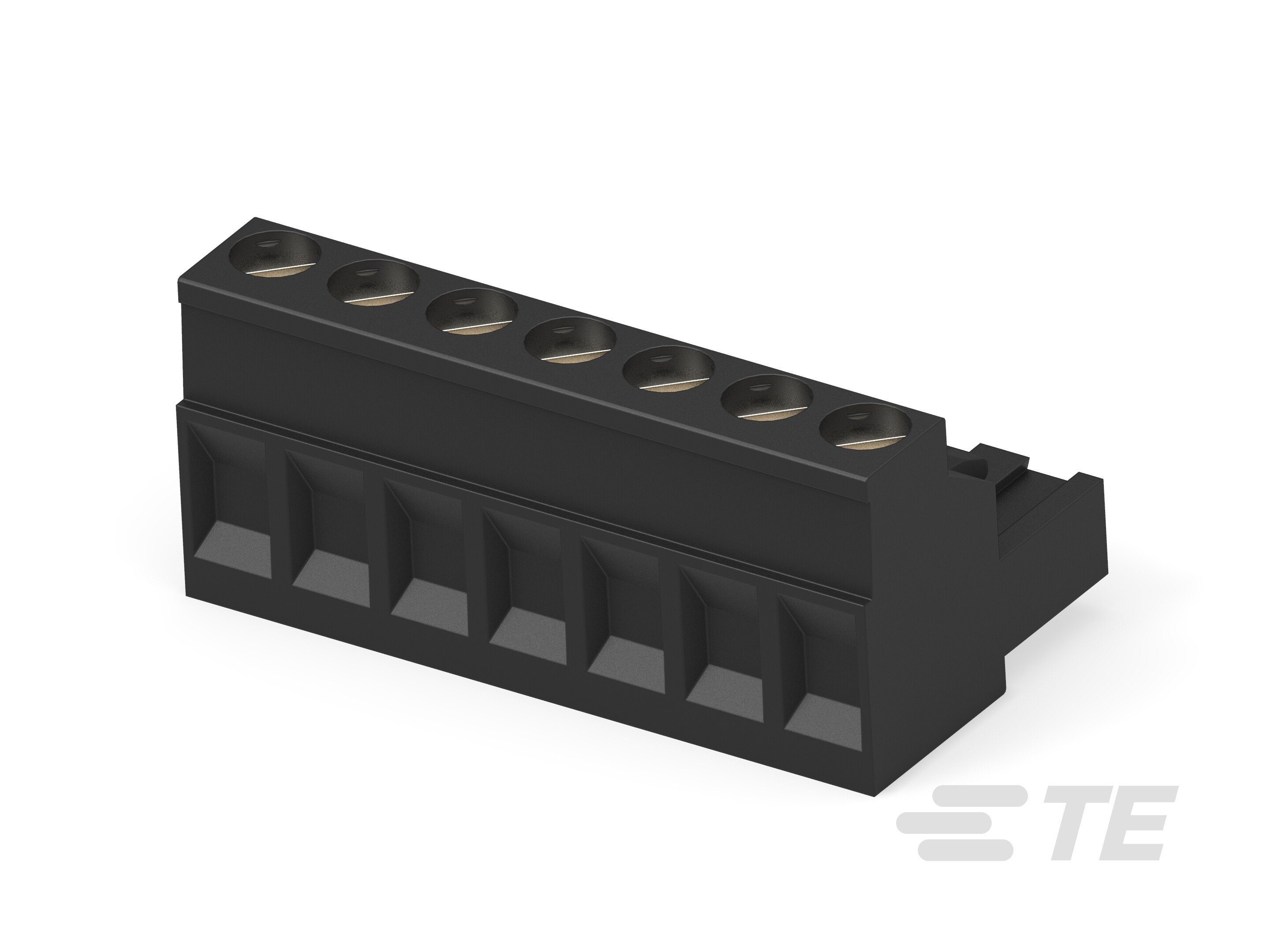

TE Connectivity AMP Connectors 796635-7	0.61 in	15.49 mm	7 Lb-In	0.79 Nm	UL94 V-0	7.5 mm	6 mm	Phosphor Bronze	M3	30 AWG	12 AWG	3 mm²	0.05 mm²	Screw - Rising Cage Clamp	5.08 mm	0.2 in	Free Hanging (In-Line)	7	Plug Female Sockets	Tin	Black	300 V	7	-40 C	110 °C	1	180 °

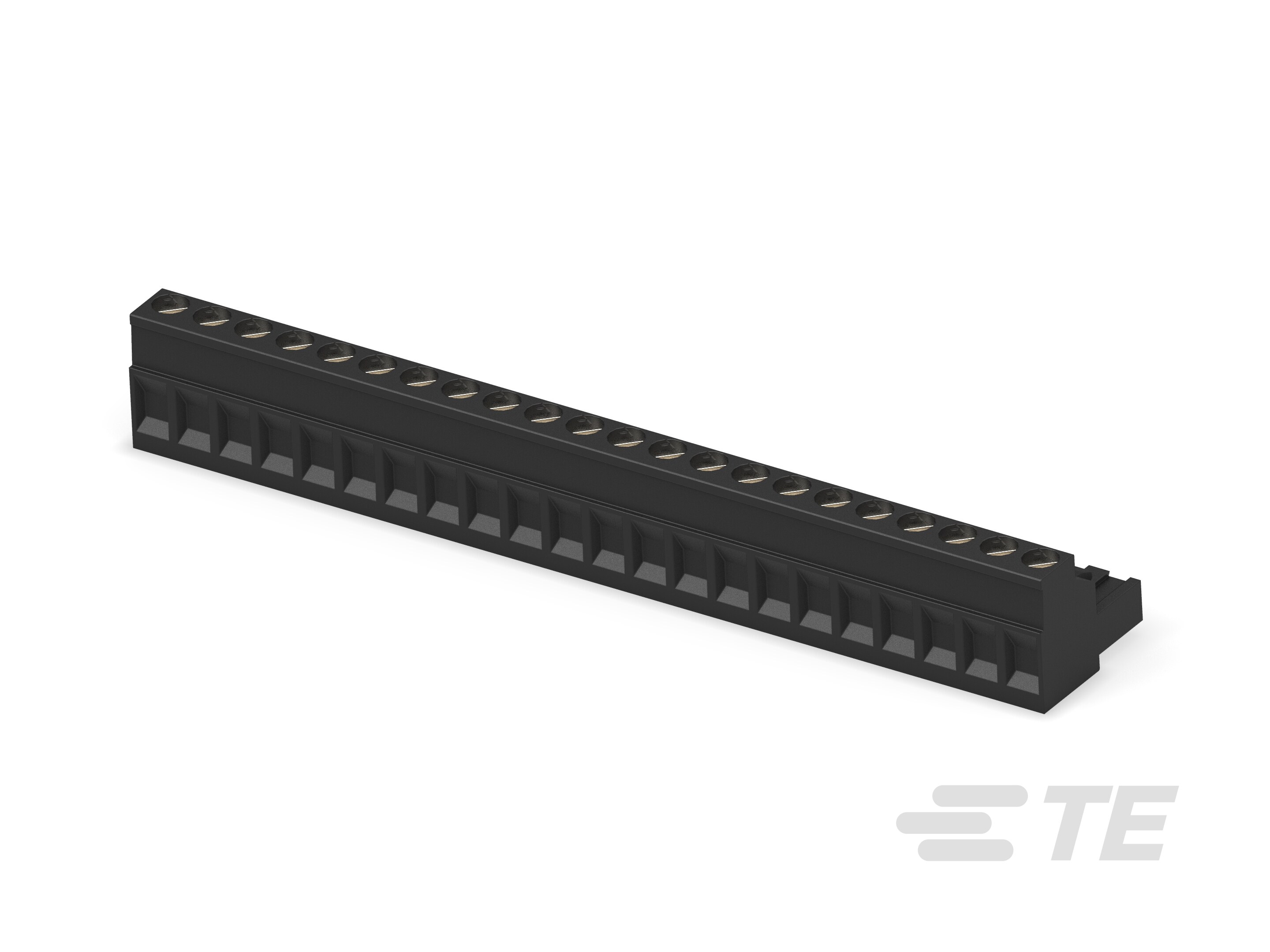

TE Connectivity AMP Connectors 2-796635-2	0.61 in	15.49 mm	7 Lb-In	0.79 Nm	UL94 V-0	7.5 mm	6 mm	Phosphor Bronze	M3	30 AWG	12 AWG	3 mm²	0.05 mm²	Screw - Rising Cage Clamp	5.08 mm	0.2 in	Free Hanging (In-Line)		Plug Female Sockets	Tin	Black	300 V	22	-40 C	110 °C	1	180 °	3 mm˛	0.05 mm˛	22
TE Connectivity AMP Connectors 2-796635-1	0.61 in	15.49 mm	7 Lb-In	0.79 Nm	UL94 V-0	7.5 mm	6 mm	Phosphor Bronze	M3	30 AWG	12 AWG	3 mm²	0.05 mm²	Screw - Rising Cage Clamp	5.08 mm	0.2 in	Free Hanging (In-Line)		Plug Female Sockets	Tin	Black	300 V	21	-40 C	110 °C	1	180 °			21

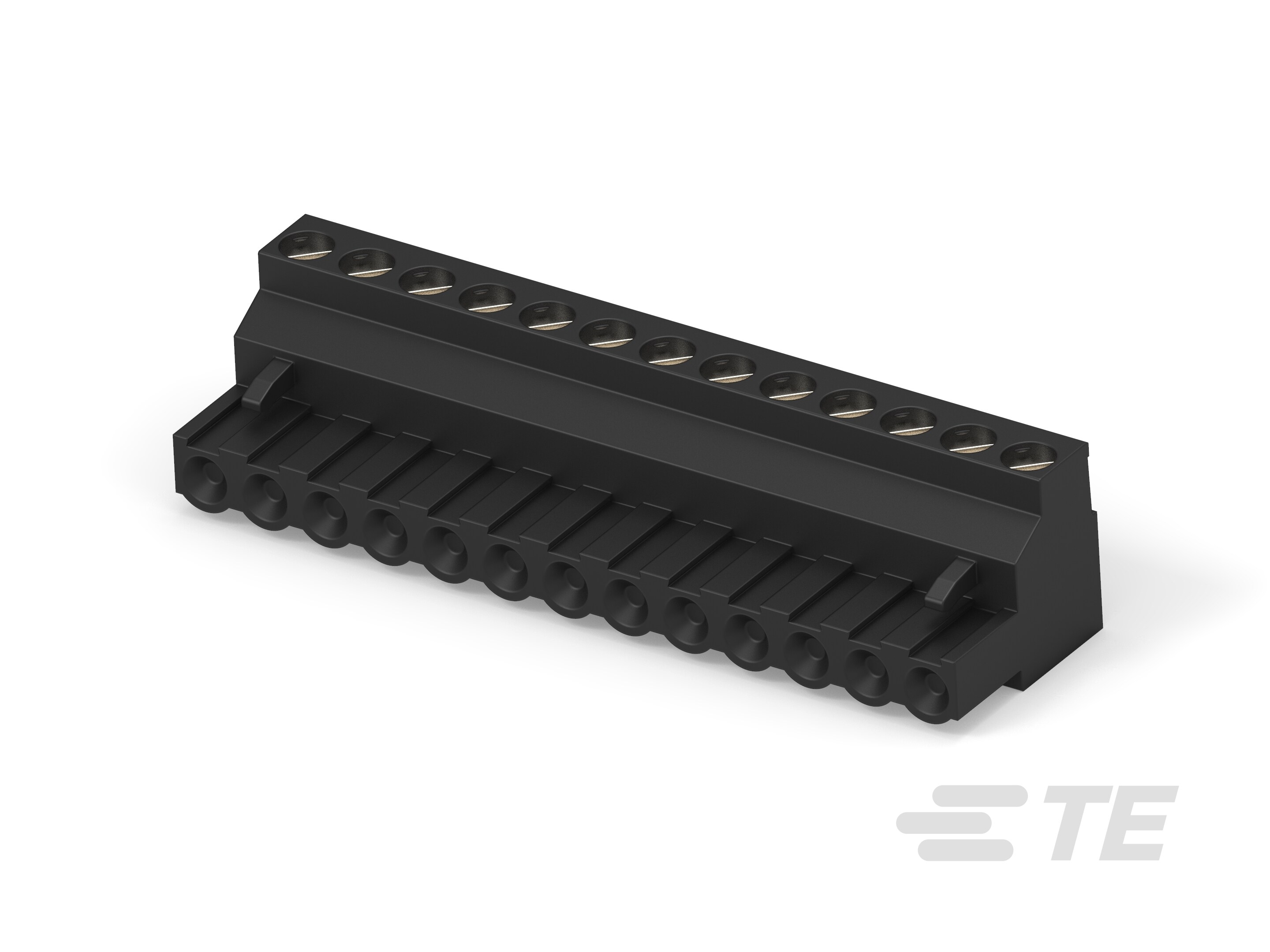

TE Connectivity AMP Connectors 4-796635-1	0.61 in	15.49 mm	7 Lb-In	0.79 Nm	UL94 V-0	7.5 mm	6 mm	Phosphor Bronze	M3	30 AWG	12 AWG	3 mm²	0.05 mm²	Screw - Rising Cage Clamp	5.08 mm	0.2 in	Free Hanging (In-Line)		Plug Female Sockets	Tin	Black	300 V	13	-40 C	110 °C	1	180 °			13	Positions Stamped Retention Latches (Non-Wire Side)
TE Connectivity AMP Connectors 3-796635-9	0.61 in	15.49 mm	7 Lb-In	0.79 Nm	UL94 V-0	7.5 mm	6 mm	Phosphor Bronze	M3	30 AWG	12 AWG	3 mm²	0.05 mm²	Screw - Rising Cage Clamp	5.08 mm	0.2 in	Free Hanging (In-Line)		Plug Female Sockets	Tin	Black	300 V		-40 C	110 °C	1	180 °			3	Positions Stamped Retention Latches (Non-Wire Side)
TE Connectivity AMP Connectors 1-796635-0	0.61 in	15.49 mm	7 Lb-In	0.79 Nm	UL94 V-0	7.5 mm	6 mm	Phosphor Bronze	M3	30 AWG	12 AWG	3 mm²	0.05 mm²	Screw - Rising Cage Clamp	5.08 mm	0.2 in	Free Hanging (In-Line)		Plug Female Sockets	Tin	Black	300 V	10	-40 C	110 °C	1	180 °	3 mm˛	0.05 mm˛	10

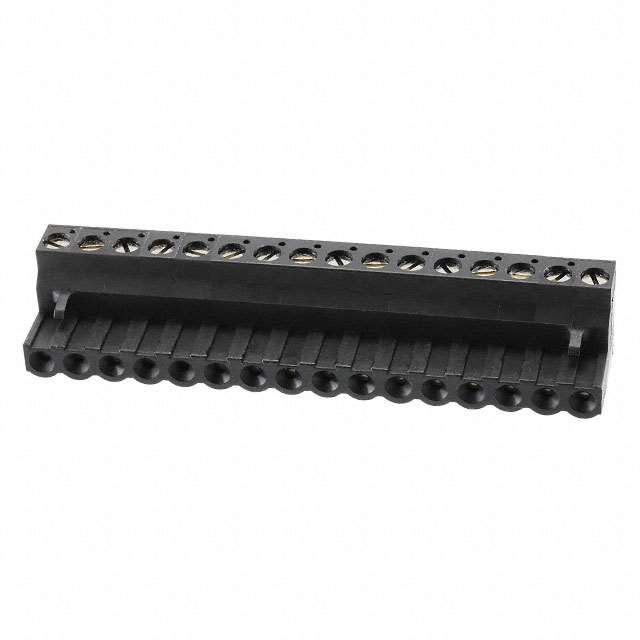

TE Connectivity AMP Connectors 1-796635-6	0.61 in	15.49 mm	7 Lb-In	0.79 Nm	UL94 V-0	7.5 mm	6 mm	Phosphor Bronze	M3	30 AWG	12 AWG	3 mm²	0.05 mm²	Screw - Rising Cage Clamp	5.08 mm	0.2 in	Free Hanging (In-Line)		Plug Female Sockets	Tin	Black	300 V	16	-40 C	110 °C	1	180 °			16

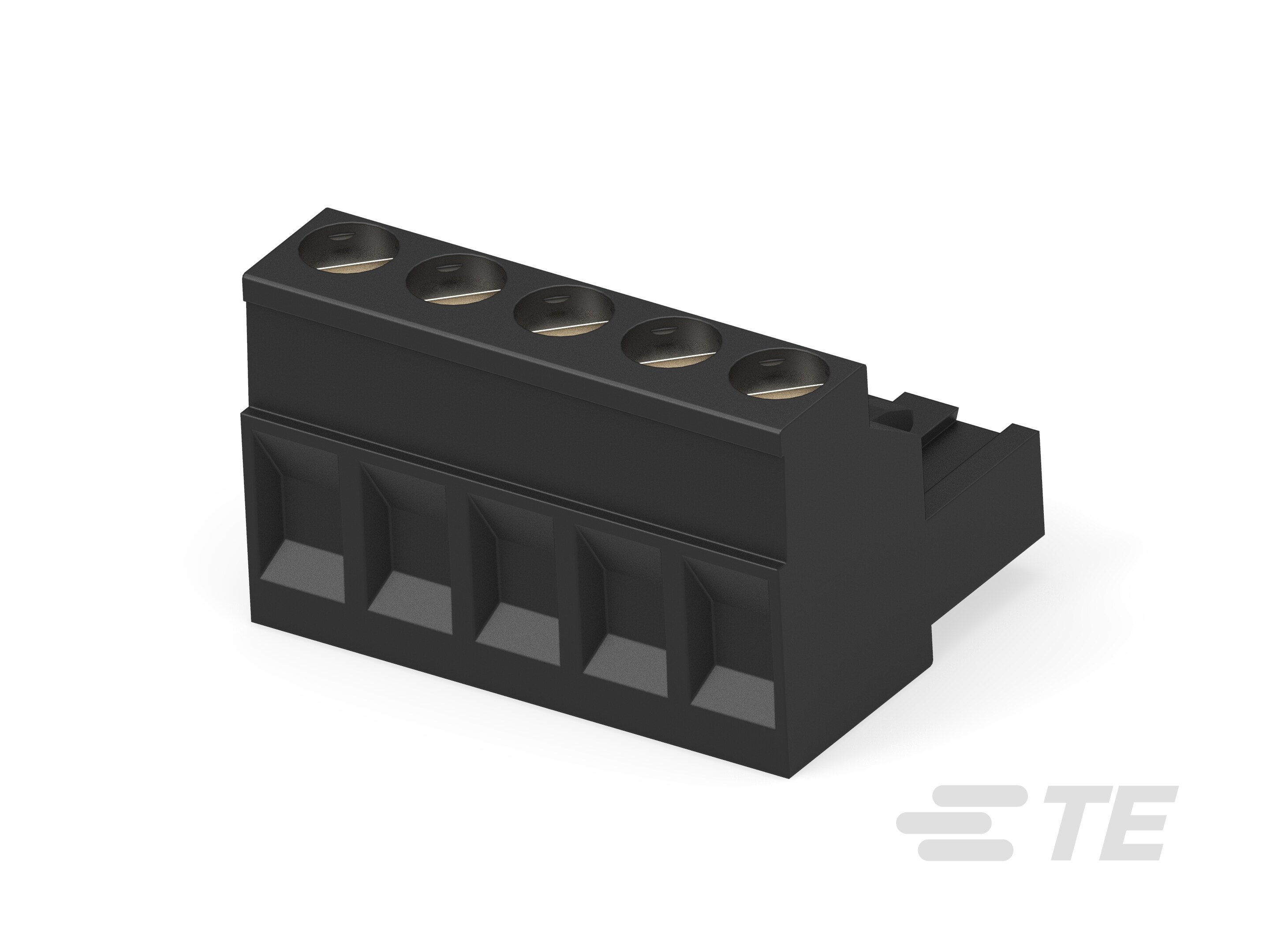

TE Connectivity AMP Connectors 796635-5	0.61 in	15.49 mm	7 Lb-In	0.79 Nm	UL94 V-0	7.5 mm	6 mm	Phosphor Bronze	M3	30 AWG	12 AWG	3 mm²	0.05 mm²	Screw - Rising Cage Clamp	5.08 mm	0.2 in	Free Hanging (In-Line)		Plug Female Sockets	Tin	Black	300 V	5	-40 C	110 °C	1	180 °	3 mm˛	0.05 mm˛	5

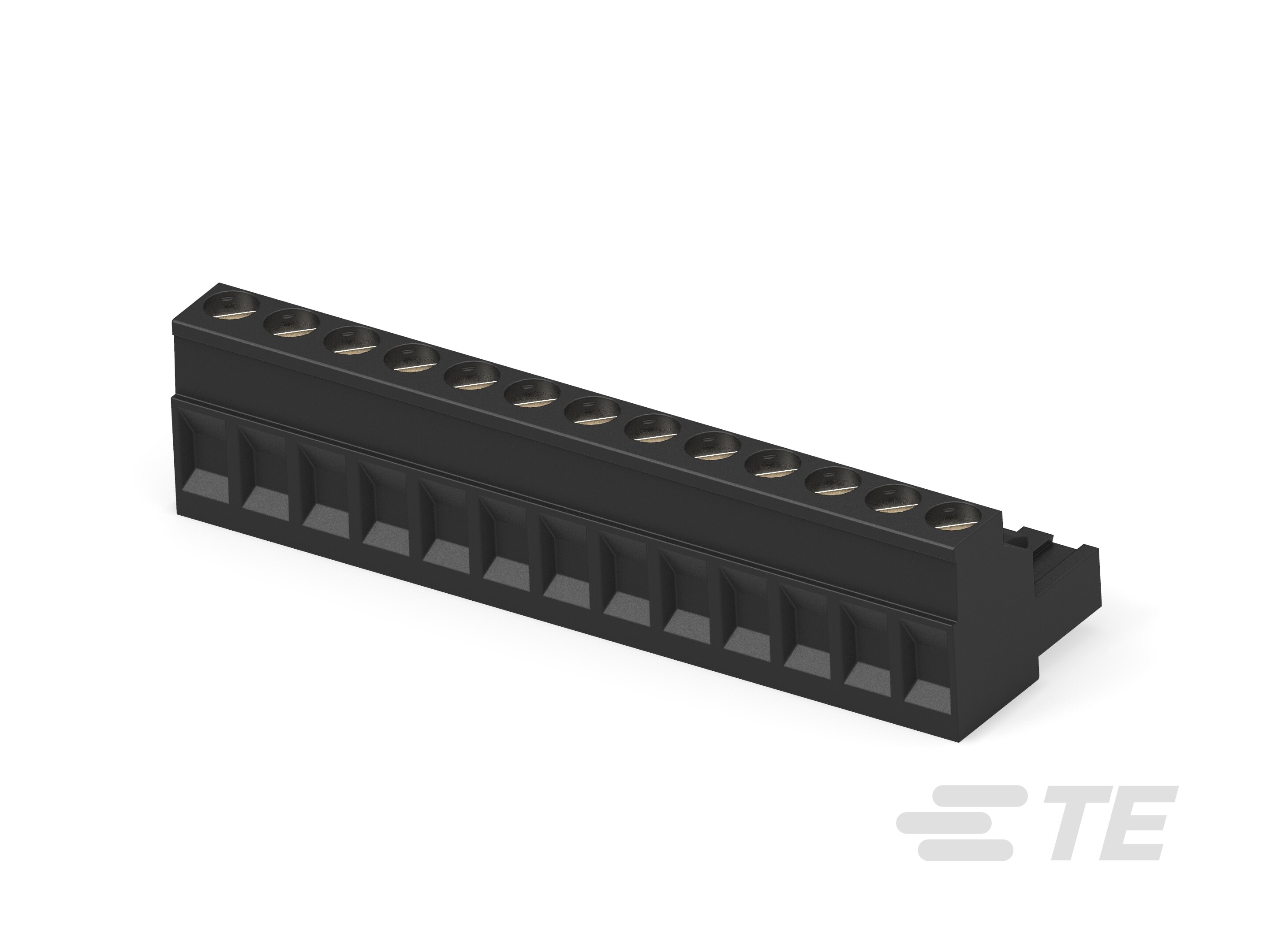

TE Connectivity AMP Connectors 1-796635-3	0.61 in	15.49 mm	7 Lb-In	0.79 Nm	UL94 V-0	7.5 mm	6 mm	Phosphor Bronze	M3	30 AWG	12 AWG	3 mm²	0.05 mm²	Screw - Rising Cage Clamp	5.08 mm	0.2 in	Free Hanging (In-Line)		Plug Female Sockets	Tin	Black	300 V	13	-40 C	110 °C	1	180 °			13
TE Connectivity AMP Connectors 1-796635-1	0.61 in	15.49 mm	7 Lb-In	0.79 Nm	UL94 V-0	7.5 mm	6 mm	Phosphor Bronze	M3	30 AWG	12 AWG	3 mm²	0.05 mm²	Screw - Rising Cage Clamp	5.08 mm	0.2 in	Free Hanging (In-Line)		Plug Female Sockets	Tin	Black	300 V	11	-40 C	110 °C	1	180 °			11
