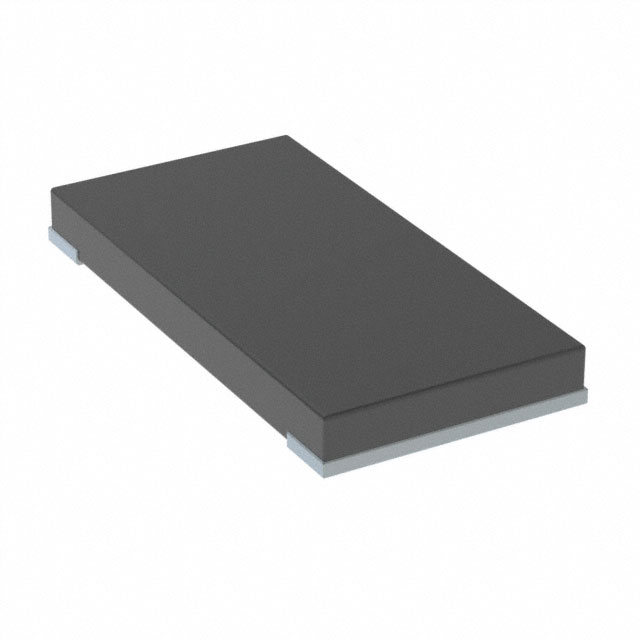

TLRH3A Series

Manufacturer: KOA Speer Electronics, Inc.

Catalog

RES 0.056 OHM 1% 2W 2512

Part	Ratings	Package / Case	Number of Terminations [custom]	Features	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Composition	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Supplier Device Package	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Resistance	Temperature Coefficient	Power (Watts)
KOA Speer Electronics, Inc. TLRH3AWTTE56L0F	AEC-Q200	2512 2512 (6432 Metric)	2	Automotive AEC-Q200 Current Sense	0.7 mm	0.028 "	Metal Element	3.2 mm	6.3 mm	0.126 in	0.248 in	2512	6332 Metric	-65 ░C	170 °C	1 %	56 mOhms	50 ppm/░C	2 W
KOA Speer Electronics, Inc. TLRH3AWTTE50L0F	AEC-Q200	2512 (6432 Metric)	2	Automotive AEC-Q200 Current Sense	0.7 mm	0.028 "	Metal Element	3.2 mm	6.3 mm	0.126 in	0.248 in	2512		-65 ░C	170 °C	1 %	0.05 Ohms	50 ppm/░C	2 W
KOA Speer Electronics, Inc. TLRH3APTTE50L0F	AEC-Q200	2512 2512 (6432 Metric)	2	Automotive AEC-Q200 Current Sense	0.7 mm	0.028 "	Metal Element	3.2 mm	6.3 mm	0.126 in	0.248 in	2512	6332 Metric	-65 ░C	170 °C	1 %	0.05 Ohms	50 ppm/░C	4 W
KOA Speer Electronics, Inc. TLRH3APTTE40L0F	AEC-Q200	2512 2512 (6432 Metric)	2	Automotive AEC-Q200 Current Sense	0.7 mm	0.028 "	Metal Element	3.2 mm	6.3 mm	0.126 in	0.248 in	2512	6332 Metric	-65 ░C	170 °C	1 %		50 ppm/░C	4 W
KOA Speer Electronics, Inc. TLRH3AWTTER180F	AEC-Q200	2512 2512 (6432 Metric)	2	Automotive AEC-Q200 Current Sense	0.7 mm	0.028 "	Metal Element	3.2 mm	6.3 mm	0.126 in	0.248 in	2512	6332 Metric	-65 ░C	170 °C	1 %	0.18 Ohms	50 ppm/░C	2 W
KOA Speer Electronics, Inc. TLRH3AWTTE15L0F	AEC-Q200	2512 (6432 Metric)	2	Automotive AEC-Q200 Current Sense	0.7 mm	0.028 "	Metal Element	3.2 mm	6.3 mm	0.126 in	0.248 in	2512		-65 ░C	170 °C	1 %	15 mOhms	75 ppm/°C	2 W
KOA Speer Electronics, Inc. TLRH3APTTE20L0F	AEC-Q200	2512 2512 (6432 Metric)	2	Automotive AEC-Q200 Current Sense	0.7 mm	0.028 "	Metal Element	3.2 mm	6.3 mm	0.126 in	0.248 in	2512	6332 Metric	-65 ░C	170 °C	1 %	0.02 Ohms	50 ppm/░C	5 W
KOA Speer Electronics, Inc. TLRH3AWTTE12L0F	AEC-Q200	2512 (6432 Metric)	2	Automotive AEC-Q200 Current Sense	0.7 mm	0.028 "	Metal Element	3.2 mm	6.3 mm	0.126 in	0.248 in	2512		-65 ░C	170 °C	1 %	12 mOhms	75 ppm/°C	2 W
KOA Speer Electronics, Inc. TLRH3APTTE25L0F	AEC-Q200	2512 2512 (6432 Metric)	2	Automotive AEC-Q200 Current Sense	0.7 mm	0.028 "	Metal Element	3.2 mm	6.3 mm	0.126 in	0.248 in	2512	6332 Metric	-65 ░C	170 °C	1 %	25 mOhms	50 ppm/░C	5 W
