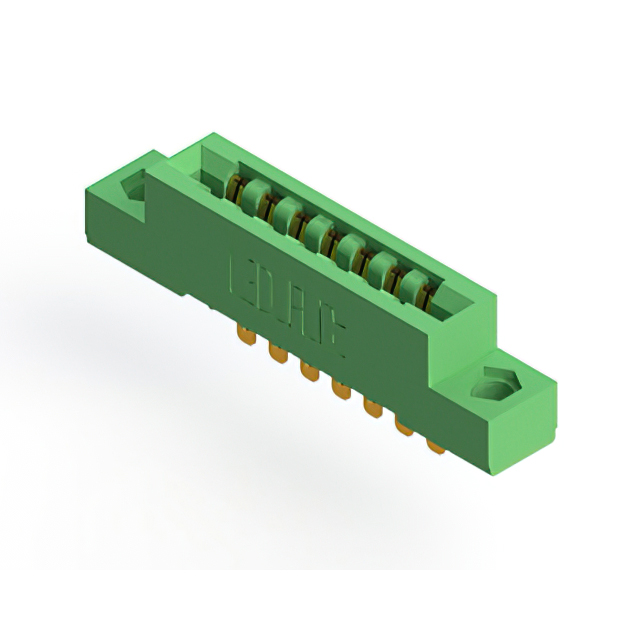

307-007 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE DUAL FMALE 14POS 0.156
| Part | Material - Insulation | Termination Rows | Gender | Read Out | Contact Material | Card Thickness [Max] | Card Thickness [Min] | Contact Type | Contact Finish | Number of Positions | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Mounting Type | Number of Positions/Bay/Row | Color | Card Type | Contact Finish Thickness | Contact Finish Thickness | Termination | Number of Rows [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Pitch | Pitch | Features | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 1 | Female | Dual | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Semi Bellows | Gold | 14 | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | Through Hole | 7 | Green | Non Specified - Dual Edge | 0.25 Ám | 10 Áin | Solder Eyelet(s) | 2 | -40 C | 105 ░C | 3.96 mm | 0.156 in | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | Female | Dual | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Semi Bellows | Gold | 14 | 4-40 Flush Mount Threaded Insert Top Opening | Through Hole | 7 | Green | Non Specified - Dual Edge | 0.25 Ám | 10 Áin | Solder Eyelet(s) | 2 | -40 C | 105 ░C | 3.96 mm | 0.156 in | Card Guides | |||
 EDAC Inc. | Polyester Thermoplastic | 1 | Female | Single | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Semi Bellows | Tin | 7 | 4-40 Flush Mount Threaded Insert Top Opening | Through Hole | 7 | Green | Non Specified - Single Edge | Wire Wrap | -40 C | 105 ░C | 3.96 mm | 0.156 in | Card Guides | 1 | |||||
 EDAC Inc. | Polyester Thermoplastic | 1 | Female | Single | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Semi Bellows | Tin | 7 | 4-40 Flush Mount Threaded Insert Top Opening | Through Hole | 7 | Green | Non Specified - Single Edge | Wire Wrap | -40 C | 105 ░C | 3.96 mm | 0.156 in | 1 | ||||||
 EDAC Inc. | Polyester Thermoplastic | 1 | Female | Dual | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Semi Bellows | Tin | 14 | 4-40 Flush Mount Threaded Insert Top Opening | Through Hole | 7 | Green | Non Specified - Dual Edge | Solder Eyelet(s) | 2 | -40 C | 105 ░C | 3.96 mm | 0.156 in | ||||||
 EDAC Inc. | Polyester Thermoplastic | 1 | Female | Single | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Semi Bellows | Tin | 7 | Through Hole | 7 | Green | Non Specified - Single Edge | Wire Wrap | -40 C | 105 ░C | 3.96 mm | 0.156 in | 1 | |||||||
 EDAC Inc. | Polyester Thermoplastic | 1 | Female | Dual | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Semi Bellows | Tin | 14 | 4-40 Flush Mount Threaded Insert Top Opening | Through Hole | 7 | Green | Non Specified - Dual Edge | Solder Eyelet(s) | 2 | -40 C | 105 ░C | 3.96 mm | 0.156 in | Card Guides | |||||
 EDAC Inc. | Polyester Thermoplastic | 1 | Female | Single | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Semi Bellows | Gold | 7 | Flush Mount M3 Threaded Insert Top Opening | Right Angle Through Hole | 7 | Green | Non Specified - Single Edge | 0.25 Ám | 10 Áin | Solder | -40 C | 105 ░C | 3.96 mm | 0.156 in | 1 | ||||
 EDAC Inc. | Polyester Thermoplastic | 1 | Female | Dual | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Semi Bellows | Gold | 14 | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | Right Angle Through Hole | 7 | Green | Non Specified - Dual Edge | 0.25 Ám | 10 Áin | Solder | 2 | -40 C | 105 ░C | 3.96 mm | 0.156 in | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | Female | Single | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Semi Bellows | Tin | 7 | Flush Mount M3 Threaded Insert Top Opening | Right Angle Through Hole | 7 | Green | Non Specified - Single Edge | Solder | -40 C | 105 ░C | 3.96 mm | 0.156 in | 1 |
