74HC4020 Series

Catalog

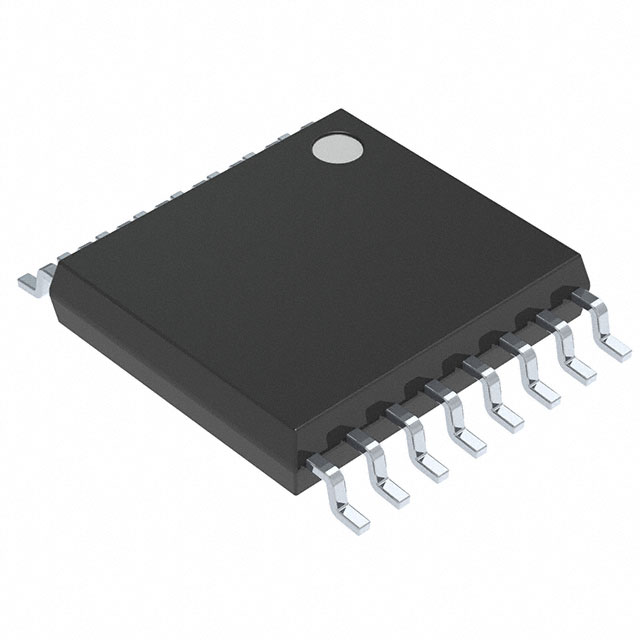

IC BINARY COUNTER 14-BIT 16SOIC

Part	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Logic Type	Package / Case	Package / Case [x]	Package / Case [y]	Mounting Type	Number of Bits per Element [custom]	Voltage - Supply [Min]	Voltage - Supply [Max]	Count Rate	Number of Elements	Direction	Trigger Type	Reset	Package / Case	Package / Case	Grade	Qualification
ON Semiconductor MC74HC4020AD	-55 °C	125 °C	16-SOIC	Binary Counter	16-SOIC	0.154 in	3.9 mm	Surface Mount	14	2 V	6 V	50 MHz	1	Up	Negative Edge	Asynchronous
ON Semiconductor NLVHC4020ADTR2G	-55 °C	125 °C	16-TSSOP	Binary Counter	16-TSSOP	0.173 in	4.4 mm	Surface Mount	14	2 V	6 V	50 MHz	1	Up	Negative Edge	Asynchronous
ON Semiconductor MM74HC4020M	-40 °C	85 °C	16-PDIP	Binary Counter	16-DIP			Through Hole	14	2 V	6 V	50 MHz	1	Up	Negative Edge	Asynchronous	0.3 in	7.62 mm
ON Semiconductor MC74HC4020AFL1	-55 °C	125 °C	16-SOEIAJ	Binary Counter	16-SOIC			Surface Mount	14	2 V	6 V	50 MHz	1	Up	Negative Edge	Asynchronous	0.209 "	5.3 mm
ON Semiconductor NLVHC4020ADTR2	-55 °C	125 °C	16-TSSOP	Binary Counter	16-TSSOP	0.173 in	4.4 mm	Surface Mount	14	2 V	6 V	50 MHz	1	Up	Negative Edge	Asynchronous
ON Semiconductor NLV74HC4020ADTR2G	-55 °C	125 °C	16-TSSOP	Binary Counter	16-TSSOP	0.173 in	4.4 mm	Surface Mount	14	2 V	6 V	50 MHz	1	Up	Negative Edge	Asynchronous			Automotive	AEC-Q100
ON Semiconductor MC74HC4020AFELG	-55 °C	125 °C	16-SOEIAJ	Binary Counter	16-SOIC			Surface Mount	14	2 V	6 V	50 MHz	1	Up	Negative Edge	Asynchronous	0.209 "	5.3 mm
ON Semiconductor MC74HC4020ADT	-55 °C	125 °C	16-TSSOP	Binary Counter	16-TSSOP	0.173 in	4.4 mm	Surface Mount	14	2 V	6 V	50 MHz	1	Up	Negative Edge	Asynchronous
ON Semiconductor MM74HC4020MX	-40 °C	85 °C	16-PDIP	Binary Counter	16-DIP			Through Hole	14	2 V	6 V	50 MHz	1	Up	Negative Edge	Asynchronous	0.3 in	7.62 mm
ON Semiconductor MM74HC4020N	-40 °C	85 °C	16-PDIP	Binary Counter	16-DIP			Through Hole	14	2 V	6 V	50 MHz	1	Up	Negative Edge	Asynchronous	0.3 in	7.62 mm
