002247 Series

Manufacturer: Molex

Catalog

CONN HEADER VERT 2POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Applications	Insulation Color	Contact Length - Mating	Contact Length - Mating	Insulation Height [z]	Insulation Height [z]	Contact Type	Contact Shape	Number of Rows	Style	Contact Finish - Post	Insulation Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Number of Positions Loaded	Overall Contact Length	Overall Contact Length	Number of Positions	Fastening Type	Mounting Type	Shrouding	Contact Length - Post [custom]	Contact Length - Post [custom]	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Termination

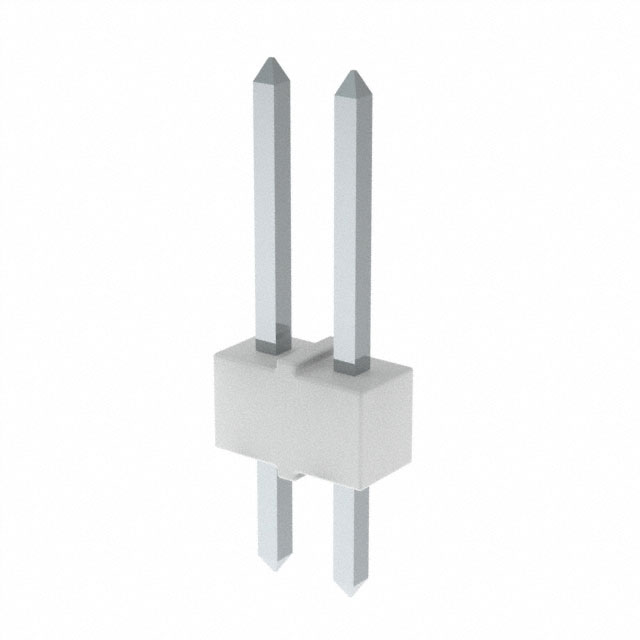

Molex 0022474023	1.52 µm	60 µin	Automotive General Purpose Medical Telecommunications	White	7.49 mm	0.295 in	0.13 in	3.3 mm	Male Pin	Square	1	Board to Board Cable	Tin	Nylon Polyamide (PA)	60 µin	1.52 Ám	Header	All	0.56 in	14.22 mm	2	Push-Pull	Through Hole	Unshrouded	0.135 in	3.43 mm	UL94 V-0	0.1 "	2.54 mm	Solder

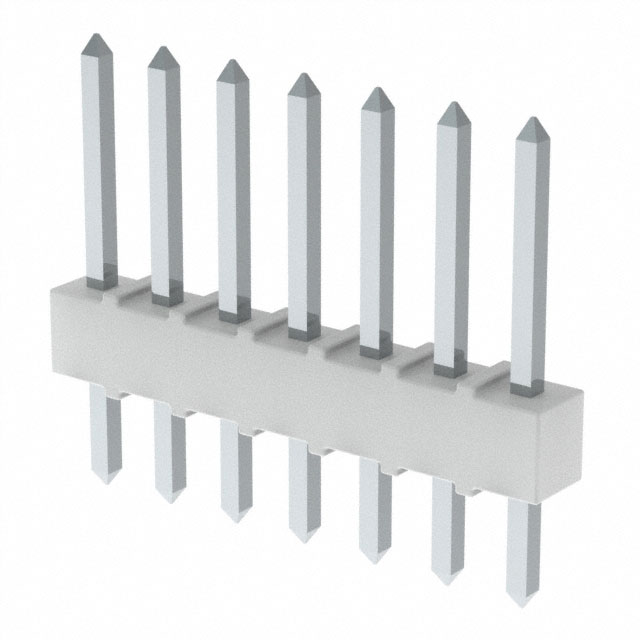

Molex 0022474073	1.52 µm	60 µin	Automotive General Purpose Medical Telecommunications	White	7.49 mm	0.295 in	0.13 in	3.3 mm	Male Pin	Square	1	Board to Board Cable	Tin	Nylon Polyamide (PA)	60 µin	1.52 Ám	Header	All	0.56 in	14.22 mm	7	Push-Pull	Through Hole	Unshrouded	0.135 in	3.43 mm	UL94 V-0	0.1 "	2.54 mm	Solder

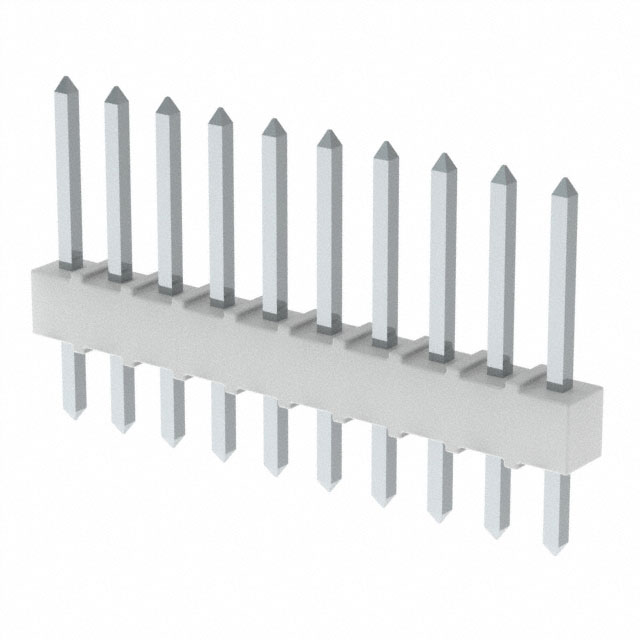

Molex 0022474103	1.52 µm	60 µin	Automotive General Purpose Medical Telecommunications	White	7.49 mm	0.295 in	0.13 in	3.3 mm	Male Pin	Square	1	Board to Board Cable	Tin	Nylon Polyamide (PA)	60 µin	1.52 Ám	Header	All	0.56 in	14.22 mm	10	Push-Pull	Through Hole	Unshrouded	0.135 in	3.43 mm	UL94 V-0	0.1 "	2.54 mm	Solder

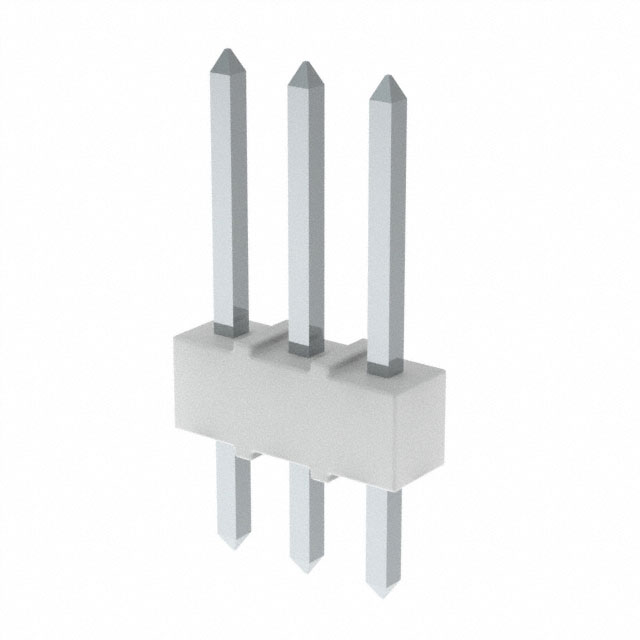

Molex 0022474033	1.52 µm	60 µin	Automotive General Purpose Medical Telecommunications	White	7.49 mm	0.295 in	0.13 in	3.3 mm	Male Pin	Square	1	Board to Board Cable	Tin	Nylon Polyamide (PA)	60 µin	1.52 Ám	Header	All	0.56 in	14.22 mm		Push-Pull	Through Hole	Unshrouded	0.135 in	3.43 mm	UL94 V-0	0.1 "	2.54 mm	Solder
