MPM3606 Series
Manufacturer: Monolithic Power Systems Inc.
Beta
⌘K
DC/DC SWITCHING REGULATOR, ADJUSTABLE, SYNCHRONOUS BUCK (STEP DOWN), SINGLE OUTPUT, 800MV TO 18.48V,… MORE
| Part | Current - Output (Max) [Max] | Voltage - Input (Min) [Min] | Supplier Device Package | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Type | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Voltage - Input (Max) [Max] | Number of Outputs | Features | Voltage - Output 1 [Min] | Voltage - Output 1 [Max] | Package / Case | Applications | Control Features | Voltage - Output 1 [Min] [custom] | Voltage - Output 1 [Max] [custom] | Outputs and Type | Outputs and Type | Supplied Contents | Board Type | Voltage - Output | Utilized IC / Part | Current - Output | Frequency - Switching | Main Purpose | Contents | Regulator Topology | Voltage - Input [Min] | Voltage - Input [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Monolithic Power Systems Inc. | 600 mA | 4.5 V | 20-QFN (3x5) | 125 °C | -40 C | Surface Mount | Non-Isolated PoL Module | 0.06 " | 0.12 in | 3 mm | 5 mm | 0.2 in | 1.6 mm | 21 V | 1 | OCP OTP UVLO | 0.8 V | 18.48 V | 20-PowerLFQFN Module | ITE (Commercial) | Active High Enable | |||||||||||||||
Monolithic Power Systems Inc. | 600 mA | 4.5 V | 20-QFN (3x5) | 125 °C | -40 C | Surface Mount | Non-Isolated PoL Module | 0.06 " | 0.12 in | 3 mm | 5 mm | 0.2 in | 1.6 mm | 21 V | 1 | OCP OTP UVLO | 20-PowerLFQFN Module | ITE (Commercial) | Active High Enable | 0.8 V | 5.5 V | |||||||||||||||

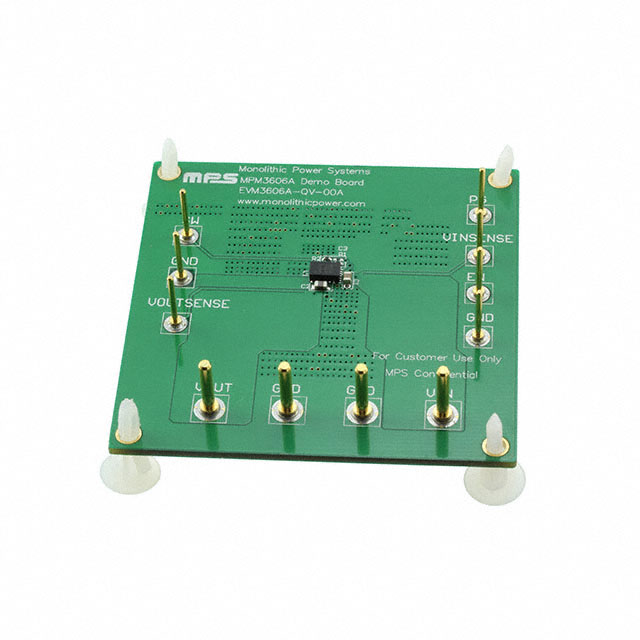

 Monolithic Power Systems Inc. | 1 | 1 Non-Isolated Output Non-Isolated | Board(s) | Fully Populated | 3.3 V | MPM3606A | 600 mA | 2 MHz | DC/DC Step Down | Board(s) | Buck | 4.5 V | 21 V | |||||||||||||||||||||||
Monolithic Power Systems Inc. | 600 mA | 4.5 V | 20-QFN (3x5) | 125 °C | -40 C | Surface Mount | Non-Isolated PoL Module | 0.06 " | 0.12 in | 3 mm | 5 mm | 0.2 in | 1.6 mm | 21 V | 1 | OCP OTP UVLO | 20-PowerLFQFN Module | ITE (Commercial) | Active High Enable | 0.8 V | 5.5 V | |||||||||||||||
Monolithic Power Systems Inc. | 600 mA | 4.5 V | 20-QFN (3x5) | 125 °C | -40 C | Surface Mount | Non-Isolated PoL Module | 0.06 " | 0.12 in | 3 mm | 5 mm | 0.2 in | 1.6 mm | 21 V | 1 | OCP OTP UVLO | 0.8 V | 18.48 V | 20-PowerLFQFN Module | ITE (Commercial) | Active High Enable |
