45116 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

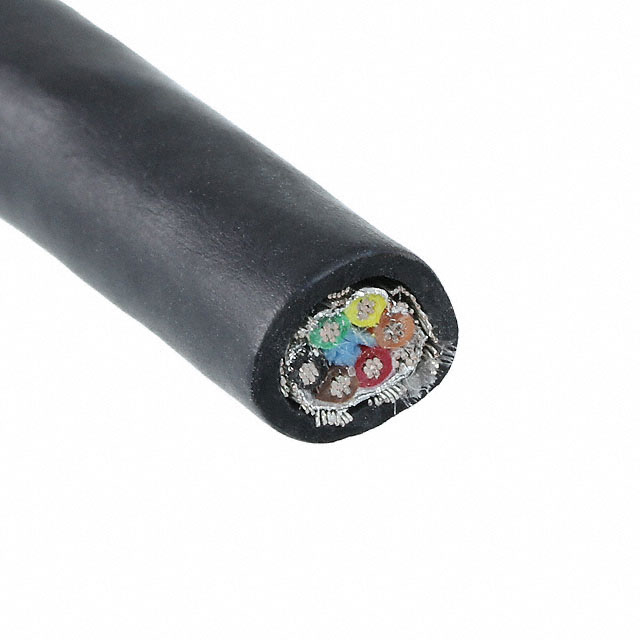

CABLE 6COND 24AWG BLK SHLD 100'
| Part | Shield Coverage | Shield Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Number of Conductors | Cable Type | Conductor Insulation | Conductor Insulation | Jacket Color | Voltage | Wire Gauge | Length [x] | Length [x] | Shield Type | Jacket (Insulation) Material | Conductor Material | Ratings | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Strand [custom] | Conductor Strand [custom] | Features | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | 7.24 mm | 0.285 " | 0.042 in | 1.067 mm | 6 | Multi-Conductor | TPE | Thermoplastic Elastomer | Black | 300 VDC | 24 AWG | 100 ft | 30.5 m | Braid Foil | Thermoplastic Elastomer (TPE) | Copper Tinned | ISO 10993 | 125 °C | -50 °C | 7 | 32 AWG | Biological Compatibility Drain Wire Rip Cord | ||
ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | 7.24 mm | 0.285 " | 0.042 in | 1.067 mm | 6 | Multi-Conductor | TPE | Thermoplastic Elastomer | Black | 300 VDC | 24 AWG | Braid Foil | Thermoplastic Elastomer (TPE) | Copper Tinned | ISO 10993 | 125 °C | -50 °C | 7 | 32 AWG | Biological Compatibility Drain Wire Rip Cord | 304.8 m | 1000 ft |
