QSB34 Series

Surface Mount Silicon Infrared PIN Photodiode

Catalog

Surface Mount Silicon Infrared PIN Photodiode

Part	Voltage - DC Reverse (Vr) (Max) [Max]	Viewing Angle	Package / Case	Current - Dark (Typ)	Wavelength	Operating Temperature [Min]	Operating Temperature [Max]	Spectral Range [Max] [x]	Spectral Range [Min] [x]	Response Time	Active Area	Diode Type	Mounting Type	Spectral Range [Min] [custom]	Spectral Range [Max] [custom]

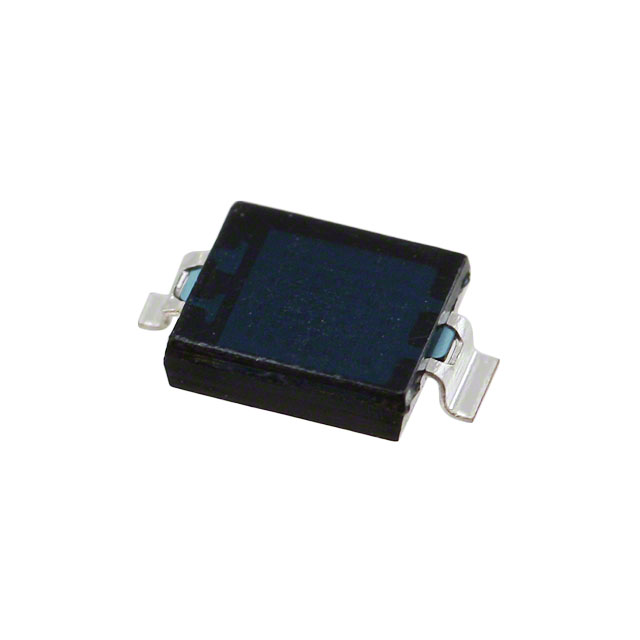

ON Semiconductor QSB34CZR	32 V	120 °	2-SMD Z-Bend	30 nA	940 nm	-25 °C	85 °C	1100 nm	400 nm	50 ns	6.5 mm˛	PIN	Surface Mount
ON Semiconductor QSB34	32 V	120 °	Axial	30 nA	940 nm	-25 °C	85 °C			50 ns	6.5 mm˛	PIN	Through Hole	730 nm	1100 nm

Catalog

Surface Mount Silicon Infrared PIN Photodiode

Key Features

• Daylight Filter (QSB34GR and QSB34ZR only)

• Surface Mount Packages: – QSB34GR / QSB34CGR for overmount board – QSB34ZR / QSB34CZR for undermount board

• Fast PIN Photodiode

• Wide Reception Angle, 120°

• Large Chip Size = 3 mm x 3 mm

• Sensitive Area - 2.55 mm x 2.55 mm

• High Sensitivity

• Low Capacitance

Description

The QSB34 is a fast PIN photodiode encapsulated in surface mount package. It is available in transparent package without daylight filter or in black package with daylight filter. Overmount and undermount option are available.
