GSM40A48 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K

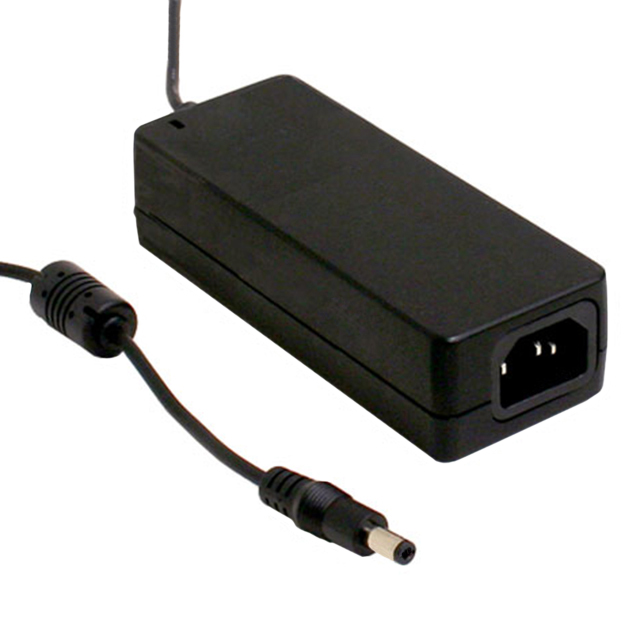

AC/DC DESKTOP ADAPTER 48V 40W
| Part | No Load Power Consumption | Region Utilized | Approval Agency | Form | Cord Length | Cord Length | Voltage - Output | Applications | Input Connector | Operating Temperature [Min] | Operating Temperature [Max] | Polarization | Efficiency | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Current - Output (Max) [Max] | Power (Watts) | Voltage - Input [Min] | Voltage - Input [Max] | Input Type | Output Connector [x] | Output Connector [diameter] | Output Connector |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | 100 mW | International | CB CE cURus TUV | Desktop (Class I) | 1.5 m | 59 in | 48 V | Medical | IEC 320-C14 | -30 ░C | 70 °C | Positive Center | Level VI | 1.97 in | 1.24 " | 4.92 in | 50 mm | 125 mm | 31.5 mm | 840 mA | 40 W | 80 VAC | 264 VAC | Cord (Sold Separately) | 11 mm | 2.1 mm 5.5 mm | Barrel Plug |
