AIO-CS Series

Manufacturer: Amphenol Industrial Operations

Catalog

CABLE GLAND 10-14MM M22 POLYAMID

Part	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Thread Size	Type	Operating Temperature [Max]	Operating Temperature [Min]	Thread Length	Thread Length	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Material	Color	Includes	Ingress Protection	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Min)	Outside Cable Diameter (Max)

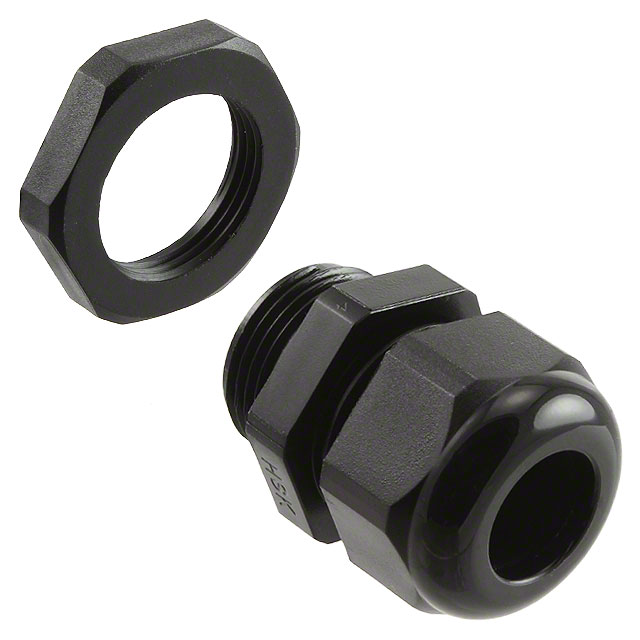

Amphenol Industrial Operations AIO-CSM22	0.394 in	10 mm	M22x1.5	Cable Gland	100 °C	-40 °C	10 mm	0.394 in	14 mm	0.551 "	Polyamide (PA) Nylon	Black	Panel Nut Sealing Nut	IP68 - Dust Tight Waterproof

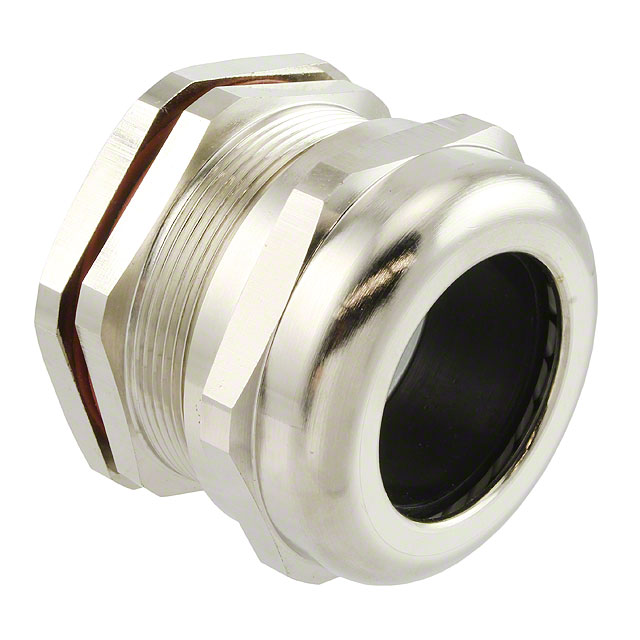

Amphenol Industrial Operations AIO-CSJPG36	0.866 in	22 mm	PG36	Cable Gland	100 °C	-40 °C	10 mm	0.394 in	32 mm	1.26 in	Brass	Silver	Panel Nut Sealing Nut	IP68 - Dust Tight Waterproof

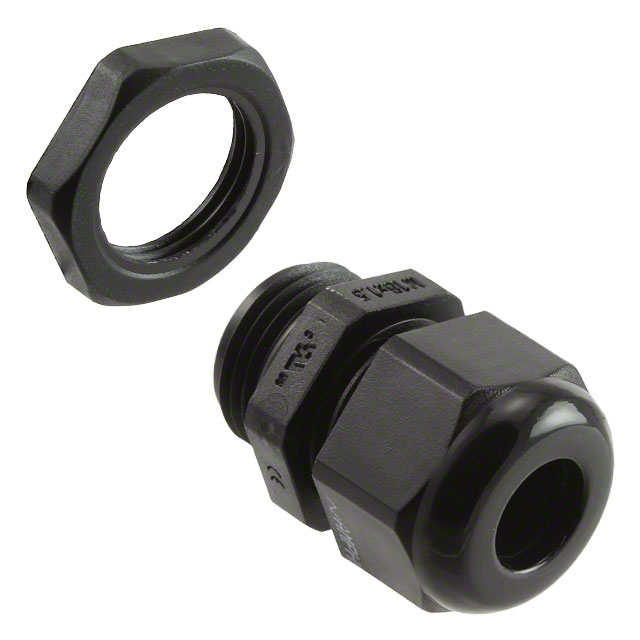

Amphenol Industrial Operations AIO-CSM18				Cable Gland	100 °C	-40 °C	9 mm	0.354 in			Polyamide (PA) Nylon	Black	Panel Nut Sealing Nut	IP68 - Dust Tight Waterproof	5 mm	0.197 in	0.394 "	10 mm

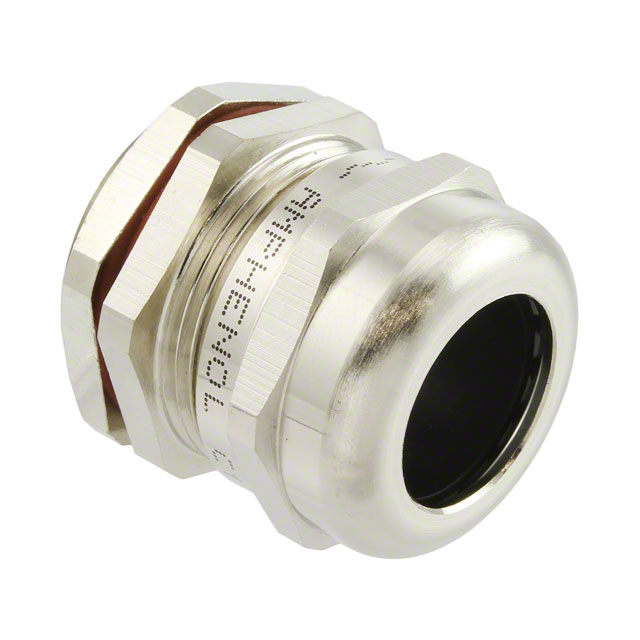

Amphenol Industrial Operations AIO-CSJM27	0.512 in		M27x2	Cable Gland	100 °C	-40 °C	8 mm	0.315 in			Brass	Silver	Panel Nut Sealing Nut	IP68 - Dust Tight Waterproof			0.709 in	18.01 mm	13 mm

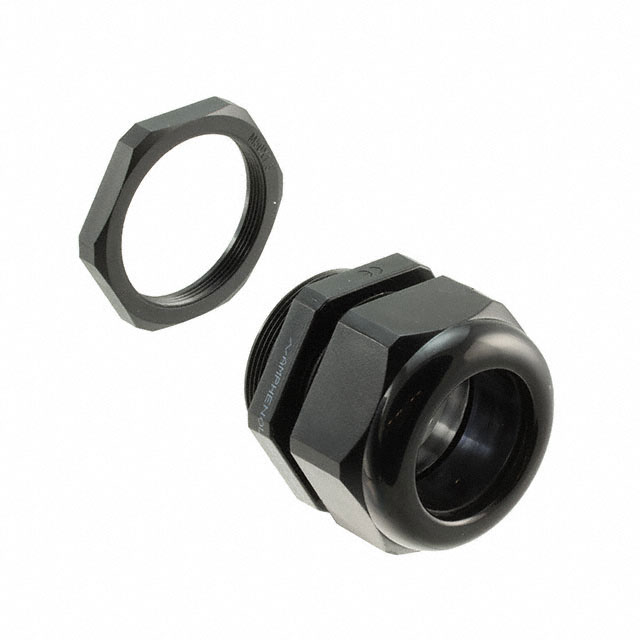

Amphenol Industrial Operations AIO-CSM50	1.26 "	32 mm	M50x1.5	Cable Gland	100 °C	-40 °C	14 mm	0.551 in			Polyamide (PA) Nylon	Black	Panel Nut Sealing Nut	IP68 - Dust Tight Waterproof			1.496 in	38 mm

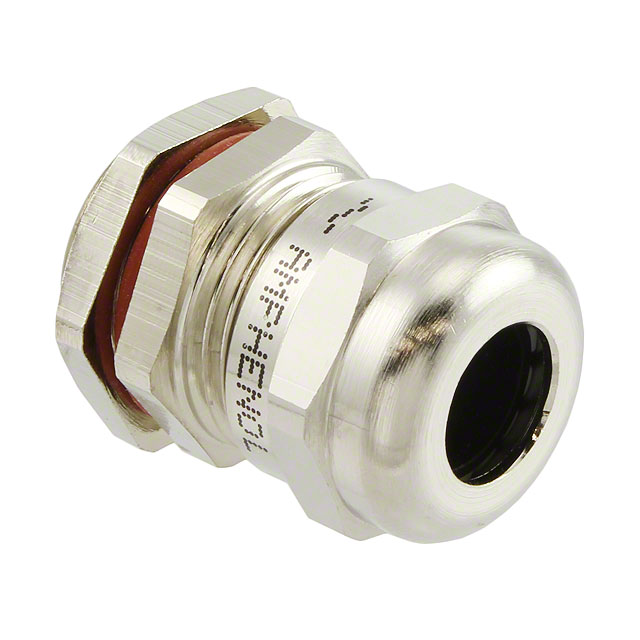

Amphenol Industrial Operations AIO-CSJPG11			PG11	Cable Gland	100 °C	-40 °C	7 mm	0.276 in			Brass	Silver	Panel Nut Sealing Nut	IP68 - Dust Tight Waterproof	5 mm	0.197 in	0.394 "	10 mm

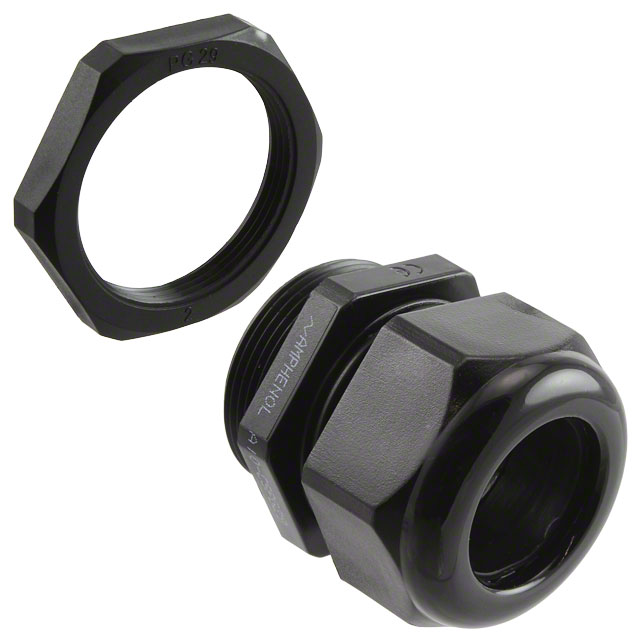

Amphenol Industrial Operations AIO-CSPG29	0.709 in	18.01 mm	PG29	Cable Gland	100 °C	-40 °C	11 mm	0.433 in			Polyamide (PA) Nylon		Panel Nut Sealing Nut	IP68 - Dust Tight Waterproof			0.984 in			25 mm

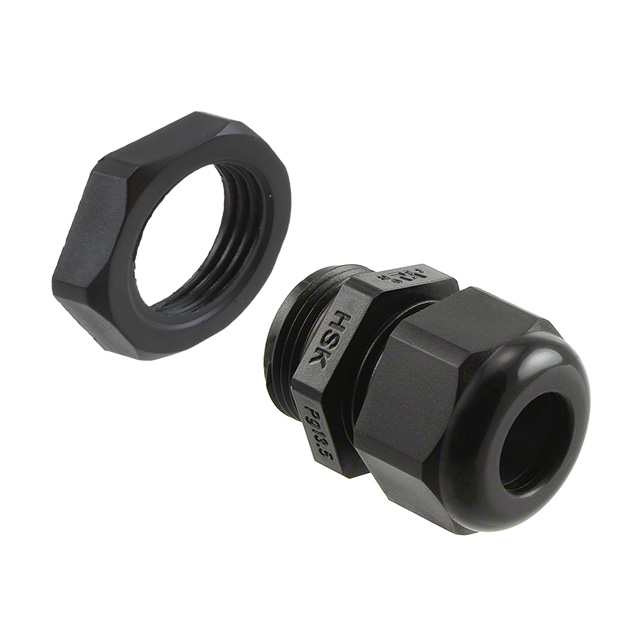

Amphenol Industrial Operations AIO-CSPG13	0.236 in	6 mm	PG13	Cable Gland	100 °C	-40 °C					Polyamide (PA) Nylon		Panel Nut Sealing Nut	IP68 - Dust Tight Waterproof			0.472 in	12 mm

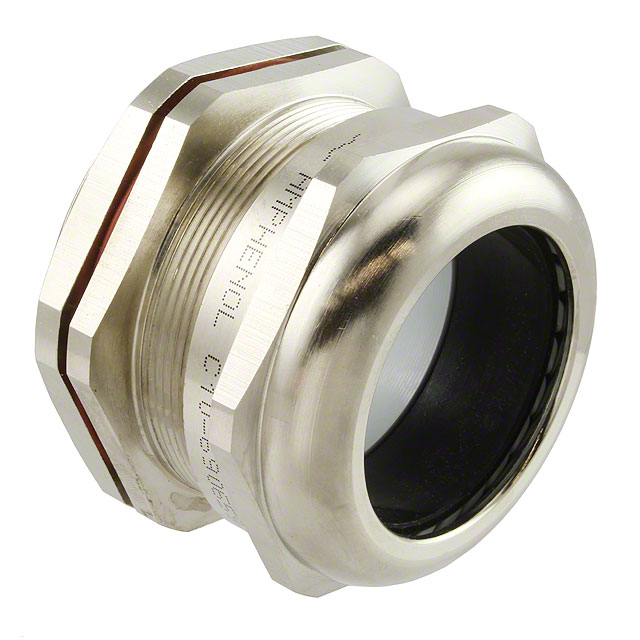

Amphenol Industrial Operations AIO-CSJM63	1.457 in	37 mm		Cable Gland	100 °C	-40 °C	12 mm	0.472 in	44 mm	1.732 in	Brass	Silver	Panel Nut Sealing Nut	IP68 - Dust Tight Waterproof
Amphenol Industrial Operations AIO-CSM24	0.394 in	10 mm	M24x1.5	Cable Gland	100 °C	-40 °C	10 mm	0.394 in	14 mm	0.551 "	Polyamide (PA) Nylon	Black	Panel Nut Sealing Nut	IP68 - Dust Tight Waterproof
