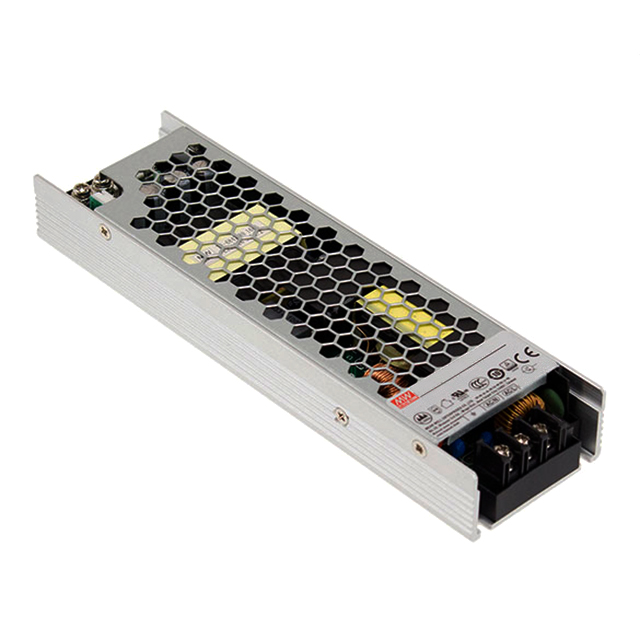

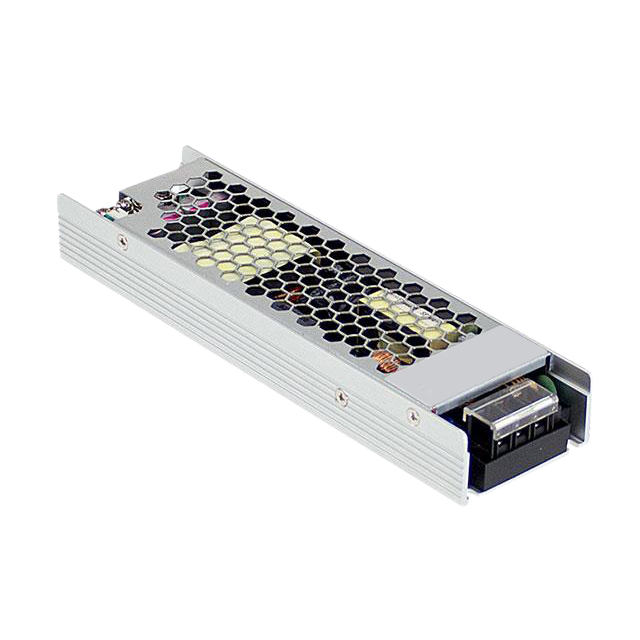

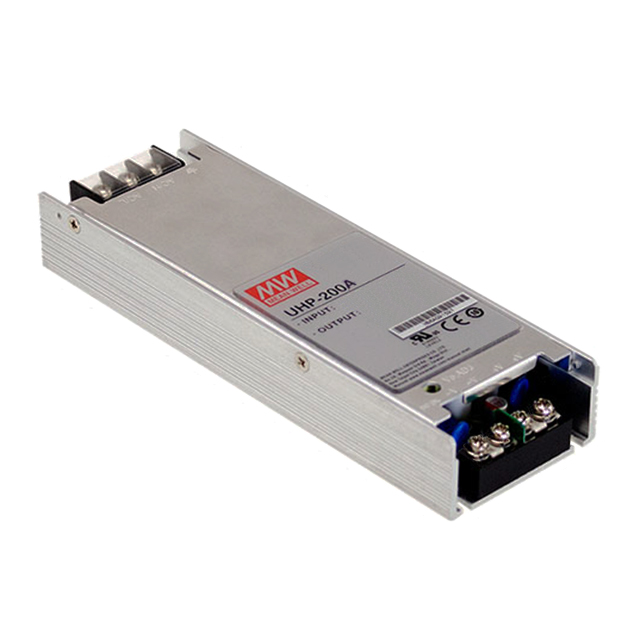

UHP-200 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
AC/DC CONVERTER 24V 202W
| Part | Voltage - Output 1 | Type | Efficiency | Power (Watts) | Applications | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Isolation | Voltage - Input [Max] | Voltage - Input [Min] | Mounting Type | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Current - Output 1 | Number of Outputs | Features | Approval Agency | Minimum Load Required | Voltage - Output 1 [custom] | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | 24 V | Enclosed | 94 % | 202 W | Household Appliances ITE (Commercial) | -30 °C | 70 °C | 3750 VDC | 264 VAC 370 VDC | 90 VAC 127 VDC | Chassis Mount | 7.64 in | 2.17 " | 1.02 " | 55 mm | 26 mm | 194 mm | 8.4 A | 1 | Adjustable Output PFC Universal Input | CB CCC CE cURus TUV | |||
 MEAN WELL USA Inc. | 5 V | Enclosed | 88.5 % | 200 Watts | ITE (Commercial) | -30 °C | 70 °C | 3000 V | 264 VAC 370 VDC | 90 VAC 127 VDC | Chassis Mount | 6.57 in | 2.17 " | 1.02 " | 55 mm | 26 mm | 167 mm | 40 A | 1 | Adjustable Output PFC Universal Input | CB CCC CE cURus TUV | |||
 MEAN WELL USA Inc. | 48 V | Enclosed | 94 % | 202 W | Household Appliances ITE (Commercial) | -30 °C | 70 °C | 3750 VDC | 264 VAC 370 VDC | 90 VAC 127 VDC | Chassis Mount | 7.64 in | 2.17 " | 1.02 " | 55 mm | 26 mm | 194 mm | 4.2 A | 1 | Adjustable Output PFC Universal Input | CB CCC CE cURus TUV | |||
MEAN WELL USA Inc. | Enclosed | 94 % | 202 W | Household Appliances ITE (Commercial) | -30 °C | 70 °C | 3750 VDC | 264 VAC 370 VDC | 90 VAC 127 VDC | Chassis Mount | 7.64 in | 2.17 " | 1.02 " | 55 mm | 26 mm | 194 mm | 5.6 A | 1 | Adjustable Output PFC Universal Input | CB CCC CE cURus TUV | 36 V | |||
MEAN WELL USA Inc. | 24 V | Enclosed | 94 % | 202 W | Household Appliances ITE (Commercial) | -30 °C | 70 °C | 3750 VDC | 264 VAC 370 VDC | 90 VAC 127 VDC | Chassis Mount | 7.64 in | 2.17 " | 1.02 " | 55 mm | 26 mm | 194 mm | 8.4 A | 1 | Adjustable Output PFC Universal Input | CB CCC CE cURus TUV | |||

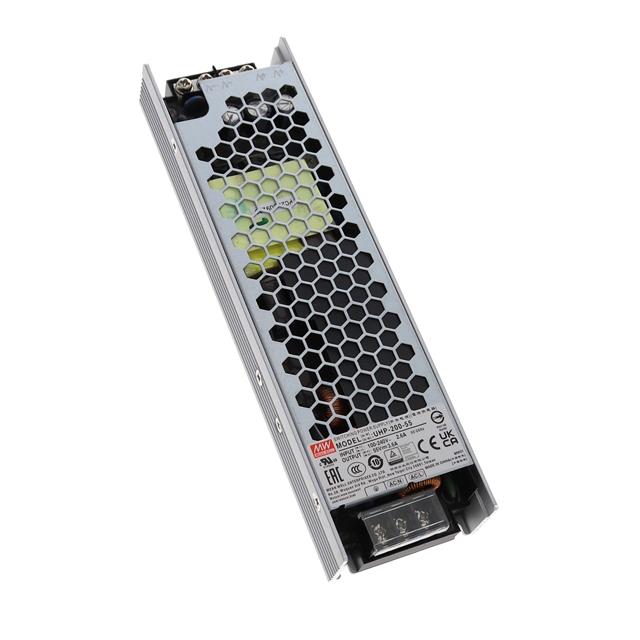

 MEAN WELL USA Inc. | 55 V | Enclosed | 94 % | 198 W | Household Appliances ITE (Commercial) | -30 °C | 70 °C | 3750 VDC | 264 VAC 370 VDC | 90 VAC 127 VDC | Chassis Mount | 7.64 in | 2.17 " | 1.02 " | 55 mm | 26 mm | 194 mm | 3.6 A | 1 | Adjustable Output PFC Universal Input | CB CCC CE cURus EAC TUV | 60335-1 62368-1 | ||
MEAN WELL USA Inc. | 4.5 V | Enclosed | 88 % | 180 W | ITE (Commercial) | -30 °C | 70 °C | 3000 V | 264 VAC 370 VDC | 90 VAC 127 VDC | Chassis Mount | 6.57 in | 2.17 " | 1.02 " | 55 mm | 26 mm | 167 mm | 40 A | 1 | Adjustable Output PFC Universal Input | CB CCC CE cURus TUV |
