IL-AG7-3 Series
Manufacturer: JAE Electronics
Beta
⌘K

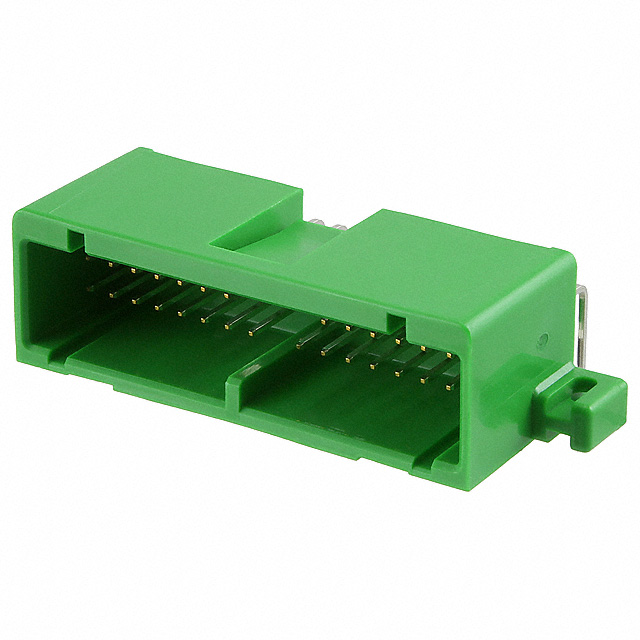

CONN HEADER R/A 30POS 2.5MM
| Part | Applications | Pitch - Mating | Pitch - Mating | Contact Length - Post | Contact Length - Post | Termination | Contact Type | Style | Insulation Color | Mounting Type | Insulation Material | Contact Shape | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions Loaded | Insulation Height [custom] | Insulation Height [custom] | Features | Contact Finish - Post | Contact Material | Fastening Type | Connector Type | Shrouding | Number of Positions | Number of Rows [custom] | Row Spacing - Mating | Row Spacing - Mating | Contact Length - Mating | Contact Length - Mating | Current Rating (Amps) | Insulation Height | Insulation Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JAE Electronics | Automotive | 2.5 mm | 0.098 in | 0.138 in | 3.5 mm | Solder | Male Pin | Board to Cable/Wire | Green | Right Angle Through Hole | Polybutylene Terephthalate (PBT) | Square | 85 °C | -40 C | All | 0.591 in | 15 mm | Mounting Flange | Tin | Brass | Push-Pull | Header | Shrouded - 4 Wall | 30 | 2 | 0.118 in | 3 mm | 0.331 in | 8.4 mm | 3 A | ||
 JAE Electronics | Automotive | 2.5 mm | 0.098 in | 0.138 in | 3.5 mm | Solder | Male Pin | Board to Cable/Wire | Green | Through Hole | Polybutylene Terephthalate (PBT) | Square | 85 °C | -40 C | All | Mounting Flange | Tin | Brass | Push-Pull | Header | Shrouded - 4 Wall | 30 | 2 | 0.118 in | 3 mm | 0.331 in | 8.4 mm | 3 A | 23.2 mm | 0.913 in | ||
JAE Electronics | Automotive | 2.5 mm | 0.098 in | 0.138 in | 3.5 mm | Solder | Male Pin | Board to Cable/Wire | Green | Through Hole | Polybutylene Terephthalate (PBT) | Square | 85 °C | -40 C | All | Tin | Brass | Push-Pull | Header | Shrouded - 4 Wall | 30 | 2 | 0.118 in | 3 mm | 0.331 in | 8.4 mm | 3 A |
