ALP22A Series

Manufacturer: KEMET

Catalog

CAP ALUMINUM LYTIC 10000UF 40V 20% (35 X 45MM) SOLDER PIN 18000H 85°C BAG

Part	Applications	Voltage - Rated	Polarization	Package / Case	Lead Spacing	Lead Spacing	Lifetime @ Temp.	Tolerance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Capacitance	Mounting Type	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension	Lead Spacing [x]	Lead Spacing [x]	Height - Seated (Max)
KEMET ALP22A103CB040	General Purpose	40 V	Polar	Radial Can - Solder Lug	15 mm	0.591 in	18000 Hrs	20 %	1.85 in	47 mm	85 °C	-40 C	10000 µF	Through Hole	1.378 "	35 mm
KEMET ALP22A102AB100	General Purpose	100 V	Polar	Radial Can - Solder Lug	10 mm	0.394 in	12000 Hrs	20 %	1.85 in	47 mm	85 °C	-40 C	1000 µF	Through Hole	0.984 "	25 mm

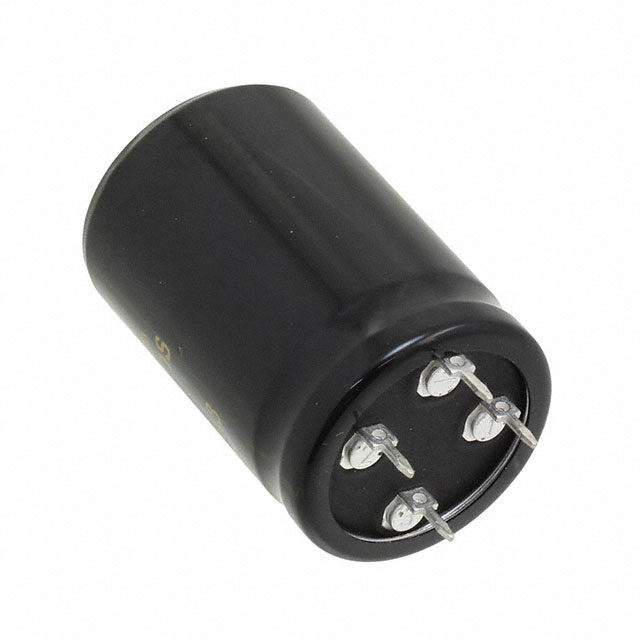

KEMET ALP22A472BB063	General Purpose	63 V	Polar	Radial Can - Snap-In - 4 Lead	10 mm	0.394 in	15000 Hrs	20 %	1.85 in	47 mm	85 °C	-40 C	4700 µF	Through Hole	1.181 "		30 mm
KEMET ALP22A103DF100	General Purpose	100 V	Polar	Radial Can - Solder Lug				20 %	4.213 in	107 mm	85 °C	-40 C	10000 µF	Through Hole	1.575 in	40 mm		0.787 in	20 mm
KEMET ALP22A472AB040	General Purpose	40 V	Polar	Radial Can - Solder Lug	10 mm	0.394 in	12000 Hrs	20 %	1.85 in	47 mm	85 °C	-40 C	4700 µF	Through Hole	0.984 "	25 mm
KEMET ALP22A153DE063	General Purpose	63 V	Polar	Radial Can - Snap-In - 5 Lead			26000 Hrs	20 %	3.031 in		85 °C	-40 C		Through Hole	1.575 in	40 mm		0.787 in	20 mm	77 mm

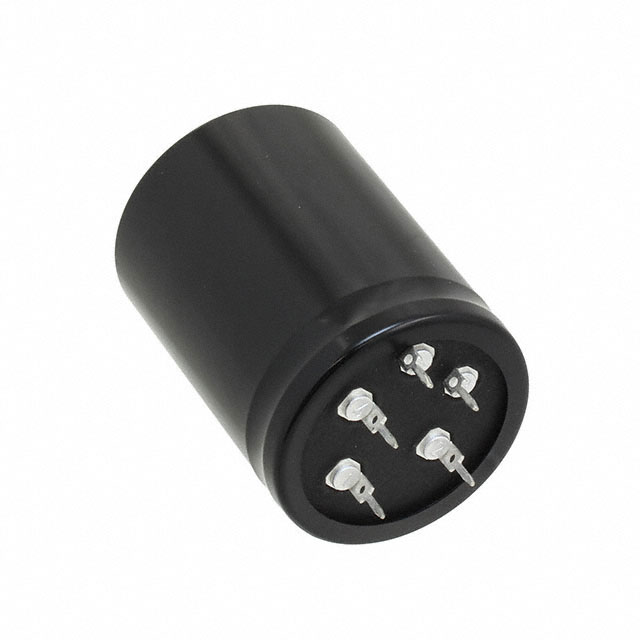

KEMET ALP22A223DD040	General Purpose	40 V	Polar	Radial Can - Snap-In - 5 Lead	10 mm	0.394 in	26000 Hrs	20 %	2.244 "	57 mm	85 °C	-40 C	22000 µF	Through Hole	1.575 in	40 mm
KEMET ALP22A102DD200	General Purpose	200 VDC	Polar	Radial Can - Solder Lug				20 %	2.244 "	57 mm	85 °C	-40 C	1000 µF	Through Hole	1.575 in	40 mm		0.787 in	20 mm
KEMET ALP22A472DD100	General Purpose	100 V	Polar	Radial Can - Solder Lug				20 %	2.244 "	57 mm	85 °C	-40 C	4700 µF	Through Hole	1.575 in	40 mm		0.787 in	20 mm
