MAX14850 Series
Manufacturer: Analog Devices Inc./Maxim Integrated
Beta
⌘K

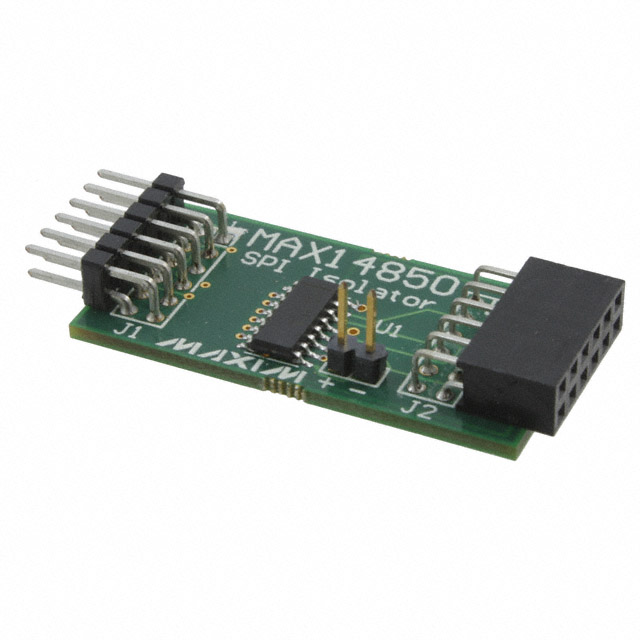

MODULE PERIPHERAL FOR MAX14850
| Part | Function | Type | Supplied Contents | Utilized IC / Part | Embedded | Data Rate | Supplier Device Package | Voltage - Supply [Max] | Voltage - Supply [Min] | Number of Channels [custom] | Isolated Power | Operating Temperature [Max] | Operating Temperature [Min] | Inputs - Side 1/Side 2 [y] | Inputs - Side 1/Side 2 [x] | Voltage - Isolation | Channel Type | Technology | Package / Case | Package / Case | Package / Case | Mounting Type | Common Mode Transient Immunity (Min) [Min] | Package / Case [x] | Package / Case [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Analog Devices Inc./Maxim Integrated | Digital Isolator | Interface | Board(s) | MAX14850 | |||||||||||||||||||||
 Analog Devices Inc./Maxim Integrated | General Purpose | 2 Mbps 50 Mbps | 16-QSOP | 5.5 V | 3 V | 6 | 125 °C | -40 °C | 4 | 4 | 600 Vrms | Bidirectional Unidirectional | Capacitive Coupling | 0.154 in | 16-SSOP | 3.9 mm | Surface Mount | 1.5 kV/µs | |||||||
 Analog Devices Inc./Maxim Integrated | General Purpose | 2 Mbps 50 Mbps | 16-SOIC | 5.5 V | 3 V | 6 | 125 °C | -40 °C | 4 | 4 | 600 Vrms | Bidirectional Unidirectional | Capacitive Coupling | 16-SOIC | Surface Mount | 1.5 kV/µs | 0.154 in | 3.9 mm |
