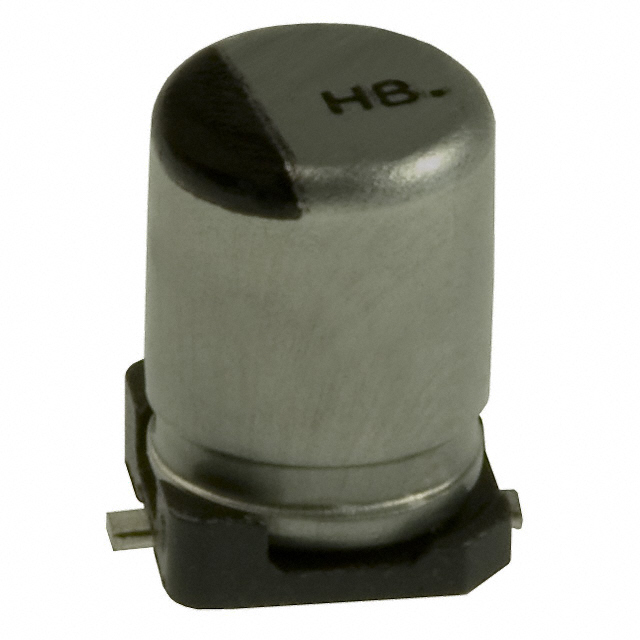

EEE-HB Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

CAP ALUM 2.2UF 20% 50V SMD

Part	Tolerance	Ripple Current @ Low Frequency	Voltage - Rated	Ripple Current @ High Frequency	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Ratings	Lifetime @ Temp.	Capacitance	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Applications	Size / Dimension [diameter]	Size / Dimension [diameter]	Package / Case	Polarization
Panasonic Industrial Automation Sales EEE-HB1H2R2R	20 %	16 mA	50 VDC	27.2 mA	4.3 mm	0.169 "	0.169 in	4.3 mm	5.8 mm	0.228 "	AEC-Q200	2000 Hrs	2.2 µF	-40 °C	105 ░C	Surface Mount	Automotive	4 mm	0.157 in	Radial Can - SMD	Polar
Panasonic Industrial Automation Sales EEE-HB0J221AP	20 %	150 mA	6.3 V	255 mA	8.3 mm	0.327 in	0.327 "	8.3 mm	10.2 mm	0.402 "	AEC-Q200	2000 Hrs	220 µF	-40 °C	105 ░C	Surface Mount	Automotive	8 mm	0.315 "	Radial Can - SMD	Polar
Panasonic Industrial Automation Sales EEE-HB1E330P	20 %	65 mA	25 VDC	110.5 mA	6.6 mm	0.26 in	0.26 in	6.6 mm	5.8 mm	0.228 "	AEC-Q200	2000 Hrs	33 ÁF	-40 °C	105 ░C	Surface Mount	Automotive	6.3 mm	0.248 in	Radial Can - SMD	Polar
Panasonic Industrial Automation Sales EEE-HB1H330AP	20 %	91 mA	50 VDC	154.7 mA	8.3 mm	0.327 in	0.327 "	8.3 mm	10.2 mm	0.402 "	AEC-Q200	2000 Hrs	33 ÁF	-40 °C	105 ░C	Surface Mount	Automotive	8 mm	0.315 "	Radial Can - SMD	Polar
Panasonic Industrial Automation Sales EEE-HB1HR10R	20 %	1 mA	50 VDC	1.7 mA	4.3 mm	0.169 "	0.169 in	4.3 mm	5.8 mm	0.228 "	AEC-Q200	2000 Hrs	100000 pF	-40 °C	105 ░C	Surface Mount	Automotive	4 mm	0.157 in	Radial Can - SMD	Polar
Panasonic Industrial Automation Sales EEE-HB1V100R	20 %	28 mA	35 V	47.6 mA	5.3 mm	0.209 in	0.209 in	5.3 mm	5.8 mm	0.228 "	AEC-Q200	2000 Hrs	10 µF	-40 °C	105 ░C	Surface Mount	Automotive	5 mm	0.197 "	Radial Can - SMD	Polar
Panasonic Industrial Automation Sales EEE-HB1C331AP	20 %	230 mA	16 V	391 mA	10.3 mm	0.406 "	0.406 in	10.3 mm	10.2 mm	0.402 "	AEC-Q200	2000 Hrs	330 µF	-40 °C	105 ░C	Surface Mount	Automotive	10 mm	0.394 in	Radial Can - SMD	Polar
Panasonic Industrial Automation Sales EEE-HB1H6R8R	20 %	23 mA	50 VDC	39.1 mA	5.3 mm	0.209 in	0.209 in	5.3 mm	5.8 mm	0.228 "	AEC-Q200	2000 Hrs	6.8 ÁF	-40 °C	105 ░C	Surface Mount	Automotive	5 mm	0.197 "	Radial Can - SMD	Polar
Panasonic Industrial Automation Sales EEE-HB1A680AP	20 %	70 mA	10 V	119 mA	6.6 mm	0.26 in	0.26 in	6.6 mm	5.8 mm	0.228 "	AEC-Q200	2000 Hrs	68 µF	-40 °C	105 ░C	Surface Mount	Automotive	6.3 mm	0.248 in	Radial Can - SMD	Polar
Panasonic Industrial Automation Sales EEE-HB1C220R	20 %	39 mA	16 V	66.3 mA	5.3 mm	0.209 in	0.209 in	5.3 mm	5.8 mm	0.228 "	AEC-Q200	2000 Hrs	22 µF	-40 °C	105 ░C	Surface Mount	Automotive	5 mm	0.197 "	Radial Can - SMD	Polar
