T40400 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

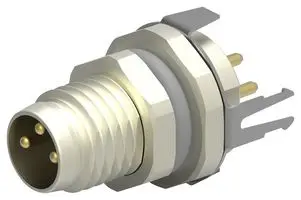

SENSOR CONNECTOR, M8, MALE, 3 POSITIONS, PCB PIN, STRAIGHT PANEL MOUNT
| Part | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Applications | Contact Finish - Mating | Connector Type | Ingress Protection | Fastening Type | Shell Finish | Shell Size - Insert | Mounting Feature | Voltage Rating | Termination | Shell Material | Orientation | Current Rating (Amps) | Color | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Primary Material | Features | Shielding | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 0.076 µm | 3 µin | Automation Control Industrial Telecommunications | Gold | Plug Male Pins | IP67 - Dust Tight Waterproof | Threaded | Nickel | M8-3 | Bulkhead | 60 VDC | Solder | Copper Alloy | A | 3 A | Silver | Panel Mount Through Hole | 85 °C | -40 C | Metal | |||
 TE Connectivity AMP Connectors | 0.076 µm | 3 µin | Automation Control Industrial Telecommunications | Gold | Plug Male Pins | IP67 - Dust Tight Waterproof | Threaded | Nickel | M8-4 | Bulkhead | 30 VDC | Solder | Copper Alloy | A | 3 A | Silver | Panel Mount Through Hole | 85 °C | -40 C | Metal | Board Lock | Shielded | 4 |
 TE Connectivity AMP Connectors | 0.076 µm | 3 µin | Automation Control Industrial Telecommunications | Gold | Plug Male Pins | IP67 - Dust Tight Waterproof | Threaded | Nickel | M8-3 | Bulkhead | 60 VDC | Solder | Copper Alloy | A | 3 A | Silver | Panel Mount Through Hole | 85 °C | -40 C | Metal | Board Lock | Shielded |
