APS-I Series

Manufacturer: OptiFuse

Catalog

FUSE AUTOMOTIVE 4A 32VDC BLADE

Part	Current Rating (Amps)	Breaking Capacity @ Rated Voltage	Package / Case	Approval Agency	Color	Response Time	Fuse Type	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Voltage Rating - DC	Mounting Type

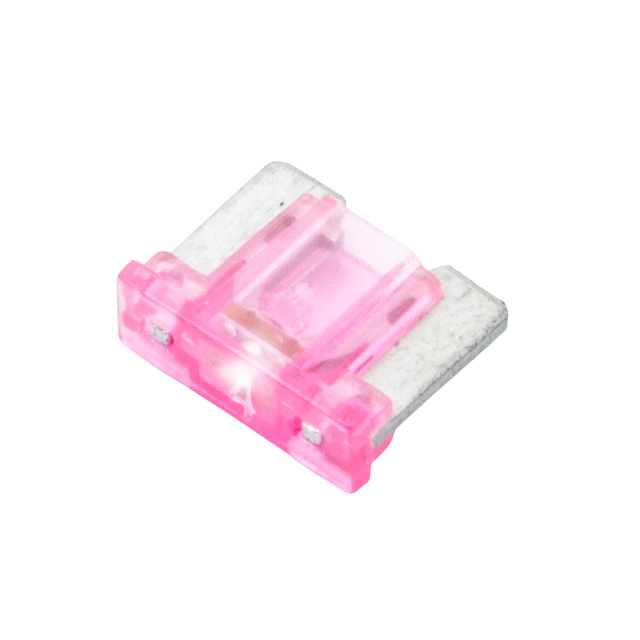

OptiFuse APS-I-4A	4 A	1 kA	Blade Miniature (Low Profile)	ISO SAE	Pink	Fast Blow	Automotive	11 mm	9 mm	0.354 in	3.9 mm	0.433 in	0.154 in	32 V	Requires Holder

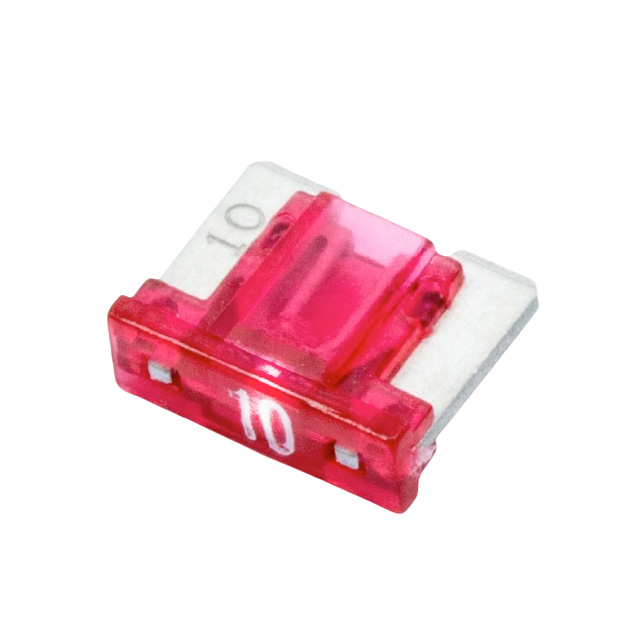

OptiFuse APS-I-10A	10 A	1 kA	Blade Miniature (Low Profile)	ISO SAE	Red	Fast Blow	Automotive	11 mm	9 mm	0.354 in	3.9 mm	0.433 in	0.154 in	32 V	Requires Holder

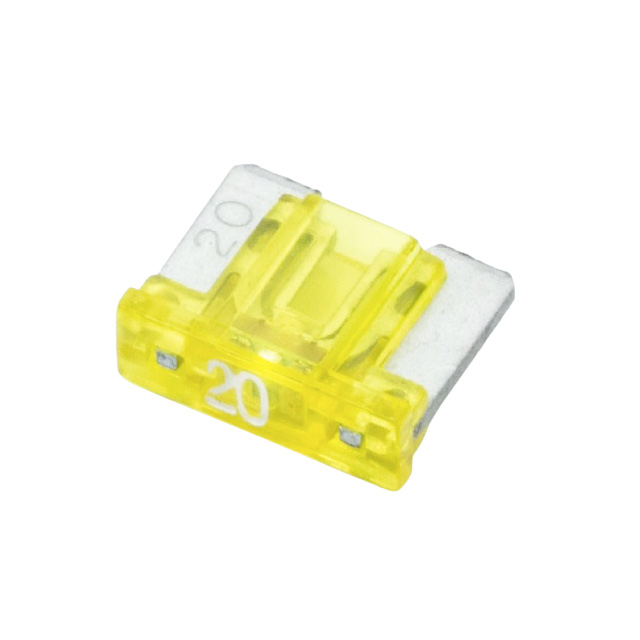

OptiFuse APS-I-20A	20 A	1 kA	Blade Miniature (Low Profile)	ISO SAE	Yellow	Fast Blow	Automotive	11 mm	9 mm	0.354 in	3.9 mm	0.433 in	0.154 in	32 V	Requires Holder

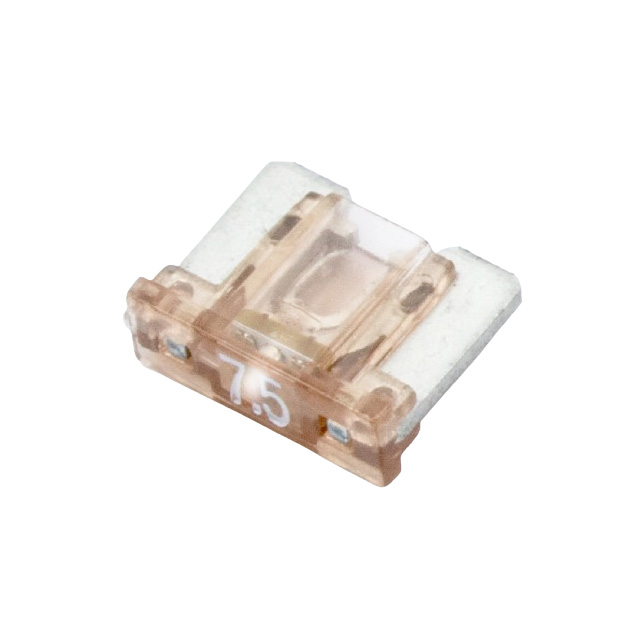

OptiFuse APS-I-7.5A	7.5 A	1 kA	Blade Miniature (Low Profile)	ISO SAE	Brown	Fast Blow	Automotive	11 mm	9 mm	0.354 in	3.9 mm	0.433 in	0.154 in	32 V	Requires Holder

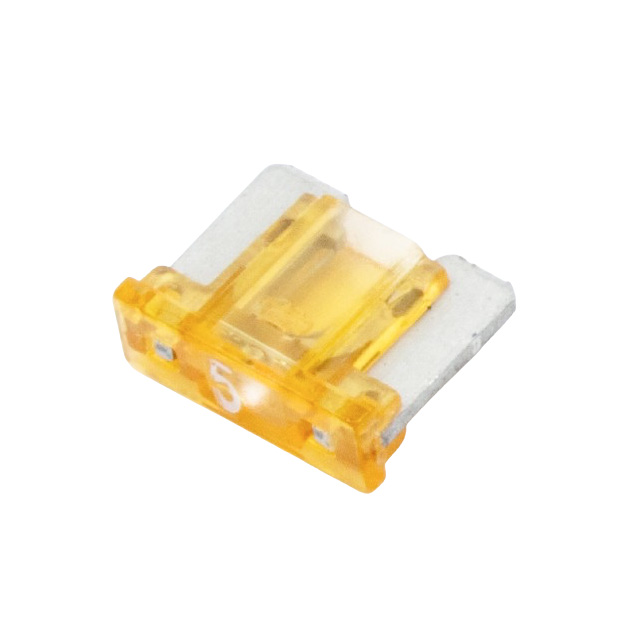

OptiFuse APS-I-5A	5 A	1 kA	Blade Miniature (Low Profile)	ISO SAE	Tan	Fast Blow	Automotive	11 mm	9 mm	0.354 in	3.9 mm	0.433 in	0.154 in	32 V	Requires Holder

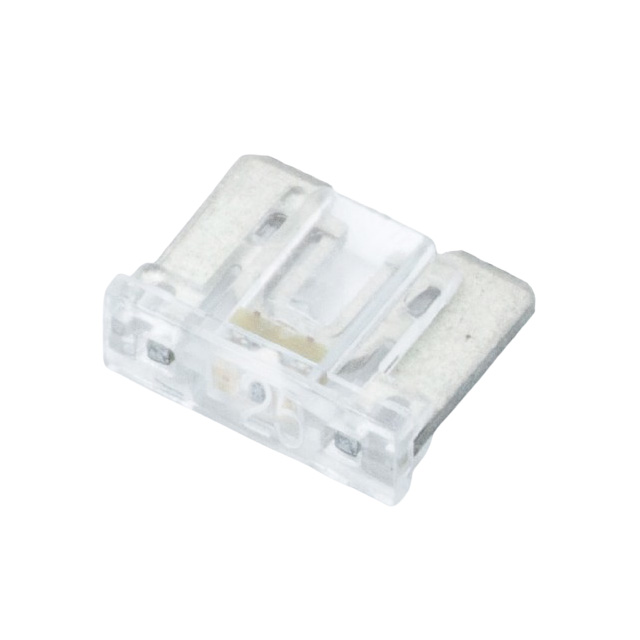

OptiFuse APS-I-25A	25 A	1 kA	Blade Miniature (Low Profile)	ISO SAE	Clear	Fast Blow	Automotive	11 mm	9 mm	0.354 in	3.9 mm	0.433 in	0.154 in	32 V	Requires Holder

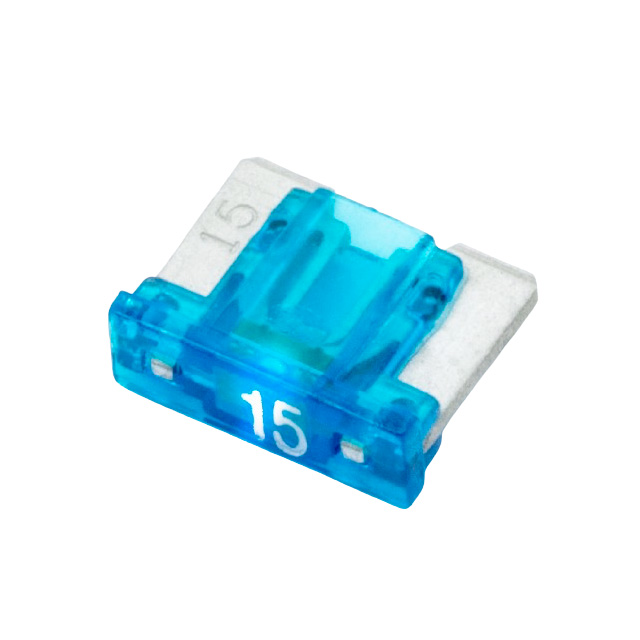

OptiFuse APS-I-15A	15 A	1 kA	Blade Miniature (Low Profile)	ISO SAE	Blue	Fast Blow	Automotive	11 mm	9 mm	0.354 in	3.9 mm	0.433 in	0.154 in	32 V	Requires Holder
