FPA28 Series
Manufacturer: ConductRF
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K

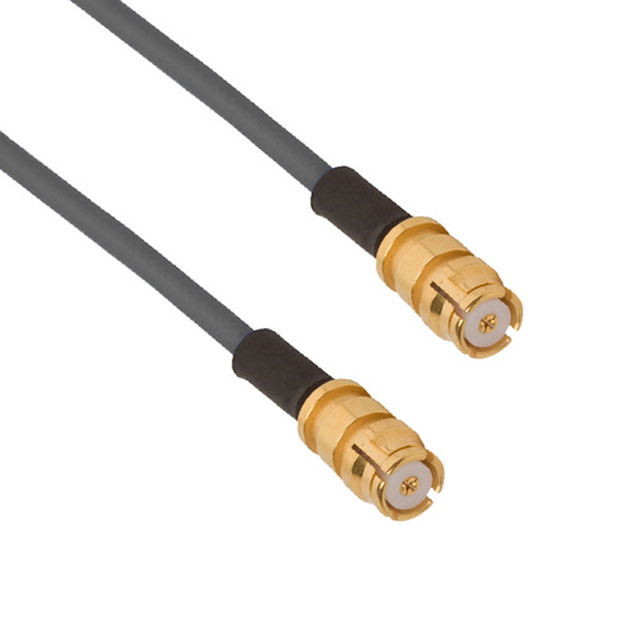

CBL ASSY SMP JACK TO JACK 12"
| Part | 2nd Contact Gender | Style | 1st Contact Gender | Overall Impedance | Frequency - Max | Color | 1st Connector Mounting Type | 1st Connector | Connector Impedance | Length | 2nd Connector Mounting Type | Operating Temperature (Max) | Operating Temperature (Min) | Features | Cable Type Size | Cable Type | Cable Outer Diameter | 2nd Connector |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ConductRF | Female | SMP | Female | 50 Ohms | 27 GHz | Black | Free Hanging (In-Line) | SMP Jack | 50 Ohms | 12 in | Free Hanging (In-Line) | 125 °C | -55 °C | Shielded | 2.18 | 2.18mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable | 2.18 mm | SMP Jack |

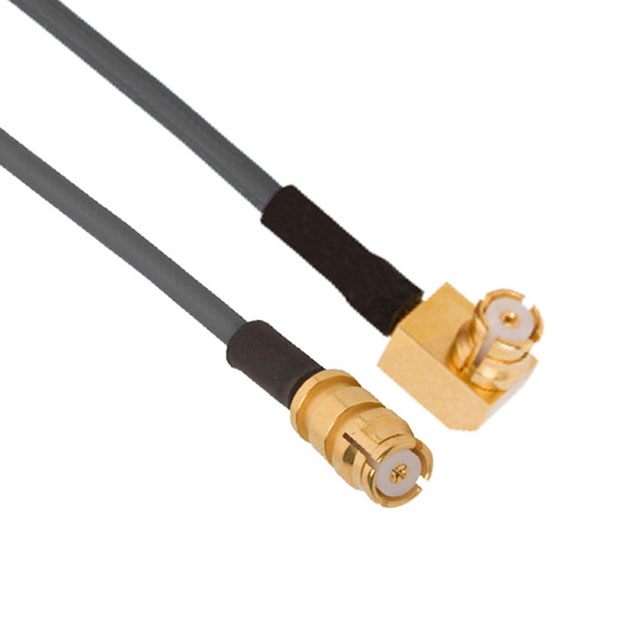

 ConductRF | Female | SMP | Female | 50 Ohms | 27 GHz | Black | Free Hanging (In-Line) | Right Angle SMP Jack | 50 Ohms | 8 in | Free Hanging (In-Line) | 125 °C | -55 °C | Shielded | 2.18 | 2.18mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable | 2.18 mm | Right Angle SMP Jack |
 ConductRF | Female | SMP | Female | 50 Ohms | 27 GHz | Black | Free Hanging (In-Line) | SMP Jack | 50 Ohms | 8 in | Free Hanging (In-Line) | 125 °C | -55 °C | Shielded | 2.18 | 2.18mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable | 2.18 mm | Right Angle SMP Jack |

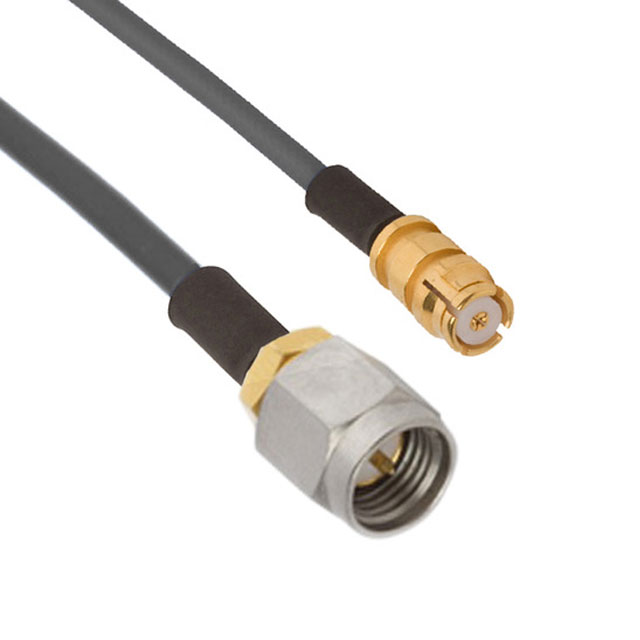

 ConductRF | Female | SMA SMP | Male | 50 Ohms | 27 GHz | Black | Free Hanging (In-Line) | SMA Plug | 50 Ohms | 16 in | Free Hanging (In-Line) | 125 °C | -55 °C | Shielded | 2.18 | 2.18mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable | 2.18 mm | SMP Jack |
ConductRF | Female | SMP | Female | 50 Ohms | 27 GHz | Black | Free Hanging (In-Line) | SMP Jack | 50 Ohms | 12 in | Free Hanging (In-Line) | 125 °C | -55 °C | Shielded | 2.18 | 2.18mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable | 2.18 mm | Right Angle SMP Jack |
ConductRF | Female | SMA SMP | Male | 50 Ohms | 27 GHz | Black | Free Hanging (In-Line) | SMA Plug | 50 Ohms | 12 in | Free Hanging (In-Line) | 125 °C | -55 °C | Shielded | 2.18 | 2.18mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable | 2.18 mm | SMP Jack |
ConductRF | Female | SMP | Female | 50 Ohms | 27 GHz | Black | Free Hanging (In-Line) | SMP Jack | 50 Ohms | 24 in | Free Hanging (In-Line) | 125 °C | -55 °C | Shielded | 2.18 | 2.18mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable | 2.18 mm | Right Angle SMP Jack |
ConductRF | Female | SMA SMP | Male | 50 Ohms | 27 GHz | Black | Free Hanging (In-Line) | SMA Plug | 50 Ohms | 8 in | Free Hanging (In-Line) | 125 °C | -55 °C | Shielded | 2.18 | 2.18mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable | 2.18 mm | SMP Jack |
ConductRF | Female | SMA SMP | Male | 50 Ohms | 27 GHz | Black | Free Hanging (In-Line) | SMA Plug | 50 Ohms | 24 in | Free Hanging (In-Line) | 125 °C | -55 °C | Shielded | 2.18 | 2.18mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable | 2.18 mm | SMP Jack |
ConductRF | Female | SMP | Female | 50 Ohms | 27 GHz | Black | Free Hanging (In-Line) | SMP Jack | 50 Ohms | 24 in | Free Hanging (In-Line) | 125 °C | -55 °C | Shielded | 2.18 | 2.18mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable | 2.18 mm | SMP Jack |
