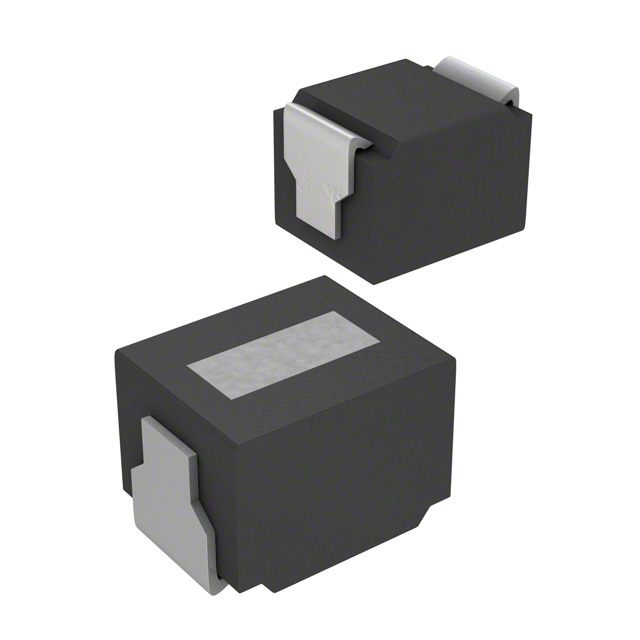

CM252016 Series

Catalog

FIXED IND 68UH 70MA 16.6 OHM SMD

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Inductance Frequency - Test	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	DC Resistance (DCR) [Max]	Frequency - Self Resonant	Tolerance	Material - Core	Q @ Freq	Shielding	Package / Case	Type	Inductance	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	DC Resistance (DCR)	Q @ Freq [custom]	Q @ Freq [custom]
Bourns Inc. CM252016-680KL	2.5 mm	0.079 in	0.098 in	2 mm	2.52 MHz	-20 ░C	100 °C	70 mA	16.6 Ohm	15 MHz	10 %	Ferrite	2.52 MHz 20	Unshielded	Nonstandard	Drum Core Wirewound	68 µH	Surface Mount	1.6 mm	0.063 in
Bourns Inc. CM252016-220KL	2.5 mm	0.079 in	0.098 in	2 mm	2.52 MHz	-20 ░C	100 °C	60 mA		22 MHz	10 %	Ferrite	2.52 MHz 25	Unshielded	Nonstandard	Drum Core Wirewound	22 µH	Surface Mount	1.6 mm	0.063 in	5.8 Ohm
Bourns Inc. CM252016-68NKL	2.5 mm	0.079 in	0.098 in	2 mm	100 MHz	-20 ░C	100 °C	190 mA	680 mOhm	590 MHz	10 %	Polymer		Unshielded	Nonstandard	Wirewound	68 nH	Surface Mount	1.6 mm	0.063 in
Bourns Inc. CM252016-101KL	2.5 mm	0.079 in	0.098 in	2 mm	0.796 MHz	-20 ░C	100 °C	60 mA	21 Ohm	12 MHz	10 %	Ferrite		Unshielded	Nonstandard	Drum Core Wirewound	100 µH	Surface Mount	1.6 mm	0.063 in		15	796 kHz
Bourns Inc. CM252016-1R0KL	2.5 mm	0.079 in	0.098 in	2 mm	7.96 MHz	-20 ░C	100 °C	195 mA	650 mOhm	115 MHz	10 %	Ferrite	7.96 MHz 25	Unshielded	Nonstandard	Drum Core Wirewound	1 µH	Surface Mount	1.6 mm	0.063 in
