KPT06 Series

Catalog

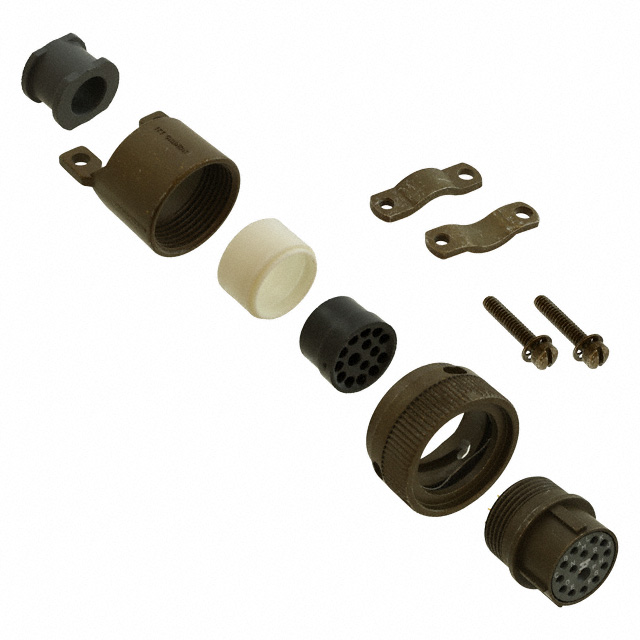

CONN PLUG MALE 24P GOLD SLDR CUP

...

Part	Operating Temperature [Min]	Operating Temperature [Max]	Shell Material	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Orientation	Shell Finish	Number of Positions	Voltage Rating	Voltage Rating	Fastening Type	Primary Material	Mounting Type	Contact Finish - Mating	Connector Type	Color	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Features	Ingress Protection	Shell Size - Insert [Max] [custom]	Shell Size - Insert [Min] [custom]	Shell Size - Insert
ITT Cannon, LLC KPT06E20-24PDN	-55 C	125 °C	Aluminum Alloy	7.5 A	50 µin	1.27 µm	N (Normal)	Olive Drab Cadmium	24	600 VAC	850 VDC	Bayonet Lock	Metal	Free Hanging (In-Line)	Gold	Plug Male Pins	Olive Drab	24	20	Shrink Boot Adapter	Environment Resistant
ITT Cannon, LLC KPT06P16-23P	-55 C	125 °C	Aluminum Alloy	7.5 A 13 A	50 µin	1.27 µm	N (Normal)	Olive Drab Cadmium	23	600 VAC	850 VDC	Bayonet Lock	Metal	Free Hanging (In-Line)	Gold	Plug Male Pins	Olive Drab	23	16	Potted	Environment Resistant
ITT Cannon, LLC KPT06F14-18PA206	-55 C	125 °C	Aluminum Alloy	7.5 A	50 µin	1.27 µm	N (Normal)	Black Zinc	18	600 VAC	850 VDC	Bayonet Lock	Metal	Free Hanging (In-Line)	Gold	Plug Male Pins	Black			Strain Relief	Environment Resistant	18	14
ITT Cannon, LLC KPT06A18-32P	-55 C	125 °C	Aluminum Alloy	7.5 A	50 µin	1.27 µm	N (Normal)	Olive Drab Cadmium		600 VAC	850 VDC	Bayonet Lock	Metal	Free Hanging (In-Line)	Gold	Plug Male Pins	Olive Drab	32	18
ITT Cannon, LLC KPT06F1415S	-55 C	125 °C	Aluminum Alloy	7.5 A 13 A	50 µin	1.27 µm	N (Normal)	Olive Drab Cadmium	15	600 VAC	850 VDC	Bayonet Lock	Metal	Free Hanging (In-Line)	Gold	Plug Female Sockets	Olive Drab	15	14	Strain Relief	Environment Resistant
ITT Cannon, LLC KPT06F14-15P	-55 C	125 °C	Aluminum Alloy	7.5 A 13 A	50 µin	1.27 µm	N (Normal)	Olive Drab Cadmium	15	600 VAC	850 VDC	Bayonet Lock	Metal	Free Hanging (In-Line)	Gold	Plug Male Pins	Olive Drab	15	14	Strain Relief	Environment Resistant
ITT Cannon, LLC KPT06F20-39SA206	-55 C	125 °C	Aluminum Alloy	7.5 A 13 A	50 µin	1.27 µm	N (Normal)	Black Zinc	39	600 VAC	850 VDC	Bayonet Lock	Metal	Free Hanging (In-Line)	Gold	Plug Female Sockets	Black	39	20	Strain Relief	Environment Resistant
ITT Cannon, LLC KPT06P12-8PW	-55 C	125 °C	Aluminum Alloy	7.5 A	50 µin	1.27 µm	W	Olive Drab Cadmium	8	600 VAC	850 VDC	Bayonet Lock	Metal	Free Hanging (In-Line)	Gold	Plug Male Pins	Olive Drab	8	12	Potted	Environment Resistant
ITT Cannon, LLC KPT06B8-2P	-55 C	125 °C	Aluminum Alloy	7.5 A	50 µin	1.27 µm	N (Normal)	Olive Drab Cadmium	2	600 VAC	850 VDC	Bayonet Lock	Metal	Free Hanging (In-Line)	Gold	Plug Male Pins	Olive Drab			Strain Relief				8-2
ITT Cannon, LLC KPT06J18-11PW
