L1I0 Series

Manufacturer: Lumileds

Catalog

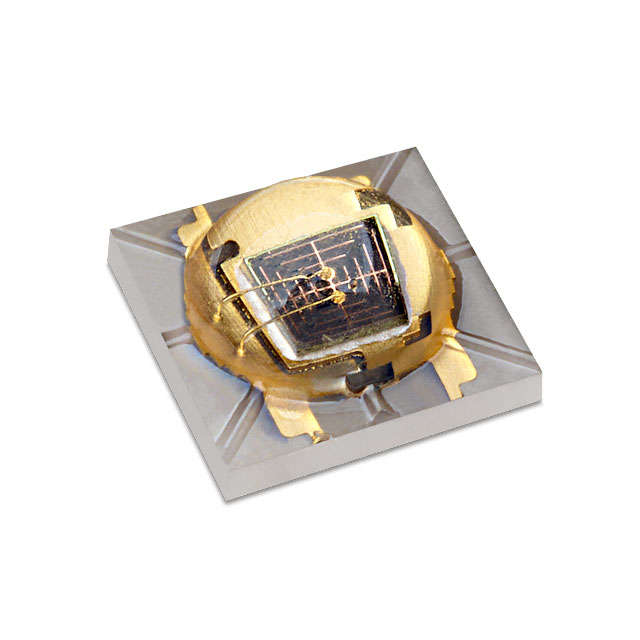

DOMED 150 DEG FOV

Part	Viewing Angle	Type	Mounting Type	Voltage - Forward (Vf) (Typ)	Operating Temperature [Max]	Operating Temperature [Min]	Wavelength	Grade	Radiant Intensity (Ie) Min @ If	Orientation	Current - DC Forward (If) (Max) [Max]	Qualification	Package / Case	Radiant Intensity (Ie) Min @ If [Min]
Lumileds L1I0-A940150020000	139 °	Infrared (IR)	Surface Mount	2.9 V	125 °C	-40 °C	945 nm	Automotive	330 mW/sr	Top View	1.5 A	AEC-Q102	3-SMD No Lead
Lumileds L1I0-0850150000000	150 °	Infrared (IR)	Surface Mount	3.2 V	85 °C	-30 °C	850 nm		335 mW/sr	Top View	1 A		3-SMD No Lead

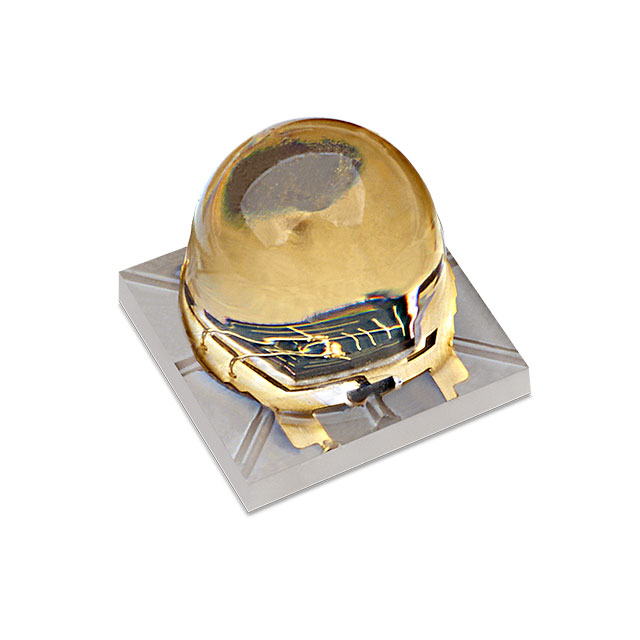

Lumileds L1I0-0850060200000	60 °	Infrared (IR)	Surface Mount				850 nm			Top View	1.5 A		3-SMD No Lead	1150 mW/sr
Lumileds L1I0-A940090020000	90 °	Infrared (IR)	Surface Mount	2.9 V	125 °C	-40 °C	945 nm	Automotive	740 mW/sr	Top View	1.5 A	AEC-Q102	3-SMD No Lead
Lumileds L1I0-0850150200000	150 °	Infrared (IR)	Surface Mount				850 nm		335 mW/sr	Top View	1.5 A		3-SMD No Lead
Lumileds L1I0-0940150200000	150 °	Infrared (IR)	Surface Mount				940 nm		1000 mA	Top View	1.5 A		3-SMD No Lead	350 mW/sr
Lumileds L1I0-A940145000000	145 °	Infrared (IR)	Surface Mount	2.9 V	125 °C	-40 °C	940 nm	Automotive		Top View	1.5 A	AEC-Q102	3-SMD No Lead	320 mW/sr
Lumileds L1I0-0940060200000	60 °	Infrared (IR)	Surface Mount				940 nm			Top View	1.5 A		3-SMD No Lead	1190 mW/sr
Lumileds L1I0-0850060000000	60 °	Infrared (IR)	Surface Mount	3.2 V	85 °C	-30 °C	850 nm			Top View	1 A		3-SMD No Lead	1150 mW/sr
Lumileds L1I0-A940060020000	61 °	Infrared (IR)	Surface Mount	2.9 V	125 °C	-40 °C	945 nm	Automotive		Top View	1.5 A	AEC-Q102	3-SMD No Lead	1130 mW/sr
