310-47 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

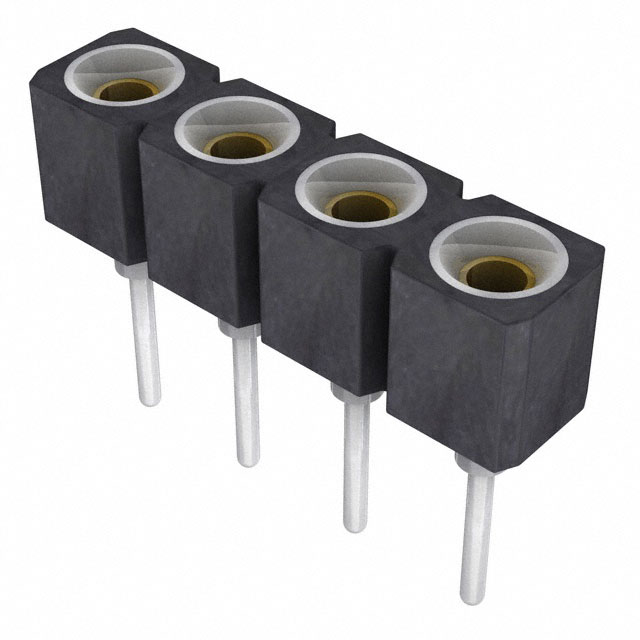

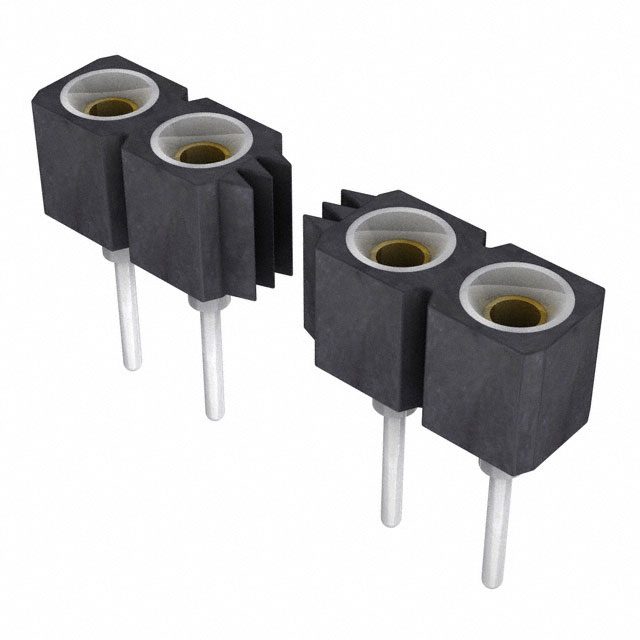

CONN RCPT 43POS 0.1 GOLD PCB
| Part | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Insulation Material | Contact Material | Contact Shape | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Post | Contact Finish - Mating | Fastening Type | Current Rating (Amps) | Pitch - Mating | Pitch - Mating | Contact Finish Thickness - Mating | Material Flammability Rating | Termination | Contact Length - Post | Contact Length - Post | Number of Rows | Connector Type | Insulation Color | Voltage Rating | Voltage Rating | Number of Positions Loaded | Mounting Type | Contact Type | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 200 µin | 5.08 µm | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Beryllium Copper | Circular | -55 C | 125 °C | Tin | Gold | Push-Pull | 3 A | 0.1 " | 2.54 mm | Flash | UL94 V-0 | Solder | 0.125 in | 3.18 mm | 1 | Receptacle | Black | 100 V | 150 VDC | All | Through Hole | Female Socket | 43 |
Mill-Max Manufacturing Corp. | 200 µin | 5.08 µm | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Beryllium Copper | Circular | -55 C | 125 °C | Tin | Gold | Push-Pull | 3 A | 0.1 " | 2.54 mm | Flash | UL94 V-0 | Solder | 0.125 in | 3.18 mm | 1 | Receptacle | Black | 100 V | 150 VDC | All | Through Hole | Female Socket | 18 |
Mill-Max Manufacturing Corp. | 200 µin | 5.08 µm | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Beryllium Copper | Circular | -55 C | 125 °C | Tin | Gold | Push-Pull | 3 A | 0.1 " | 2.54 mm | Flash | UL94 V-0 | Solder | 0.125 in | 3.18 mm | 1 | Receptacle | Black | 100 V | 150 VDC | All | Through Hole | Female Socket | 63 |
Mill-Max Manufacturing Corp. | 200 µin | 5.08 µm | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Beryllium Copper | Circular | -55 C | 125 °C | Tin | Gold | Push-Pull | 3 A | 0.1 " | 2.54 mm | Flash | UL94 V-0 | Solder | 0.125 in | 3.18 mm | 1 | Receptacle | Black | 100 V | 150 VDC | All | Through Hole | Female Socket | 24 |
Mill-Max Manufacturing Corp. | 200 µin | 5.08 µm | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Beryllium Copper | Circular | -55 C | 125 °C | Tin | Gold | Push-Pull | 3 A | 0.1 " | 2.54 mm | Flash | UL94 V-0 | Solder | 0.125 in | 3.18 mm | 1 | Receptacle | Black | 100 V | 150 VDC | All | Through Hole | Female Socket | 5 |
 Mill-Max Manufacturing Corp. | 200 µin | 5.08 µm | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Beryllium Copper | Circular | -55 C | 125 °C | Tin | Gold | Push-Pull | 3 A | 0.1 " | 2.54 mm | Flash | UL94 V-0 | Solder | 0.125 in | 3.18 mm | 1 | Receptacle | Black | 100 V | 150 VDC | All | Through Hole | Female Socket | 4 |
Mill-Max Manufacturing Corp. | 200 µin | 5.08 µm | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Beryllium Copper | Circular | -55 C | 125 °C | Tin | Gold | Push-Pull | 3 A | 0.1 " | 2.54 mm | Flash | UL94 V-0 | Solder | 0.125 in | 3.18 mm | 1 | Receptacle | Black | 100 V | 150 VDC | All | Through Hole | Female Socket | 59 |
Mill-Max Manufacturing Corp. | 200 µin | 5.08 µm | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Beryllium Copper | Circular | -55 C | 125 °C | Tin | Gold | Push-Pull | 3 A | 0.1 " | 2.54 mm | Flash | UL94 V-0 | Solder | 0.125 in | 3.18 mm | 1 | Receptacle | Black | 100 V | 150 VDC | All | Through Hole | Female Socket | 29 |
Mill-Max Manufacturing Corp. | 200 µin | 5.08 µm | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Beryllium Copper | Circular | -55 C | 125 °C | Tin | Gold | Push-Pull | 3 A | 0.1 " | 2.54 mm | Flash | UL94 V-0 | Solder | 0.125 in | 3.18 mm | 1 | Receptacle | Black | 100 V | 150 VDC | All | Through Hole | Female Socket | 9 |
Mill-Max Manufacturing Corp. | 200 µin | 5.08 µm | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Beryllium Copper | Circular | -55 C | 125 °C | Tin | Gold | Push-Pull | 3 A | 0.1 " | 2.54 mm | Flash | UL94 V-0 | Solder | 0.125 in | 3.18 mm | 1 | Receptacle | Black | 100 V | 150 VDC | All | Through Hole | Female Socket | 40 |
