QFR0912 Series

Catalog

FAN AXIAL 92X38MM 12VDC WIRE

Part	Material - Frame	Material - Blade	Lifetime @ Temp.	Voltage Range [Min]	Voltage Range [Max]	Current Rating (Amps)	Power (Watts)	Weight	Weight	Features	Approval Agency	Air Flow	Air Flow	RPM	Voltage - Rated	Static Pressure	Static Pressure	Bearing Type	Fan Type	Noise	Width [y]	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Termination

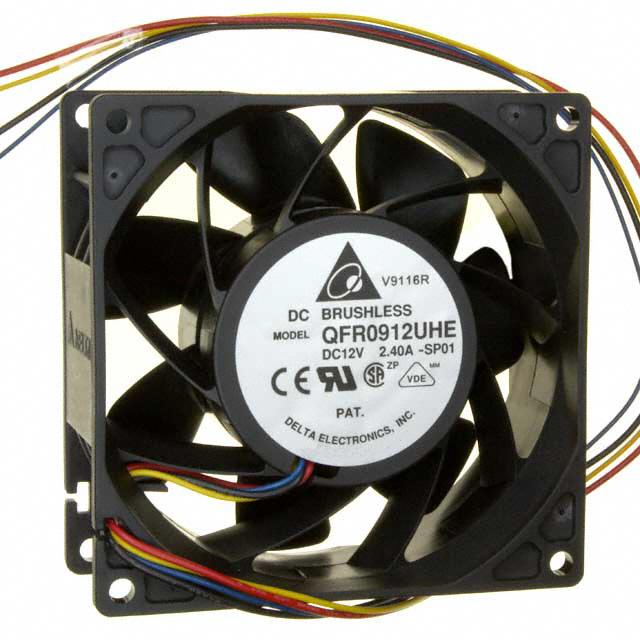

Delta Electronics QFR0912UHE-SP01	Plastic	Plastic	40 °C 50000 Hrs	8 V	13.2 VDC	1.6 A	19.2 W	0.43 lb	195.04 g	Locked Rotor Protection PWM Control Speed Sensor (Tach)	CE CSA UL VDE	3.69 m³/min	131.8 CFM	8300 RPM	12 VDC	1.466 in H2O	365.2 Pa	Ball	Tubeaxial	62 dB(A)	38 mm	92 mm	92 mm	70 °C	-10 °C	4 Wire Leads

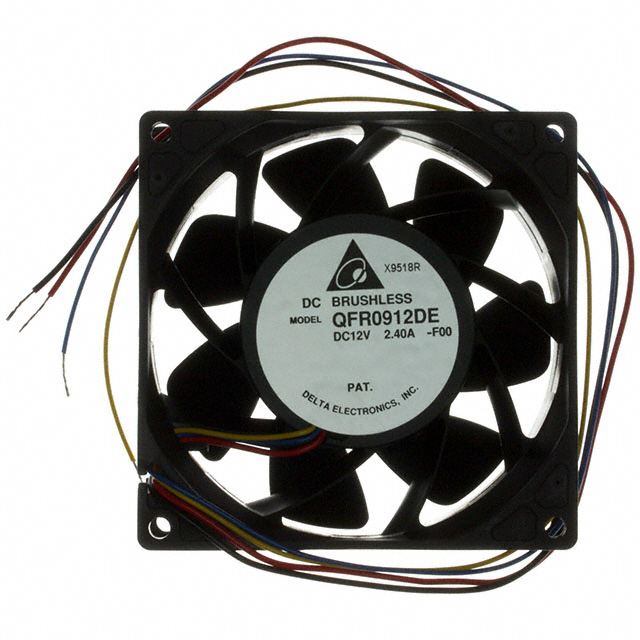

Delta Electronics QFR0912DE-F00	Plastic	Plastic	40 °C 50000 Hrs	8 V	13.2 VDC	1.6 A	19.2 W	0.43 lb	195.04 g	Locked Rotor Protection PWM Control Speed Sensor (Tach)	CE CSA UL VDE	3.69 m³/min	131.8 CFM	8300 RPM	12 VDC	1.466 in H2O	365.2 Pa	Ball	Tubeaxial	62 dB(A)	38 mm	92 mm	92 mm	70 °C	-10 °C	4 Wire Leads
