1658438 Series

Catalog

MSB0.80PL14ASY120FL,-,10,-TY

Part	Connector Type	Height Above Board [z]	Height Above Board [z]	Contact Finish Thickness	Features	Mounting Type	Number of Positions	Number of Rows [custom]	Contact Finish	Pitch	Pitch	Mated Stacking Heights

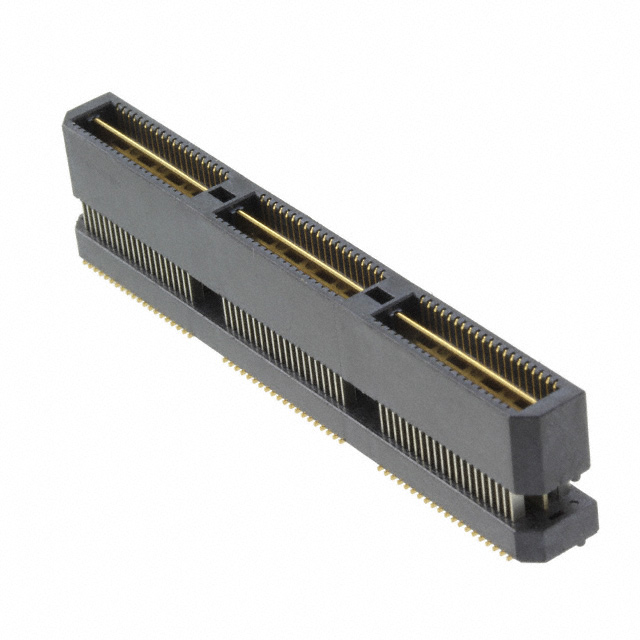

TE Connectivity AMP Connectors 1658438-3	Plug Outer Shroud Contacts	13.25 mm	0.522 in	Flash	Board Guide Ground Bus (Plane)	Surface Mount	120	2	Gold	0.8 mm	0.031 in

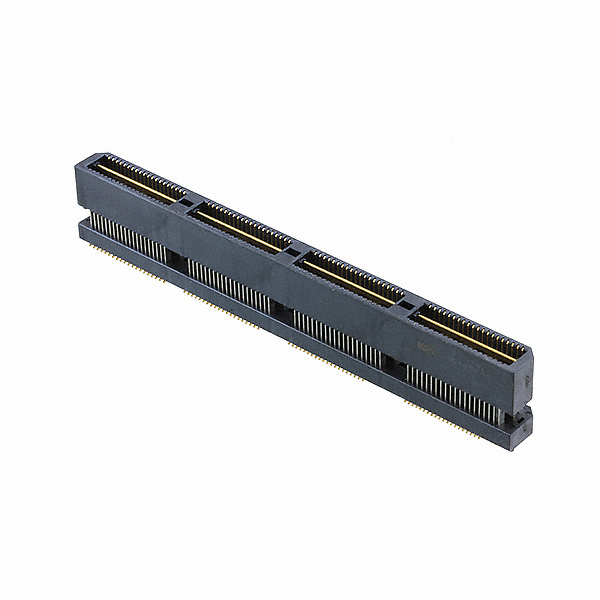

TE Connectivity AMP Connectors 1658438-4	Plug Outer Shroud Contacts	13.25 mm	0.522 in	Flash	Board Guide Ground Bus (Plane)	Surface Mount	160	2	Gold	0.8 mm	0.031 in

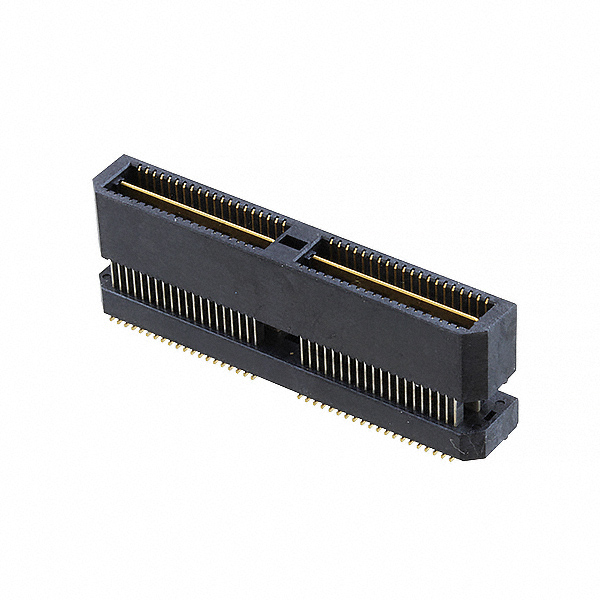

TE Connectivity AMP Connectors 1658438-2	Plug Outer Shroud Contacts	13.25 mm	0.522 in	Flash	Board Guide Ground Bus (Plane)	Surface Mount	80	2	Gold	0.8 mm	0.031 in

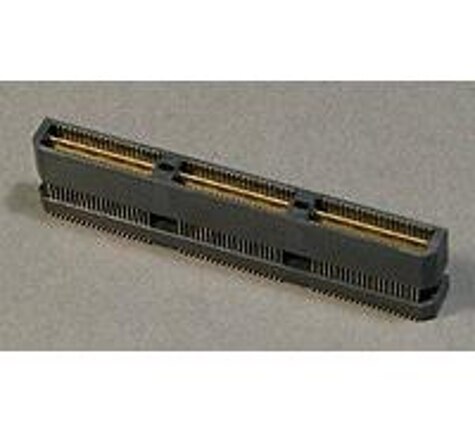

TE Connectivity AMP Connectors 2-1658438-3	Plug Outer Shroud Contacts	13.25 mm	0.522 in	Flash	Board Guide Ground Bus (Plane)	Surface Mount	120	2	Gold	0.8 mm	0.031 in	14 mm
