PEC27 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER VERT 27POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Style	Overall Contact Length	Overall Contact Length	Insulation Height	Insulation Height	Number of Positions	Contact Material	Fastening Type	Shrouding	Connector Type	Contact Length - Post [custom]	Contact Length - Post [custom]	Contact Length - Mating	Contact Length - Mating	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Number of Rows	Termination	Contact Shape	Number of Positions Loaded	Contact Type	Insulation Color	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Mounting Type	Contact Length - Post	Contact Length - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Height [z]	Insulation Height [z]	Number of Rows [custom]	Overall Contact Length [x]	Overall Contact Length [x]

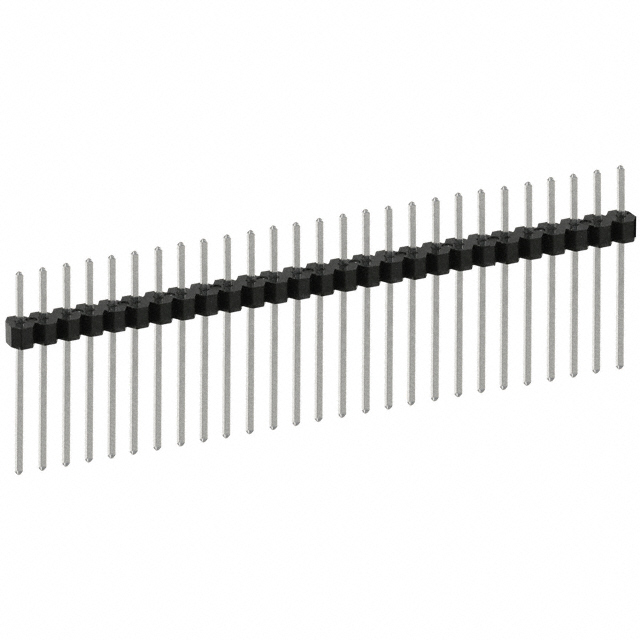

Sullins Connector Solutions PEC27SAFN	2.54 µm	100 µin	100 çin	2.54 çm	Tin	Board to Board Cable	0.95 in	24.13 mm	0.1 in	2.54 mm	27	Phosphor Bronze	Push-Pull	Unshrouded	Header Breakaway	15.75 mm	0.62 "	0.23 in	5.84 mm	Polybutylene Terephthalate (PBT)	-65 ░C	125 °C	UL94 V-0	1	Solder	Square	All	Male Pin	Black	0.1 "	2.54 mm	3 A	Through Hole

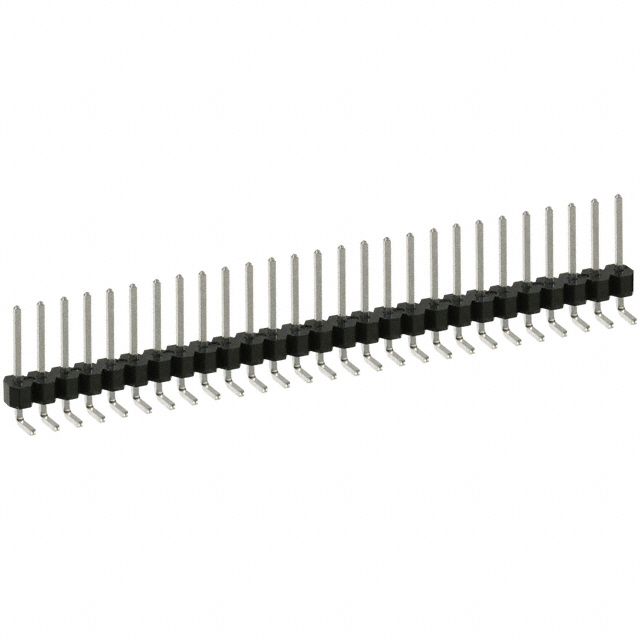

Sullins Connector Solutions PEC27SGAN	2.54 µm	100 µin	100 çin	2.54 çm	Tin	Board to Board Cable			0.14 in	3.56 mm	27	Phosphor Bronze	Push-Pull	Unshrouded	Header Breakaway			0.318 in	8.08 mm	Polybutylene Terephthalate (PBT)	-65 ░C	125 °C	UL94 V-0	1	Solder	Square	All	Male Pin	Black	0.1 "	2.54 mm	3 A	Right Angle Through Hole	0.1 in	2.54 mm
Sullins Connector Solutions PEC27DBAN	2.54 µm	100 µin	100 çin	2.54 çm	Tin	Board to Board Cable					54	Phosphor Bronze	Push-Pull	Unshrouded	Header Breakaway			0.23 in	5.84 mm	Polybutylene Terephthalate (PBT)	-65 ░C	125 °C	UL94 V-0		Solder	Square	All	Male Pin	Black	0.1 "	2.54 mm	3 A	Right Angle Through Hole	0.1 in	2.54 mm	0.1 in	2.54 mm	6.1 mm	0.24 in	2
Sullins Connector Solutions PEC27SAGN	2.54 µm	100 µin	100 çin	2.54 çm	Tin	Board to Board Cable	1.05 in	26.67 mm	0.1 in	2.54 mm	27	Phosphor Bronze	Push-Pull	Unshrouded	Header Breakaway			0.23 in	5.84 mm	Polybutylene Terephthalate (PBT)	-65 ░C	125 °C	UL94 V-0	1	Solder	Square	All	Male Pin	Black	0.1 "	2.54 mm	3 A	Through Hole	0.72 "	18.29 mm

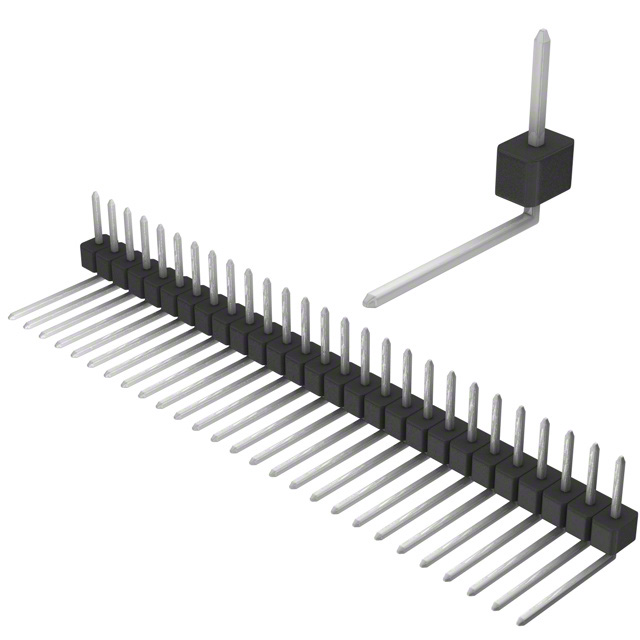

Sullins Connector Solutions PEC27SBDN	2.54 µm	100 µin	100 çin	2.54 çm	Tin	Board to Board Cable			0.14 in	3.56 mm	27	Phosphor Bronze	Push-Pull	Unshrouded	Header Breakaway			0.23 in	5.84 mm	Polybutylene Terephthalate (PBT)	-65 ░C	125 °C	UL94 V-0	1	Solder	Square	All	Male Pin	Black	0.1 "	2.54 mm	3 A	Right Angle Through Hole	0.4 in	10.16 mm

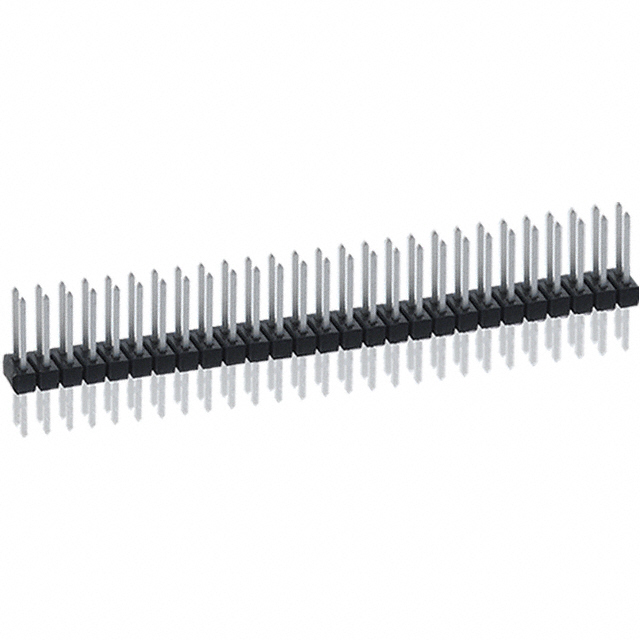

Sullins Connector Solutions PEC27DFBN	2.54 µm	100 µin	100 çin	2.54 çm	Tin	Board to Board Cable	0.638 in	16.21 mm	0.1 in	2.54 mm	54	Phosphor Bronze	Push-Pull	Unshrouded	Header Breakaway			0.318 in	8.08 mm	Polybutylene Terephthalate (PBT)	-65 ░C	125 °C	UL94 V-0		Solder	Square	All	Male Pin	Black	0.1 "	2.54 mm	3 A	Through Hole	0.22 in	5.58 mm	0.1 in	2.54 mm			2
Sullins Connector Solutions PEC27SAEN	2.54 µm	100 µin	100 çin	2.54 çm	Tin	Board to Board Cable	0.85 in	21.59 mm	0.1 in	2.54 mm	27	Phosphor Bronze	Push-Pull	Unshrouded	Header Breakaway			0.23 in	5.84 mm	Polybutylene Terephthalate (PBT)	-65 ░C	125 °C	UL94 V-0	1	Solder	Square	All	Male Pin	Black	0.1 "	2.54 mm	3 A	Through Hole	0.52 in	13.21 mm

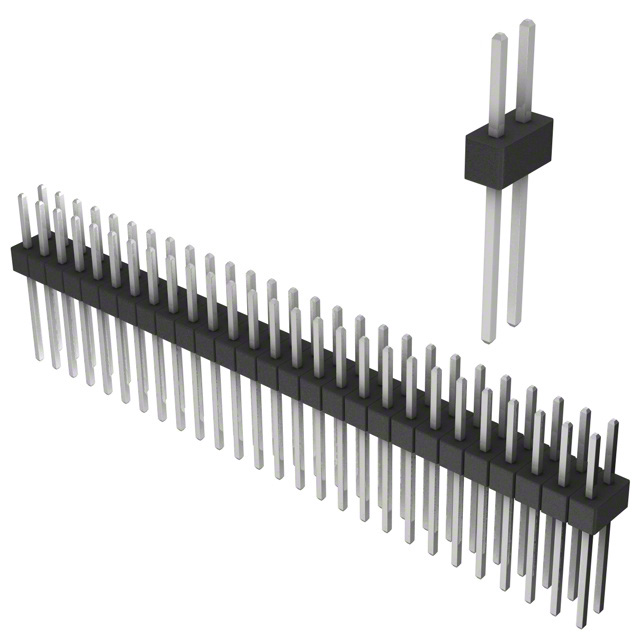

Sullins Connector Solutions PEC27DADN	2.54 µm	100 µin	100 çin	2.54 çm	Tin	Board to Board Cable			0.1 in	2.54 mm	54	Phosphor Bronze	Push-Pull	Unshrouded	Header Breakaway			0.23 in	5.84 mm	Polybutylene Terephthalate (PBT)	-65 ░C	125 °C	UL94 V-0		Solder	Square	All	Male Pin	Black	0.1 "	2.54 mm	3 A	Through Hole	0.42 in	10.67 mm	0.1 in	2.54 mm			2	19.05 mm	0.75 in
Sullins Connector Solutions PEC27DBCN	2.54 µm	100 µin	100 çin	2.54 çm	Tin	Board to Board Cable					54	Phosphor Bronze	Push-Pull	Unshrouded	Header Breakaway			0.23 in	5.84 mm	Polybutylene Terephthalate (PBT)	-65 ░C	125 °C	UL94 V-0		Solder	Square	All	Male Pin	Black	0.1 "	2.54 mm	3 A	Right Angle Through Hole	0.3 in	7.62 mm	0.1 in	2.54 mm	6.1 mm	0.24 in	2

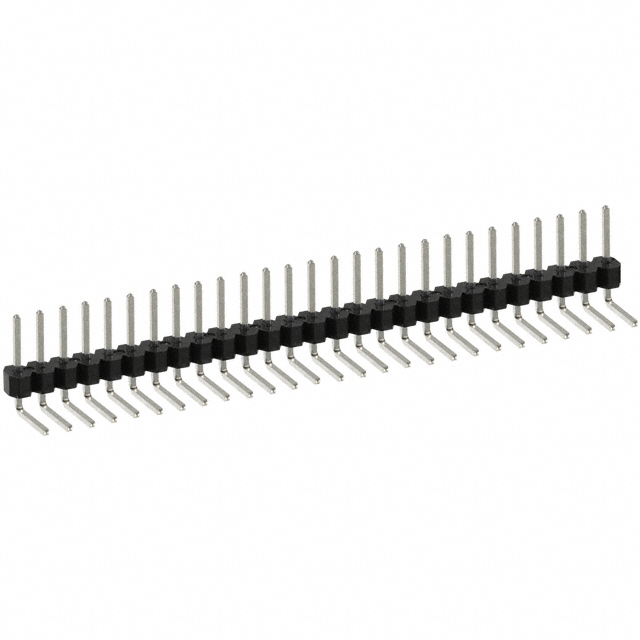

Sullins Connector Solutions PEC27SBBN	2.54 µm	100 µin	100 çin	2.54 çm	Tin	Board to Board Cable			0.14 in	3.56 mm	27	Phosphor Bronze	Push-Pull	Unshrouded	Header Breakaway	5.08 mm	0.2 "	0.23 in	5.84 mm	Polybutylene Terephthalate (PBT)	-65 ░C	125 °C	UL94 V-0	1	Solder	Square	All	Male Pin	Black	0.1 "	2.54 mm	3 A	Right Angle Through Hole
