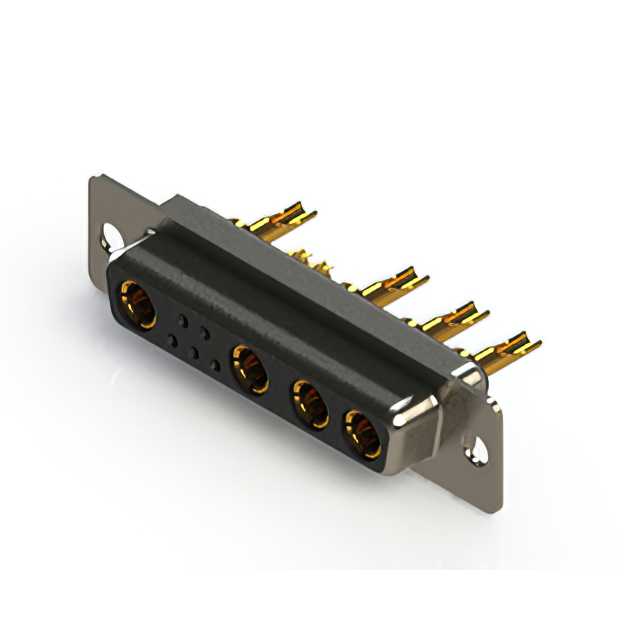

COMBINATION LAYOUT D SUB CONNECTOR, 628C SERIES, DB-9W4, RECEPTACLE, 9 CONTACTS

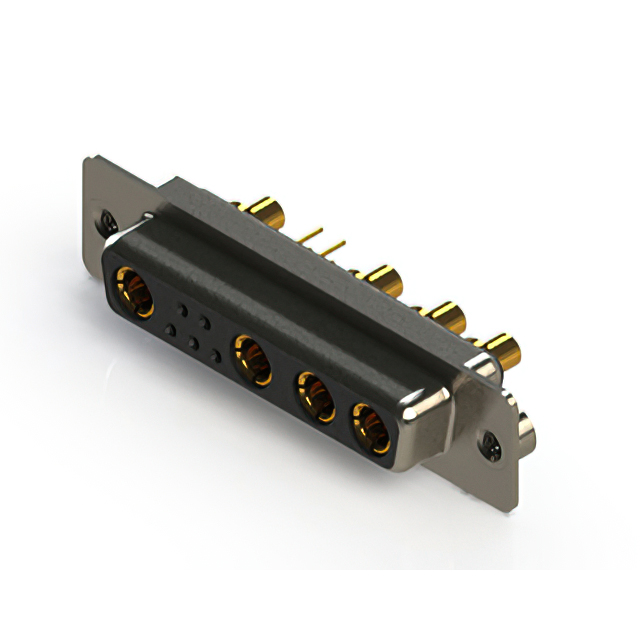

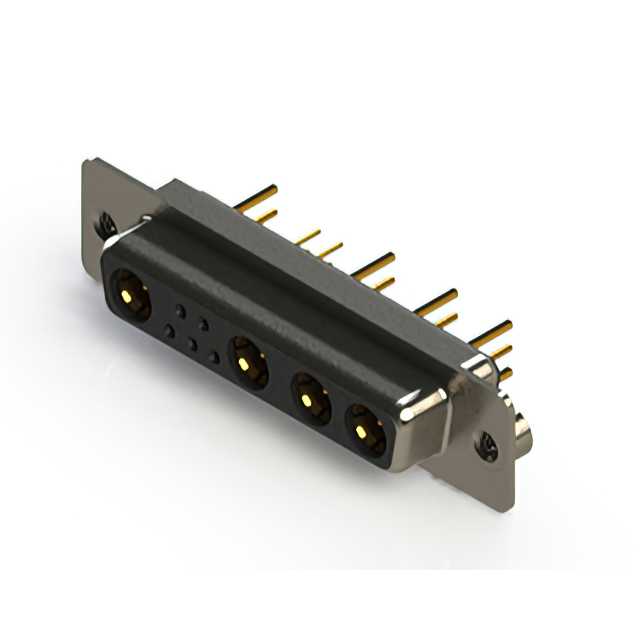

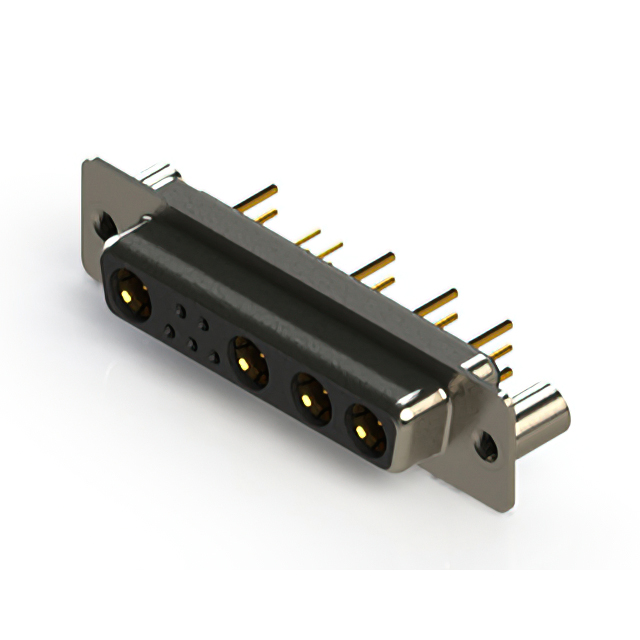

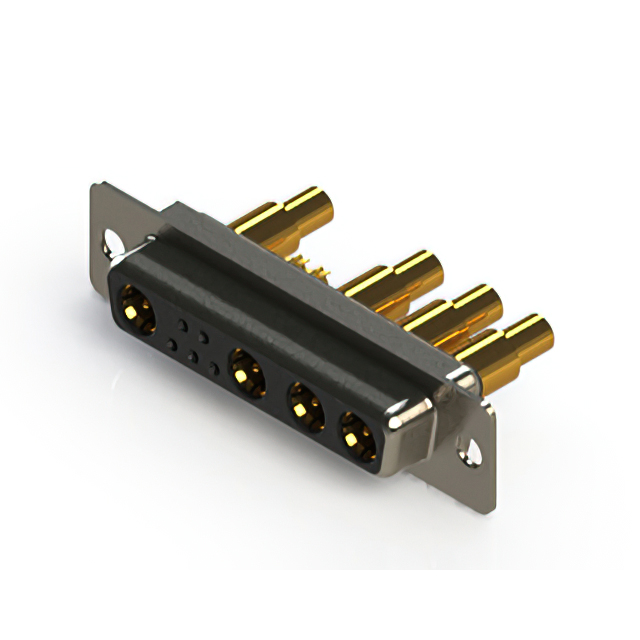

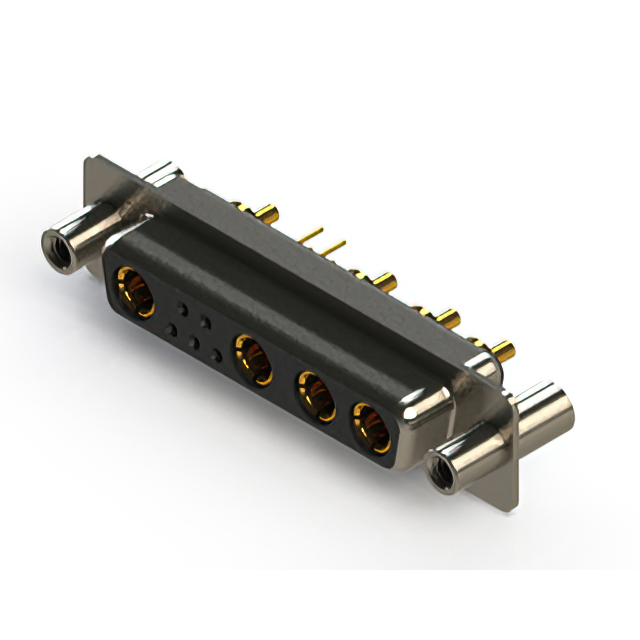

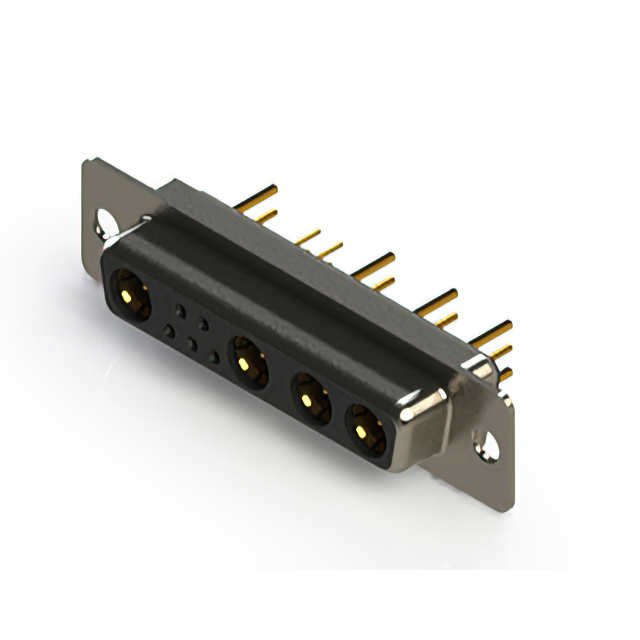

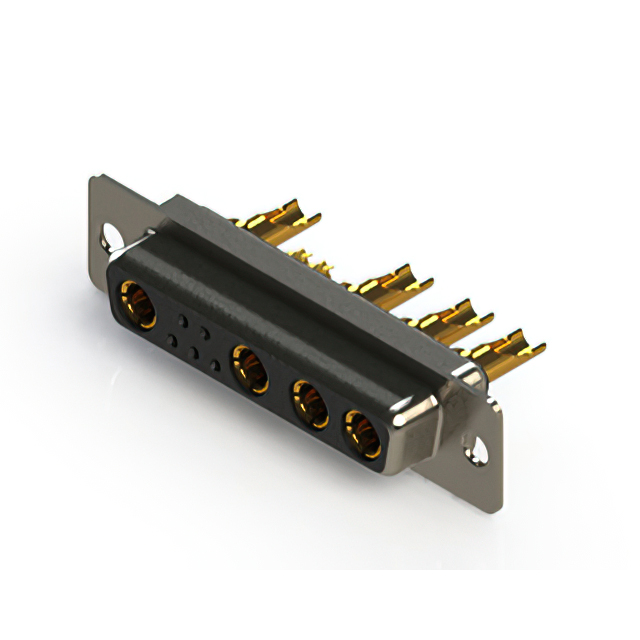

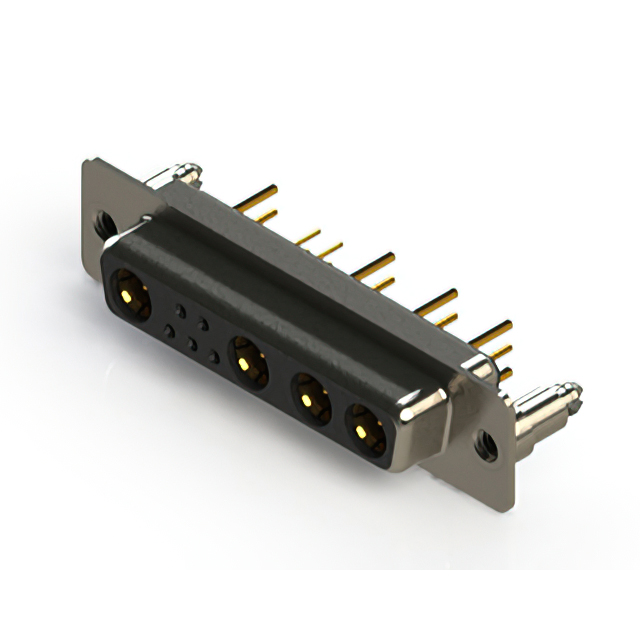

| Part | Color | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Contact Material | Material Flammability Rating | Contact Type | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [x] | Flange Feature | Features | Contact Finish | Connector Type | Connector Style | Contact Finish Thickness | Number of Rows [custom] | Mounting Type | Termination | Number of Positions [Max] | Number of Positions [custom] | Number of Positions [custom] | Contact Finish Thickness | Contact Finish Thickness | Shell Material, Finish | Number of Positions [custom] | Number of Positions [custom] | Current Rating (Amps) | Flange Feature [custom] | Flange Feature [custom] | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Black | Polyester Thermoplastic | -55 C | 125 °C | 125 VDC | Copper Alloy | UL94 V-0 | Coax Signal | DB B - 9W4 | 3 | Housing/Shell (Unthreaded) | Shielded | Gold | Receptacle Female Sockets | Combo D-Sub | Flash | 2 | Through Hole | Solder | 9 | 4 | 5 | |||||||||
 EDAC Inc. | Black | Polyester Thermoplastic | -55 C | 125 °C | 125 VDC | Copper Alloy | UL94 V-0 | Coax Signal | DB B - 9W4 | 3 | Housing/Shell (Unthreaded) | Shielded | Gold | Receptacle Female Sockets | Combo D-Sub | Flash | 2 | Free Hanging (In-Line) | 9 | 4 | 5 | ||||||||||
 EDAC Inc. | Black | Polyester Thermoplastic | -55 C | 125 °C | 125 VDC | Copper Alloy | UL94 V-0 | Coax Signal | DB B - 9W4 | 3 | Board Side (M3) | Shielded | Gold | Receptacle Female Sockets | Combo D-Sub | Flash | 2 | Through Hole | Solder | 9 | 4 | 5 | |||||||||
 EDAC Inc. | Black | Polyester Thermoplastic | -55 C | 125 °C | 125 VDC | Copper Alloy | UL94 V-0 | Coax Signal | DB B - 9W4 | 3 | Board Side (M3) | Shielded | Gold | Receptacle Female Sockets | Combo D-Sub | Flash | 2 | Through Hole | Solder | 9 | 4 | 5 | |||||||||
 EDAC Inc. | Black | Polyester Thermoplastic | -55 C | 125 °C | 125 VDC | Copper Alloy | UL94 V-0 | Signal and Power | DB B - 9W4 | 3 | Board Side (M3) | Board Lock Shielded | Gold | Receptacle Female Sockets | Combo D-Sub | 2 | Through Hole | Solder | 30 Áin | 0.76 Ám | Nickel Plated Steel | 4 | 5 | 20A 5A | |||||||
 EDAC Inc. | Black | Polyester Thermoplastic | -55 C | 125 °C | 125 VDC | Copper Alloy | UL94 V-0 | Signal and Power | DB B - 9W4 | 3 | Housing/Shell (Unthreaded) | Shielded | Gold | Receptacle Female Sockets | Combo D-Sub | Flash | 2 | Free Hanging (In-Line) | 4 | 5 | 20A 5A | ||||||||||
 EDAC Inc. | Black | Polyester Thermoplastic | -55 C | 125 °C | 125 VDC | Copper Alloy | UL94 V-0 | Coax Signal | DB B - 9W4 | 3 | Board Side (4-40) | Board Lock Shielded | Gold | Receptacle Female Sockets | Combo D-Sub | Flash | 2 | Through Hole | Solder | 9 | 4 | 5 | |||||||||
 EDAC Inc. | Black | Polyester Thermoplastic | -55 C | 125 °C | 125 VDC | Copper Alloy | UL94 V-0 | Signal and Power | DB B - 9W4 | 3 | Shielded | Gold | Receptacle Female Sockets | Combo D-Sub | Flash | 2 | Through Hole | Solder | 4 | 5 | 10A 5A | 4-40 | 4-40 | ||||||||
 EDAC Inc. | Black | Polyester Thermoplastic | -55 C | 125 °C | 125 VDC | Copper Alloy | UL94 V-0 | Signal and Power | DB B - 9W4 | 3 | Housing/Shell (Unthreaded) | Shielded | Gold | Receptacle Female Sockets | Combo D-Sub | 2 | Free Hanging (In-Line) | 30 Áin | 0.76 Ám | Nickel Plated Steel | 4 | 5 | 10A 5A | ||||||||
 EDAC Inc. | Black | Polyester Thermoplastic | -55 C | 125 °C | 125 VDC | Copper Alloy | UL94 V-0 | Signal and Power | DB B - 9W4 | 3 | Board Side (M3) | Shielded | Gold | Receptacle Female Sockets | Combo D-Sub | Flash | 2 | Through Hole | Solder | Nickel Plated Steel | 4 | 5 | 5 A 30 A |
