EPG.0B Series

Manufacturer: LEMO

Catalog

CONN RCPT FMALE 6POS GOLD SOLDER

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Insert Material	Current Rating (Amps)	Orientation [custom]	Contact Finish - Mating	Ingress Protection	Number of Positions	Shell Size - Insert	Shielding	Shell Finish	Color	Connector Type	Shell Material	Primary Material	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Mounting Type	Fastening Type	Features	Material Flammability Rating	Shell Size - Insert [custom]

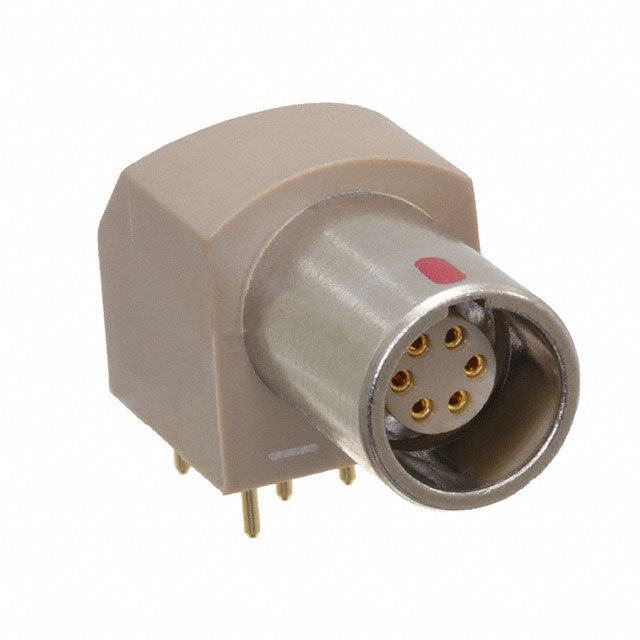

LEMO EPG.0B.306.HLN	1.5 Ám	59 Áin	Bronze	Polyetheretherketone (PEEK)	2.5 A	G	Gold	IP50 - Dust Protected	6	306	Shielded	Nickel	Brown Silver	Receptacle Female Sockets	Brass and Polyphenylene Sulfide (PPS)	Metal	-55 C	250 °C	Solder	Right Angle Through Hole	Push-Pull	Ground	UL94 V-0

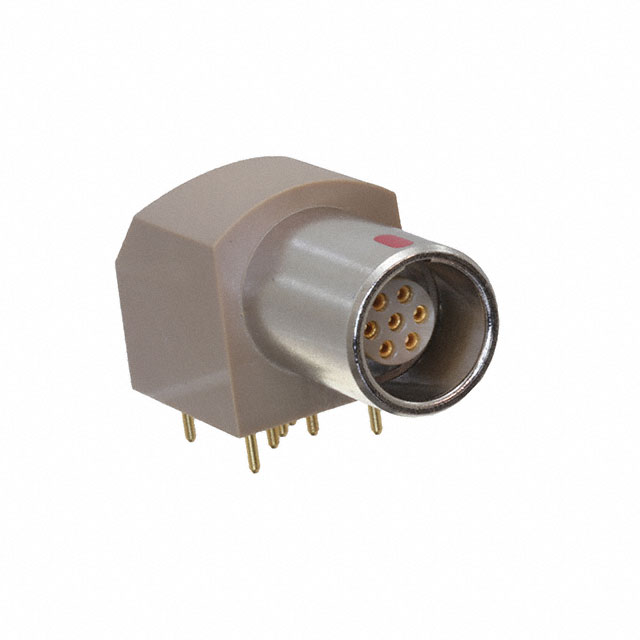

LEMO EPG.0B.307.HLN	1.5 Ám	59 Áin	Bronze	Polyetheretherketone (PEEK)	2 A	G	Gold	IP50 - Dust Protected	7		Shielded	Nickel	Brown Silver	Receptacle Female Sockets	Brass and Polyphenylene Sulfide (PPS)	Metal	-55 C	250 °C	Solder	Right Angle Through Hole	Push-Pull	Ground	UL94 V-0	307

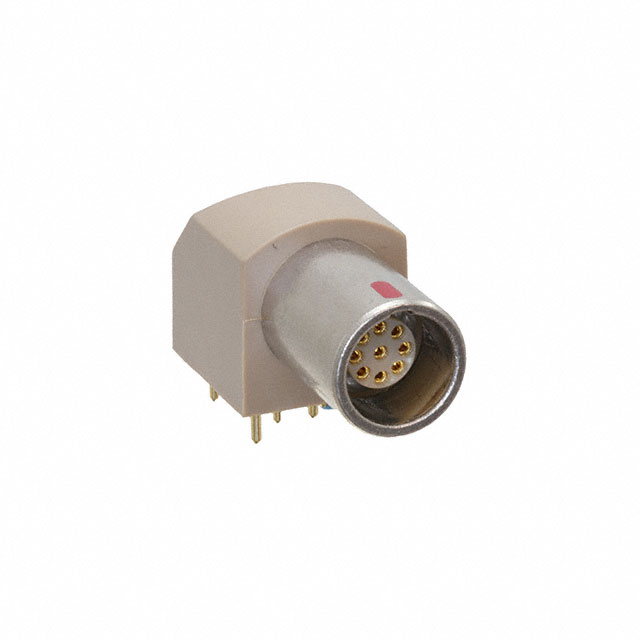

LEMO EPG.0B.309.HLN	1.5 Ám	59 Áin	Bronze	Polyetheretherketone (PEEK)	1.5 A	G	Gold	IP50 - Dust Protected	9	309	Shielded	Nickel	Brown Silver	Receptacle Female Sockets	Brass and Polyphenylene Sulfide (PPS)	Metal	-55 C	250 °C	Solder	Right Angle Through Hole	Push-Pull	Ground	UL94 V-0

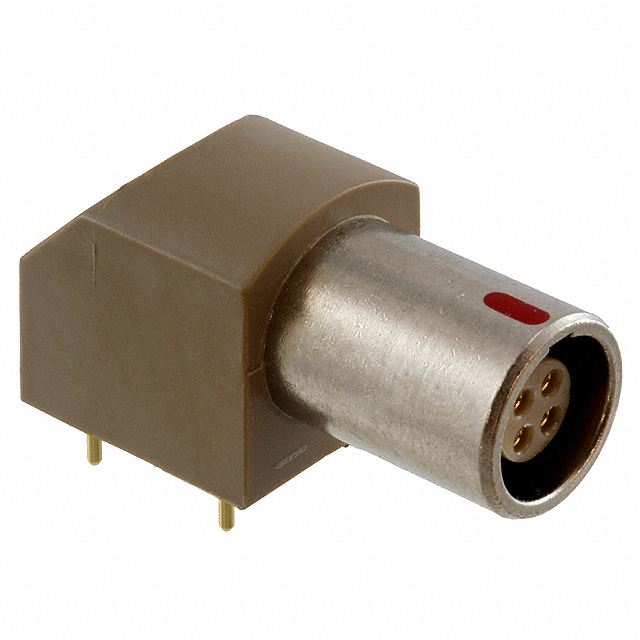

LEMO EPG.0B.304.HLN	1.5 Ám	59 Áin	Bronze	Polyetheretherketone (PEEK)	4.5 A	G	Gold	IP50 - Dust Protected	4	304	Shielded	Nickel	Brown Silver	Receptacle Female Sockets	Brass and Polyphenylene Sulfide (PPS)	Metal	-55 C	250 °C	Solder	Right Angle Through Hole	Push-Pull	Ground	UL94 V-0
LEMO EPG.0B.304.HLNS	1.5 Ám	59 Áin	Bronze	Polyetheretherketone (PEEK)	4.5 A	G	Gold	IP50 - Dust Protected	4	304	Shielded	Nickel	Brown Silver	Receptacle Female Sockets	Brass and Polyphenylene Sulfide (PPS)	Metal	-55 C	250 °C	Solder	Right Angle Through Hole	Push-Pull	Board Lock	UL94 V-0
LEMO EPG.0B.307.HLNS	1.5 Ám	59 Áin	Bronze	Polyetheretherketone (PEEK)	2 A	G	Gold	IP50 - Dust Protected	7		Shielded	Nickel	Brown Silver	Receptacle Female Sockets	Brass and Polyphenylene Sulfide (PPS)	Metal	-55 C	250 °C	Solder	Right Angle Through Hole	Push-Pull	Board Lock	UL94 V-0	307

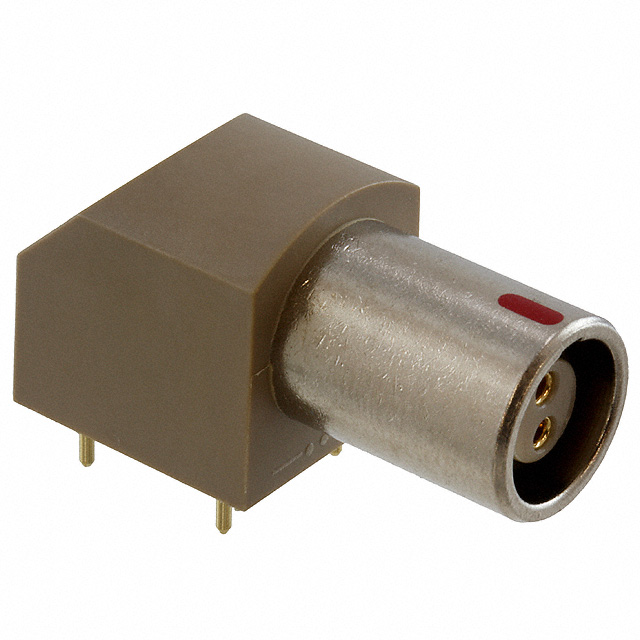

LEMO EPG.0B.302.HLN	1.5 Ám	59 Áin	Bronze	Polyetheretherketone (PEEK)	4.5 A	G	Gold	IP50 - Dust Protected	2	302	Shielded	Nickel	Brown Silver	Receptacle Female Sockets	Brass and Polyphenylene Sulfide (PPS)	Metal	-55 C	250 °C	Solder	Right Angle Through Hole	Push-Pull	Ground	UL94 V-0

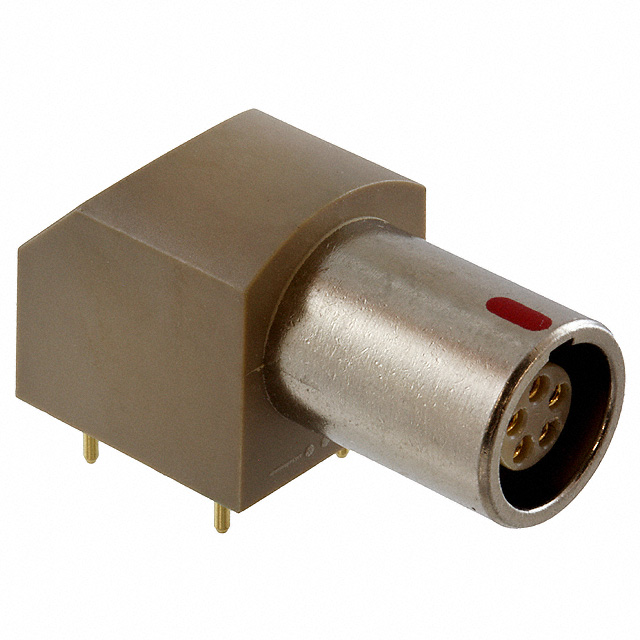

LEMO EPG.0B.305.HLN	1.5 Ám	59 Áin	Bronze	Polyetheretherketone (PEEK)	4.5 A	G	Gold	IP50 - Dust Protected	5	305	Shielded	Nickel	Brown Silver	Receptacle Female Sockets	Brass and Polyphenylene Sulfide (PPS)	Metal	-55 C	250 °C	Solder	Right Angle Through Hole	Push-Pull	Ground	UL94 V-0
LEMO EPG.0B.302.HLNZY	1.5 Ám	59 Áin	Bronze	Polyetheretherketone (PEEK)	4.5 A	G	Gold	IP50 - Dust Protected	2	302	Shielded	Nickel	Brown Silver	Receptacle Female Sockets	Brass and Polyphenylene Sulfide (PPS)	Metal	-55 C	250 °C	Solder	Right Angle Through Hole	Push-Pull	Ground	UL94 V-0
