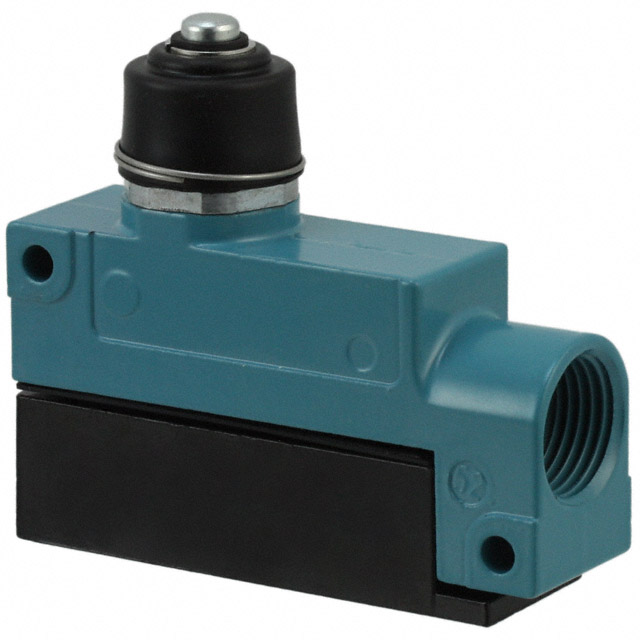

BZG1 Series

Catalog

SWITCH SNAP ACTION SPDT 15A 125V

Part	Differential Travel	Differential Travel	Features	Release Force	Switch Function	Current Rating (Amps)	Overtravel	Overtravel	Circuit	Voltage Rating - DC	Operating Position	Operating Position	Pretravel	Pretravel	Termination Style	Actuator Type	Mounting Type	Voltage Rating - AC	Operating Force [Min]	Operating Force [Max]
Honeywell Sensing and Productivity Solutions BZG1-2RN	0.002 in	0.05 mm	Actuator Seal Boot	113 gf	On-Mom	15 A 500 mA	5.6 mm	0.219 in	SPDT	125 VDC	1.369 in	34.8 mm	0.078 "	2 mm	Screw Terminal	Round (Pin Plunger)	Chassis Mount	125 V

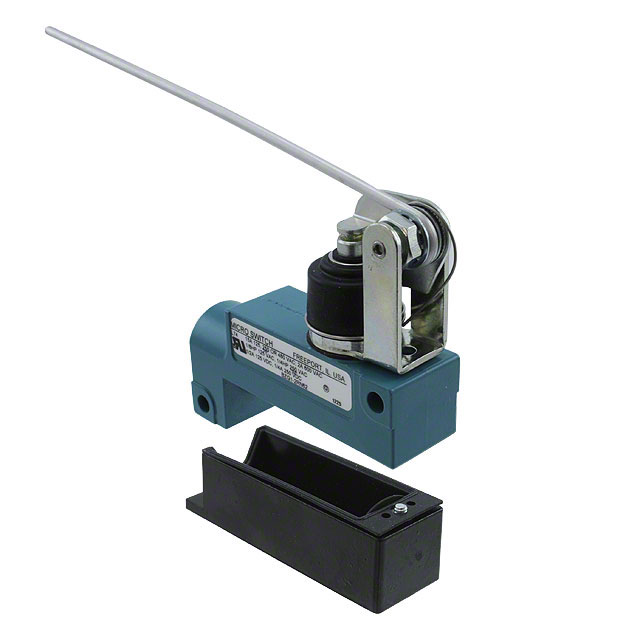

Honeywell Sensing and Productivity Solutions BZG1-2RN62	0.229 in	5.8 mm	Actuator Seal Boot	28 gf	On-Mom	15 A 500 mA	21.3 mm	0.838 in	SPDT	125 VDC			0.718 in	18.2 mm	Screw Terminal	Adjustable Rod	Chassis Mount	125 V	85 gf	198 gf
Honeywell Sensing and Productivity Solutions BZG1-2RN234	0.006 in	0.15 mm	Actuator Seal Boot	283 gf	On-Mom	15 A 500 mA	5.6 mm	0.219 in	SPDT	125 VDC			0.188 in	4.8 mm	Screw Terminal	Lever Roller	Chassis Mount	125 V	397 gf	737 gf
Honeywell Sensing and Productivity Solutions BZG1-2RN34	0.002 in	0.05 mm	Actuator Seal Boot	283 gf	On-Mom	15 A 500 mA	5.6 mm	0.219 in	SPDT	125 VDC	1.369 in	34.8 mm	0.078 "	2 mm	Screw Terminal	Round (Pin Plunger)	Chassis Mount	125 V	425 gf	1106 gf
