M80-4C1 Series

Catalog

2+2 POS. FEMALE DIL 24-28AWG CABLE CONN. KIT, 101LOK ROHS COMPLIANT: YES

Part	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Wire Gauge [Min]	Wire Gauge [Max]	Contact Finish	Number of Rows [custom]	Cable Termination	Number of Positions	Pitch [x]	Pitch [x]	Row Spacing	Row Spacing	Features	Wire Type	Connector Type	Mounting Type	Color	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]

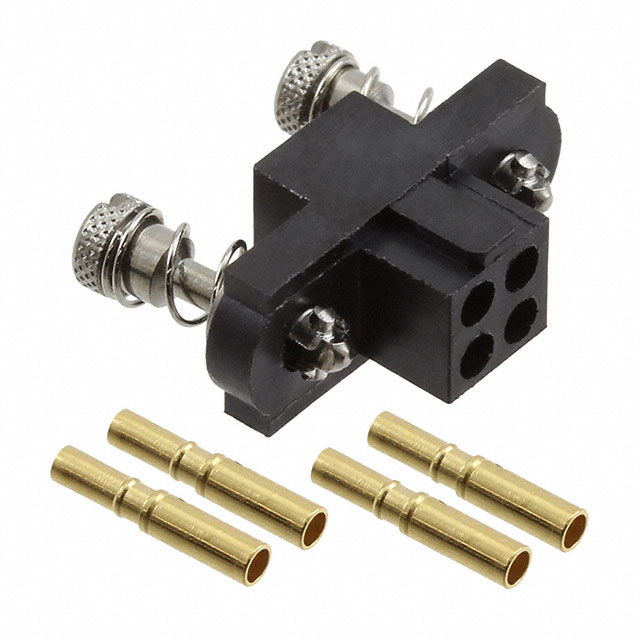

Harwin Inc. M80-4C10405FC	Female Socket	0.3 Ám	11.8 Áin	24 AWG	28 AWG	Gold	2	Crimp	4	0.079 in	2 mm	2 mm	0.079 in	Jackscrews Polarizing Key	Discrete	Receptacle	Free Hanging (In-Line)	Black
Harwin Inc. M80-4C10205F1-04-325-00-000	Female Socket	0.3 Ám	11.8 Áin	24 AWG	28 AWG	Gold	2	Crimp	6					Jackscrews	Discrete	Receptacle	Free Hanging (In-Line)	Black

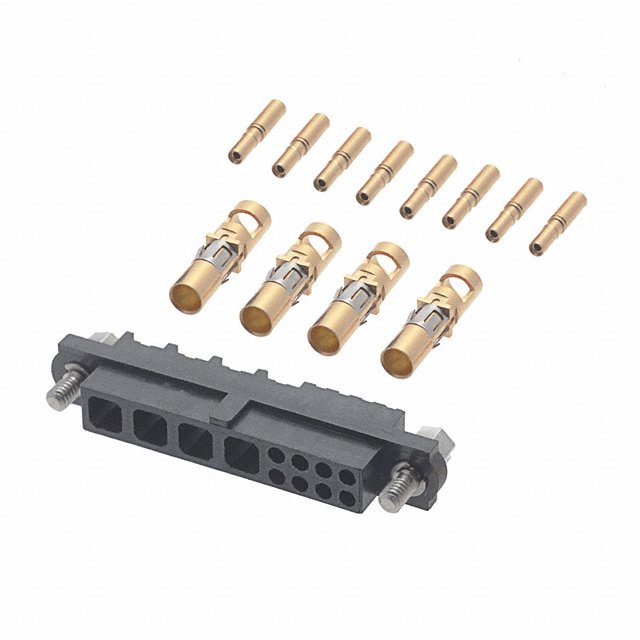

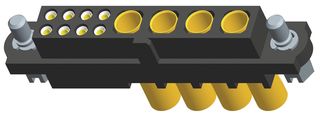

Harwin Inc. M80-4C10805F1-04-325-00-000	Female Socket	0.3 Ám	11.8 Áin	24 AWG	28 AWG	Gold	2	Crimp						Jackscrews	Discrete	Receptacle	Free Hanging (In-Line)	Black	4	8
Harwin Inc. M80-4C10805F1-02-325-00-000	Female Socket	0.3 Ám	11.8 Áin	24 AWG	28 AWG	Gold	2	Crimp	10					Jackscrews	Discrete	Receptacle	Free Hanging (In-Line)	Black

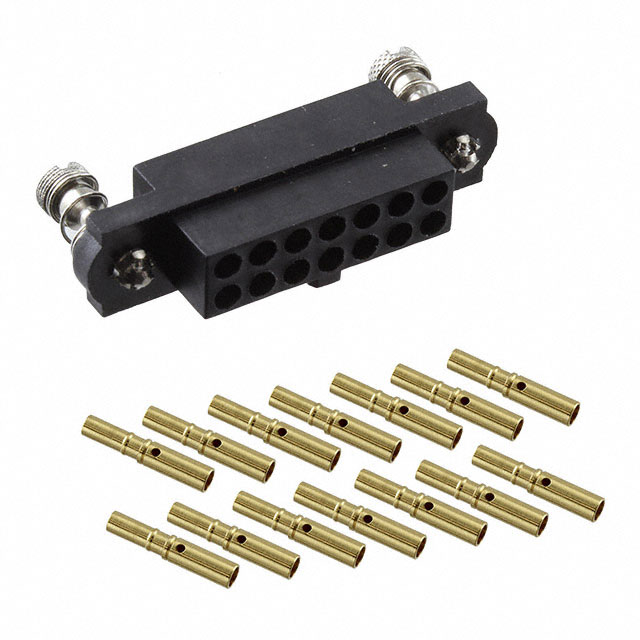

Harwin Inc. M80-4C11405FC	Female Socket	0.3 Ám	11.8 Áin	24 AWG	28 AWG	Gold	2	Crimp	14	0.079 in	2 mm	2 mm	0.079 in	Jackscrews Polarizing Key	Discrete	Receptacle	Free Hanging (In-Line)	Black
Harwin Inc. M80-4C13442FC	Female Socket	0.3 Ám	11.8 Áin	24 AWG	28 AWG	Gold	2	Crimp		0.079 in	2 mm	2 mm	0.079 in	Jackscrews Polarizing Key	Discrete	Receptacle	Free Hanging (In-Line)	Black			34
Harwin Inc. M80-4C12005FC	Female Socket	0.3 Ám	11.8 Áin	24 AWG	28 AWG	Gold	2	Crimp	20	0.079 in	2 mm	2 mm	0.079 in	Jackscrews Polarizing Key	Discrete	Receptacle	Free Hanging (In-Line)	Black

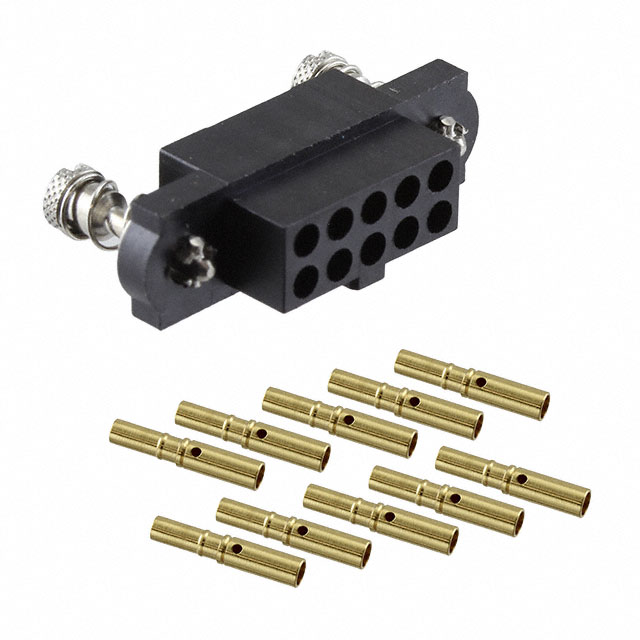

Harwin Inc. M80-4C11005FC	Female Socket	0.3 Ám	11.8 Áin	24 AWG	28 AWG	Gold	2	Crimp	10	0.079 in	2 mm	2 mm	0.079 in	Jackscrews Polarizing Key	Discrete	Receptacle	Free Hanging (In-Line)	Black
Harwin Inc. M80-4C12605FC	Female Socket	0.3 Ám	11.8 Áin	24 AWG	28 AWG	Gold	2	Crimp	26	0.079 in	2 mm	2 mm	0.079 in	Jackscrews Polarizing Key	Discrete	Receptacle	Free Hanging (In-Line)	Black
Harwin Inc. M80-4C11205F1-02-325-00-000	Female Socket	0.3 Ám	11.8 Áin	24 AWG	28 AWG	Gold	2	Crimp	14					Jackscrews	Discrete	Receptacle	Free Hanging (In-Line)	Black
