902-0091 Series
Manufacturer: ROBOTIS
Beta
⌘K

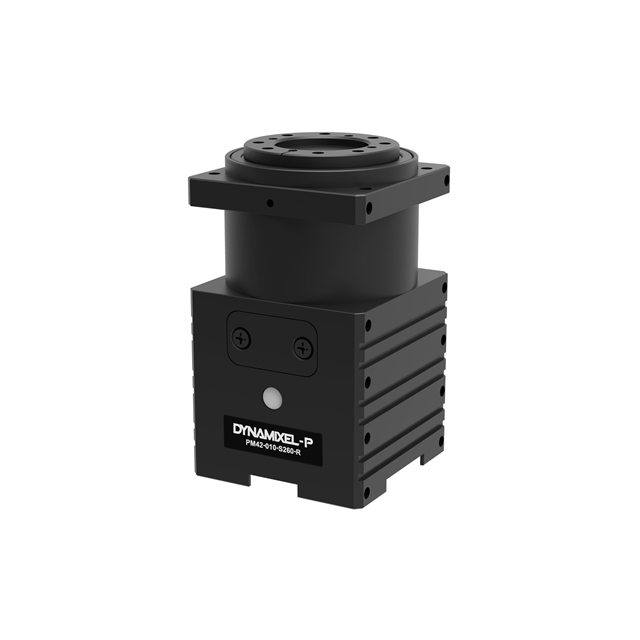

PM42-010-S260-R DYNAMIXEL SERVO
| Part | Voltage - Rated | RPM | Function | Torque - Rated (oz-in / mNm) | Torque - Rated (oz-in / mNm) | Features | Motor Type | Weight | Weight | Type | Power - Rated | Encoder Type | Termination Style | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension | Size / Dimension [x] | Size / Dimension [y] | Operating Temperature [Max] | Operating Temperature [Min] | Gear Reduction Ratio |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ROBOTIS | 24 VDC | 28 RPM | Servomotor | 240.7 oz-in | 1700 mNm | Integrated Controller | Brushed | 0.595 lb | 270 g | DC Motor | 10 W | Absolute | Connector | 72 mm | 1.653 in | Rectangular | 2.834 in | 42 mm | 55 °C | -5 °C | 257.02 |
