M2T13SA Series

Catalog

SWITCH TOGGLE SPDT 6A 125V

Part	Electrical Life	Actuator Material	Termination Style	Switch Function	Actuator Length [x]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - AC	Voltage Rating - DC	Current Rating (Amps)	Actuator Type	Circuit	Bushing Thread	Mounting Type	Illumination	Features
NKK Switches M2T13SA5W03/UC	25000 Steps	Brass Chrome Plated	PC Pin	On-Off-On	0.5 in	85 °C	-30 ░C	125 V	30 V	3 A 6 A	Standard Round	SPDT	Unthreaded	Through Hole	Non-Illuminated	Process Sealed
NKK Switches M2T13SA5W03/U	25000 Steps	Brass Chrome Plated	PC Pin	On-Off-On	0.5 in	85 °C	-30 ░C	125 V	30 V	3 A 6 A	Standard Round	SPDT	Unthreaded	Through Hole	Non-Illuminated	Process Sealed
NKK Switches M2T13SA5G03	50000 Cycles	Brass Nickel Plated	PC Pin	On-Off-On	0.5 in	85 °C	-30 ░C	28 V	28 V	0.4 VA	Standard Round	SPDT	Unthreaded	Through Hole	Non-Illuminated	Process Sealed
NKK Switches M2T13SA5A13	25000 Steps	Brass Nickel Plated	PC Pin	On-Off-On	0.5 in	85 °C	-30 ░C	125 V	30 V	3 A 6 A	Standard Round	SPDT	Unthreaded	Through Hole	Non-Illuminated	Process Sealed
NKK Switches M2T13SA5W05	25000 Steps	Brass Nickel Plated	PC Pin	On-Off-On	0.5 in	85 °C	-30 ░C	125 V	30 V	3 A 6 A	Standard Round	SPDT	Unthreaded	Through Hole	Non-Illuminated	Process Sealed

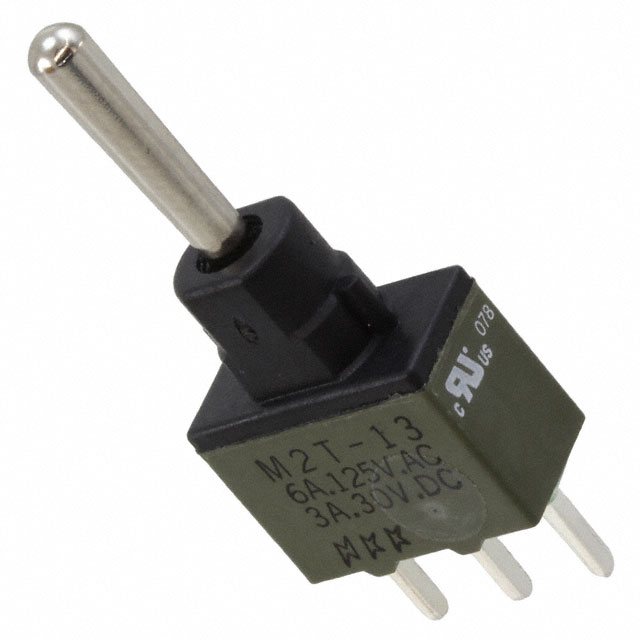

NKK Switches M2T13SA5W03/CUL	25000 Steps	Brass Chrome Plated	PC Pin	On-Off-On	0.5 in	85 °C	-30 ░C	125 V	30 V	3 A 6 A	Standard Round	SPDT	Unthreaded	Through Hole	Non-Illuminated	Process Sealed
NKK Switches M2T13SA5W03	25000 Steps	Brass Nickel Plated	PC Pin	On-Off-On	0.5 in	85 °C	-30 ░C	125 V	30 V	3 A 6 A	Standard Round	SPDT	Unthreaded	Through Hole	Non-Illuminated	Process Sealed
NKK Switches M2T13SA5W40	25000 Steps	Brass Nickel Plated	PC Pin	On-Off-On	0.5 in	85 °C	-30 ░C	125 V	30 V	3 A 6 A	Standard Round	SPDT	Unthreaded	Right Angle Through Hole Vertical	Non-Illuminated	Process Sealed
