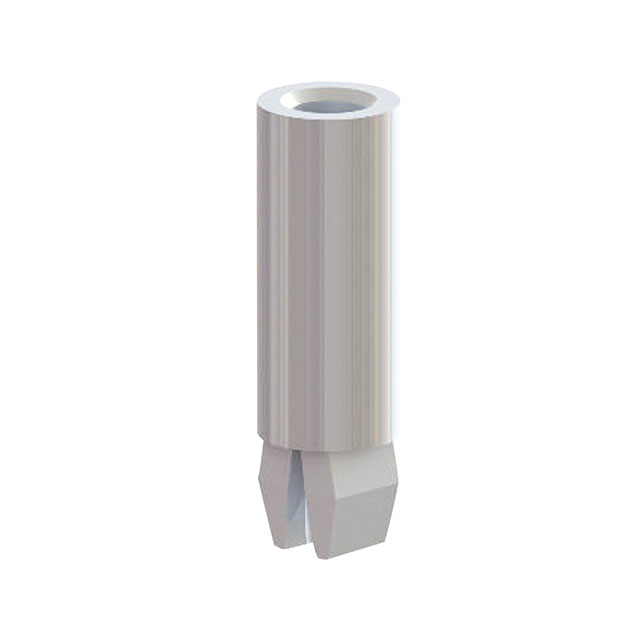

MSNE Series

Catalog

BRD SPT SCREW MNT SNAP LOCK 8MM

Part	Holding Type	Material	Between Board Height	Between Board Height	Mounting Panel Thickness	Mounting Panel Thickness [custom]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Length - Overall [x]	Length - Overall [x]	Mounting Type	Between Board Height	Length - Overall	Length - Overall	Between Board Height [z]	Between Board Height [z]
Essentra Components MSNE-8M-01	Screw Mount	Nylon	0.315 in	8 mm	1.6 mm	0.063 in	4.3 mm	0.169 in	0.531 in	13.5 mm	Snap Lock
Essentra Components MSNE-8-01	Screw Mount	Nylon	0.5 in	12.7 mm	1.6 mm	0.063 in	4.3 mm	0.169 in	0.717 "	18.2 mm	Snap Lock	0.5 in
Essentra Components MSNE-3-01	Screw Mount	Nylon	0.188 in	0.1875 in	1.6 mm	0.063 in	4.3 mm	0.169 in			Snap Lock		0.404 in	10.25 mm
Essentra Components MSNE-12M-01	Screw Mount	Nylon	0.472 in	12 mm	1.6 mm	0.063 in	4.3 mm	0.169 in	0.689 in	17.5 mm	Snap Lock
Essentra Components MSNE-2-01	Screw Mount	Nylon	0.125 in	3.18 mm	1.6 mm	0.063 in	4.3 mm	0.169 in	0.342 "	8.68 mm	Snap Lock	0.125 in
Essentra Components MSNE-6M-01	Screw Mount	Nylon	0.236 in	6 mm	1.6 mm	0.063 in	4.3 mm	0.169 in	0.453 "	11.5 mm	Snap Lock
Essentra Components MSNE-4M-01	Screw Mount	Nylon	0.157 in	4 mm	1.6 mm	0.063 in	4.3 mm	0.169 in	0.374 in	9.5 mm	Snap Lock
Essentra Components MSNE-10M-01	Screw Mount	Nylon			1.6 mm	0.063 in	4.3 mm	0.169 in	0.61 in	15.5 mm	Snap Lock				0.394 in	10 mm
