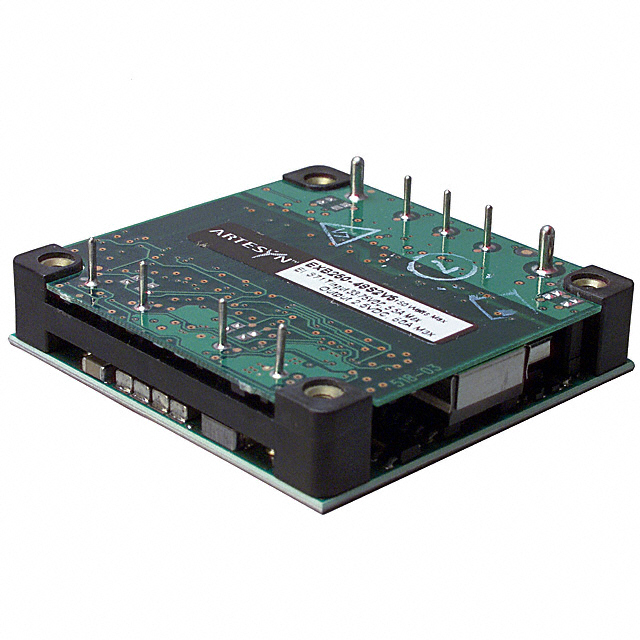

EXB250 Series

Catalog

DC DC CONVERTER 5V 165W

Part	Features	Voltage - Output 1	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Type	Voltage - Input (Max) [Max]	Efficiency	Number of Outputs	Mounting Type	Voltage - Input (Min) [Min]	Power (Watts)	Voltage - Isolation	Package / Case	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Current - Output (Max) [Max]
ARTESYN / Advanced Energy EXB250-48S05-RJ	OCP OVP Remote On/Off SCP UVLO	5 V	ITE (Commercial)	-40 C	100 °C	Isolated Module	75 V	91.7 %	1	Through Hole	33 V	165 W	1.5 kV	9-DIP Module 1/2 Brick	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	33 A
ARTESYN / Advanced Energy EXB250-48S12J	OCP OVP Remote On/Off SCP UVLO	12 V	ITE (Commercial)	-40 C	100 °C	Isolated Module	75 V	92 %	1	Through Hole	33 V	165 W	1.5 kV	Half Brick	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	13.75 A
ARTESYN / Advanced Energy EXB250-48S3V3-RJ	OCP OVP Remote On/Off SCP UVLO	3.3 V	ITE (Commercial)	-40 C	100 °C	Isolated Module	75 V	90 %	1	Through Hole	33 V	165 W	1.5 kV	9-DIP Module 1/2 Brick	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	50 A
