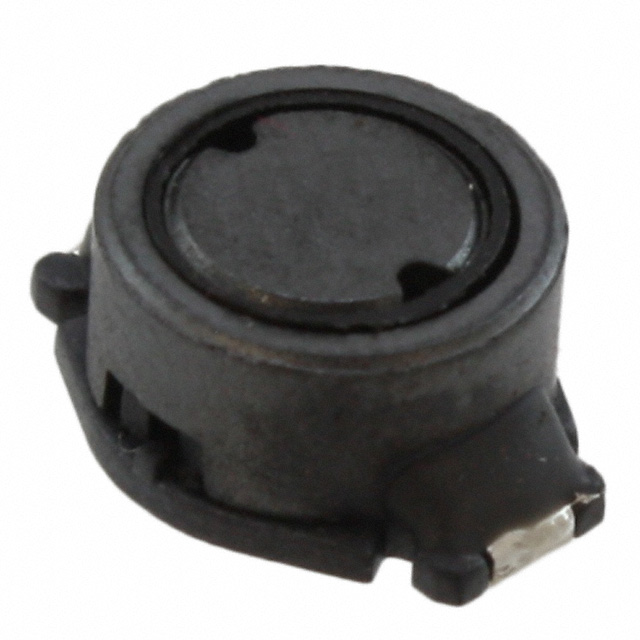

SRR0805 Series

Catalog

MAGNETICS - SHIELDED POWER INDUCTOR /TAPE & REEL - 13" REEL

Part	Tolerance	Inductance Frequency - Test	Type	Package / Case	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Material - Core	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Inductance	Shielding	DC Resistance (DCR) [Max]	Frequency - Self Resonant	Current - Saturation (Isat)	Q @ Freq [custom]	Q @ Freq [custom]	Current Rating (Amps)	Q @ Freq	DC Resistance (DCR)	Q @ Freq [custom]
Bourns Inc. SRR0805-6R8M	20 %	1 kHz	Drum Core Wirewound	Nonstandard	Surface Mount	125 °C	-40 C	0.185 "	4.7 mm	Ferrite	0.315 in	10.5 mm	0.413 in	8 mm	6.8 µH	Shielded
Bourns Inc. SRR0805-8R2M	20 %	1 kHz	Drum Core Wirewound	Nonstandard	Surface Mount	125 °C	-40 C	0.185 "	4.7 mm	Ferrite	0.315 in	10.5 mm	0.413 in	8 mm	8.2 µH	Shielded	80 mOhm	32 MHz	2.5 A	19	7.96 MHz	1.75 A
Bourns Inc. SRR0805-5R6M	20 %	1 kHz	Drum Core Wirewound	Nonstandard	Surface Mount	125 °C	-40 C	0.185 "	4.7 mm	Ferrite	0.315 in	10.5 mm	0.413 in	8 mm	5.6 µH	Shielded	65 mOhm	40 MHz	3.2 A	20	7.96 MHz	1.95 A
Bourns Inc. SRR0805-221K	10 %	1 kHz	Drum Core Wirewound	Nonstandard	Surface Mount	125 °C	-40 C	0.185 "	4.7 mm	Ferrite	0.315 in	10.5 mm	0.413 in	8 mm	220 µH	Shielded	1.18 Ohm	4.5 MHz	550 mA			0.3 A	38 796 kHz
Bourns Inc. SRR0805-121K	10 %	1 kHz	Drum Core Wirewound	Nonstandard	Surface Mount	125 °C	-40 C	0.185 "	4.7 mm	Ferrite	0.315 in	10.5 mm	0.413 in	8 mm		Shielded	750 mOhm	7 MHz	660 mA			0.45 A	42 796 kHz
Bourns Inc. SRR0805-680K	10 %	1 kHz	Drum Core Wirewound	Nonstandard	Surface Mount	125 °C	-40 C	0.185 "	4.7 mm	Ferrite	0.315 in	10.5 mm	0.413 in	8 mm	68 µH	Shielded	440 mOhm	9 MHz	900 mA			600 mA	2.52 MHz 28
Bourns Inc. SRR0805-561K	10 %	1 kHz	Drum Core Wirewound	Nonstandard	Surface Mount	125 °C	-40 C	0.185 "	4.7 mm	Ferrite	0.315 in	10.5 mm	0.413 in	8 mm	560 µH	Shielded	3 Ohm	3 MHz	340 mA			0.18 A	32 796 kHz
Bourns Inc. SRR0805-470Y	15 %	1 kHz	Drum Core Wirewound	Nonstandard	Surface Mount	125 °C	-40 C	0.185 "	4.7 mm	Ferrite	0.315 in	10.5 mm	0.413 in	8 mm	47 µH	Shielded	280 mOhm	10.5 MHz	1 A			750 mA	2.52 MHz 32
Bourns Inc. SRR0805-2R2M	20 %	1 kHz	Drum Core Wirewound	Nonstandard	Surface Mount	125 °C	-40 C	0.185 "	4.7 mm	Ferrite	0.315 in	10.5 mm	0.413 in	8 mm	2.2 µH	Shielded		75 MHz	4.9 A			2.5 A	7.96 MHz 18	40 mOhm
Bourns Inc. SRR0805-151K	10 %	1 kHz	Drum Core Wirewound	Nonstandard	Surface Mount	125 °C	-40 C	0.185 "	4.7 mm	Ferrite	0.315 in	10.5 mm	0.413 in	8 mm	150 µH	Shielded		6.5 MHz	640 mA	39		400 mA			796 kHz
