TPS22949 Series
Manufacturer: Texas Instruments
Beta
⌘K
1.62V~4.5V 300MΩ ACTIVE HIGH 100MA 2 LOAD SWITCH DSBGA-8(1.9X1.9) POWER DISTRIBUTION SWITCHES ROHS
| Part | Ratio - Input:Output [custom] | Fault Protection | Current - Output (Max) [Max] | Voltage - Supply (Vcc/Vdd) | Output Type | Input Type | Features | Output Configuration | Voltage - Load [Max] | Voltage - Load [Min] | Switch Type | Mounting Type | Interface | Rds On (Typ) | Package / Case | Operating Temperature [custom] | Number of Outputs | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 1:1 | Current Limiting (Fixed) Over Temperature | 100 mA | P-Channel | Non-Inverting | Auto Restart Load Discharge | High Side | 4.5 V | 1.62 V | General Purpose | Surface Mount | On/Off | 300 mOhm | 8-XFBGA DSBGA | -40 °C 105 °C | 2 | 8-DSBGA | |
 Texas Instruments | 1:1 | Current Limiting (Fixed) Over Temperature | 100 mA | P-Channel | Non-Inverting | Auto Restart Load Discharge | High Side | 4.5 V | 1.62 V | General Purpose | Surface Mount | On/Off | 300 mOhm | 8-XFBGA DSBGA | -40 °C 105 °C | 2 | 8-DSBGA | |

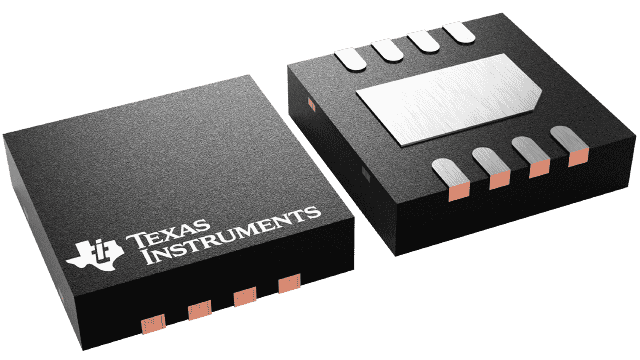

 Texas Instruments | 1:1 | Current Limiting (Fixed) Over Temperature | 100 mA | P-Channel | Non-Inverting | Auto Restart Load Discharge | High Side | 4.5 V | 1.62 V | General Purpose | Surface Mount | On/Off | 400 mOhm | 8-WFDFN Exposed Pad | -40 °C 105 °C | 2 | 8-SON (3x3) |
