M2T12S4 Series

Catalog

SWITCH TOGGLE SPDT 6A 125V

Part	Electrical Life	Actuator Material	Actuator Length [x]	Voltage Rating - AC	Bushing Thread	Features	Switch Function	Illumination	Actuator Type	Termination Style	Circuit	Voltage Rating - DC	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type
NKK Switches M2T12S4A5W13	25000 Steps	Brass Nickel Plated	7.62 mm	125 V	Unthreaded	Process Sealed	On-On	Non-Illuminated	Standard Round	PC Pin	SPDT	30 V	4 A 6 A	85 °C	-30 ░C	Through Hole
NKK Switches M2T12S4A5A03	25000 Steps	Brass Nickel Plated	7.62 mm	125 V	Unthreaded	Process Sealed	On-On	Non-Illuminated	Standard Round	PC Pin	SPDT	30 V	4 A 6 A	85 °C	-30 ░C	Through Hole
NKK Switches M2T12S4A5G40/UC	50000 Cycles	Brass Chrome Plated	7.62 mm	28 V	Unthreaded	Process Sealed	On-On	Non-Illuminated	Standard Round	PC Pin	SPDT	28 V	0.4 VA	85 °C	-30 ░C	Right Angle Through Hole Vertical

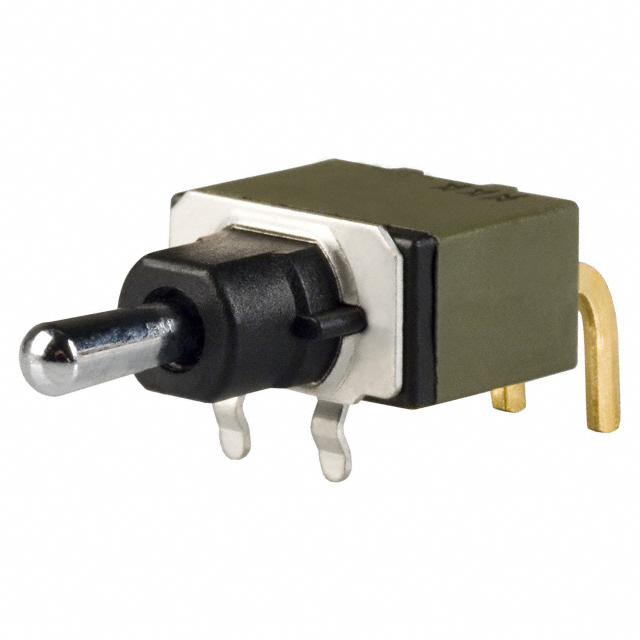

NKK Switches M2T12S4A5G30	50000 Cycles	Brass Nickel Plated	7.62 mm	28 V	Unthreaded	Process Sealed	On-On	Non-Illuminated	Standard Round	PC Pin	SPDT	28 V	0.4 VA	85 °C	-30 ░C	Right Angle Through Hole
NKK Switches M2T12S4A5W40/U	25000 Steps	Brass Chrome Plated	7.62 mm	125 V	Unthreaded	Process Sealed	On-On	Non-Illuminated	Standard Round	PC Pin	SPDT	30 V	4 A 6 A	85 °C	-30 ░C	Right Angle Through Hole Vertical
NKK Switches M2T12S4A5W30/U	25000 Steps	Brass Nickel Plated	7.62 mm	125 V	Unthreaded	Process Sealed	On-On		Standard Round	PC Pin	SPDT		6 A	85 °C	-30 ░C	Right Angle Through Hole

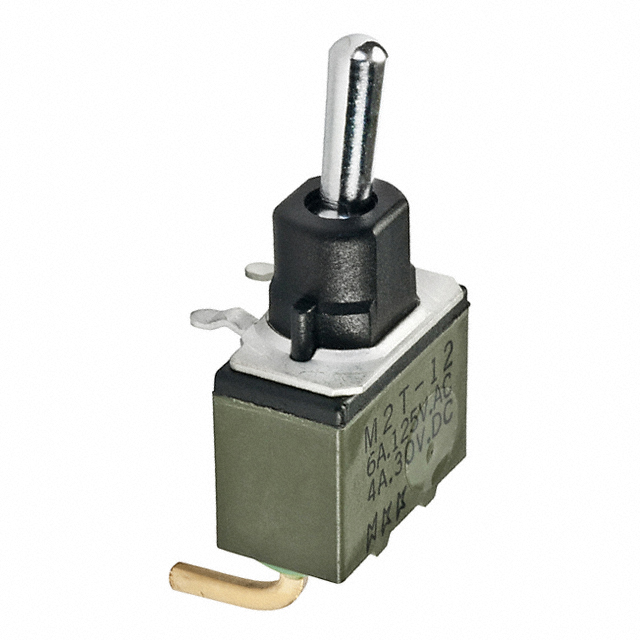

NKK Switches M2T12S4A5A30	25000 Steps	Brass Nickel Plated	7.62 mm	125 V	Unthreaded	Process Sealed	On-On	Non-Illuminated	Standard Round	PC Pin	SPDT	30 V	4 A 6 A	85 °C	-30 ░C	Right Angle Through Hole
