2327678 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

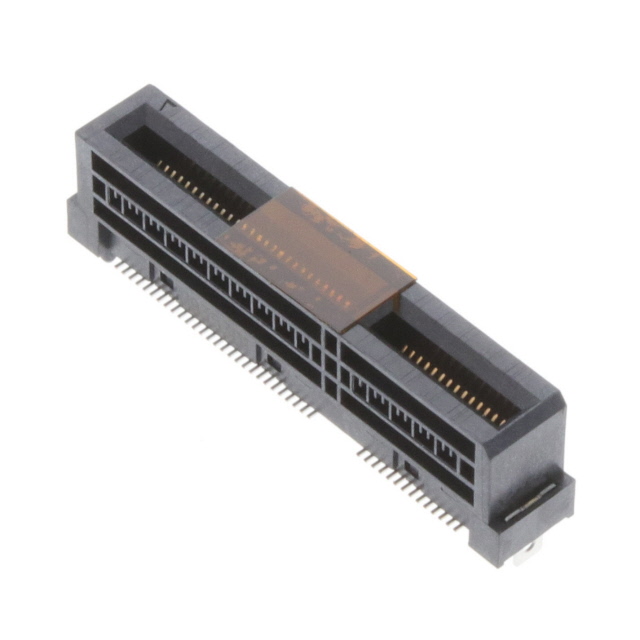

RECEPTACLE ASSY, 84 P, VERT, SLIVER 2.0
| Part | Material - Insulation | Card Type | Read Out | Termination | Number of Positions | Card Thickness | Card Thickness | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Gender | Number of Rows | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Color | Contact Finish | Features | Pitch [x] | Pitch [x] | Contact Material | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Liquid Crystal Polymer (LCP) | Non Specified - Dual Edge | Dual | Solder | 84 | 0.062 in | 1.57 mm | 28 | 14 | Female | 2 | 85 °C | -55 °C | Surface Mount | Black | Gold | Board Guide Pick and Place Solder Retention | 0.6 mm | 0.024 in | Copper Alloy | 0.76 Ám | 30 Áin |
 TE Connectivity Raychem Cable Protection | Liquid Crystal Polymer (LCP) | Non Specified - Dual Edge | Dual | Solder | 84 | 0.062 in | 1.57 mm | 28 | 14 | Female | 2 | 85 °C | -55 °C | Surface Mount | Black | Gold | Board Guide Pick and Place Solder Retention | 0.6 mm | 0.024 in | Copper Alloy | 0.38 µm | 15 µin |
