Positive Lock 110 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
QUICK DISCONNECT TERMINAL 16-20AWG PHOSPHOR BRONZE F 18.2MM PRE-TIN LOOSE
| Part | Insulation Diameter [Max] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Insulation Diameter [Min] [diameter] | Length - Overall [x] | Length - Overall [x] | Wire Gauge [Max] | Wire Gauge [Min] | Gender | Mounting Type | Contact Material | Tab Thickness | Tab Thickness | Contact Finish | Insulation | Tab Width | Tab Width | Terminal Type | Termination | Tab Length | Tab Length | Stacking Direction | For Use With/Related Products | For Use With/Related Products | Style | Color | Terminal Size | Terminal Size | Number of Positions | Insulation Diameter [Max] | Insulation Diameter [Max] | Insulation Diameter [Min] | Insulation Diameter [Min] | Length - Overall | Length - Overall | Accessory Type | Note | Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

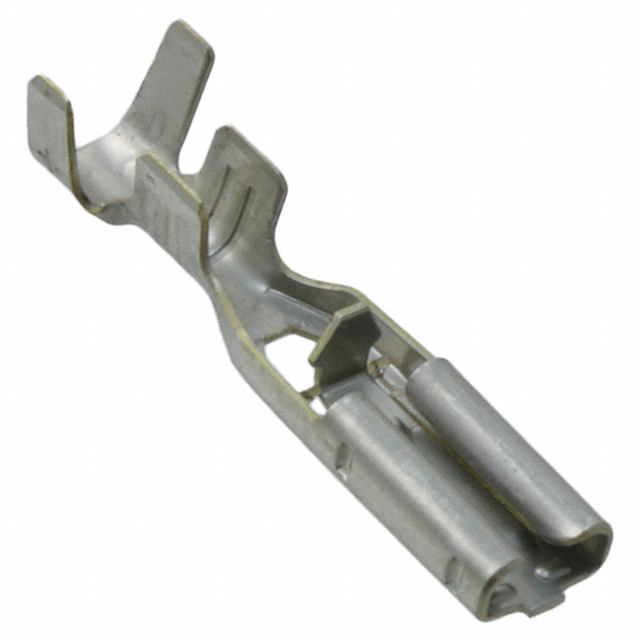

 TE Connectivity AMP Connectors | 3.1 mm | 0.122 " | 0.08 in | 2.03 mm | 17.2 mm | 0.677 " | 20 AWG | 16 AWG | Female | Free Hanging (In-Line) | Phosphor Bronze | 0.02 in | 0.51 mm | Tin | Non-Insulated | 0.11 " | 2.79 mm | Standard | Crimp | 6 mm | 0.236 in | |||||||||||||||||

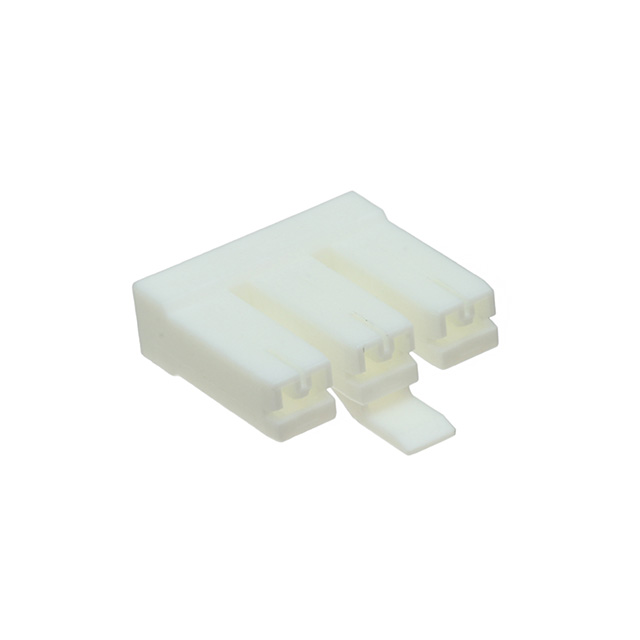

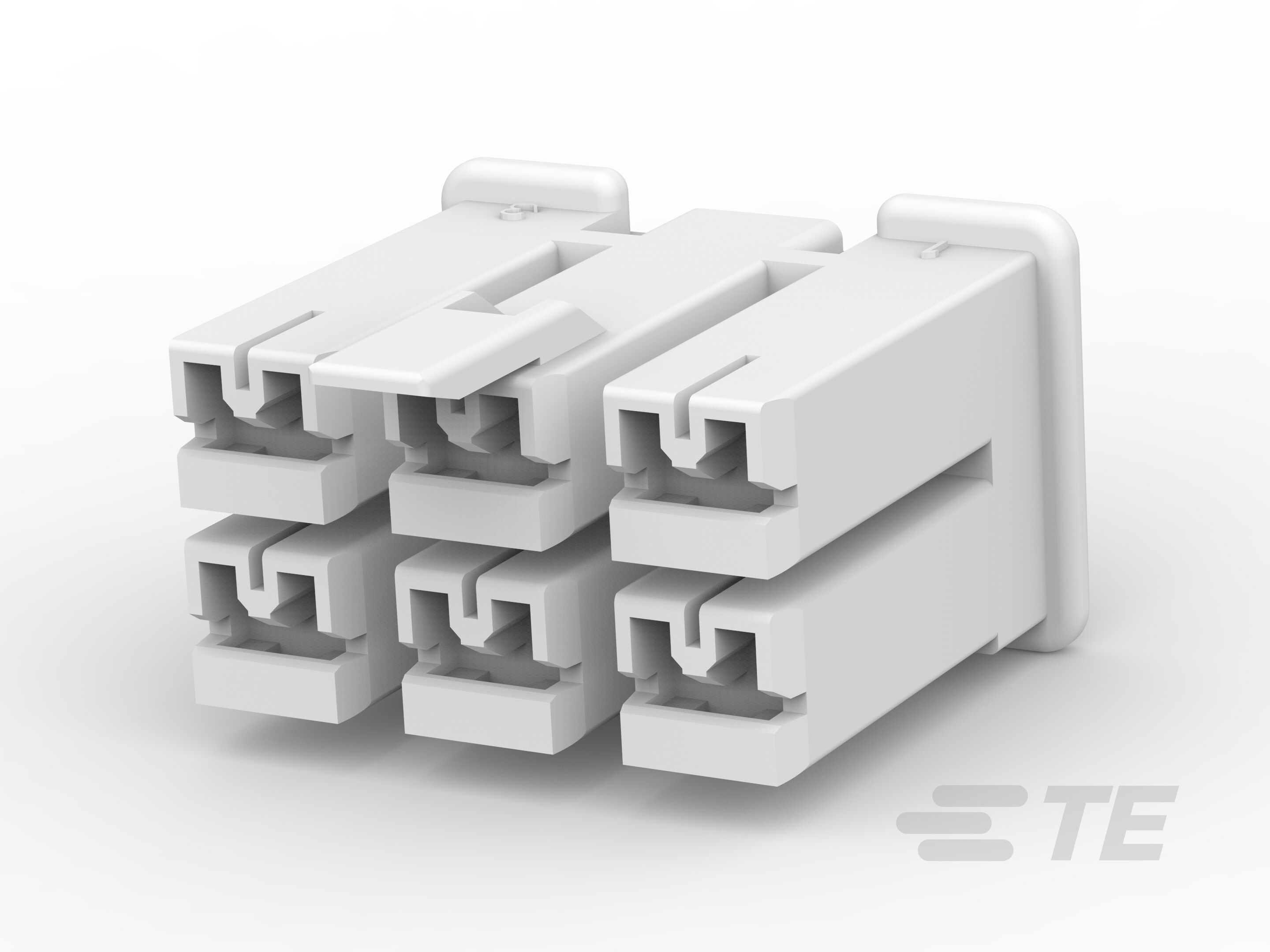

 TE Connectivity AMP Connectors | Receptacle | Free Hanging (In-Line) | Quick Connect Disconnect | Top to Bottom and Side to Side | 0.11 in | 2.79 mm | Housing | Natural | 0.11 in | 2.79 mm | 6 | |||||||||||||||||||||||||||

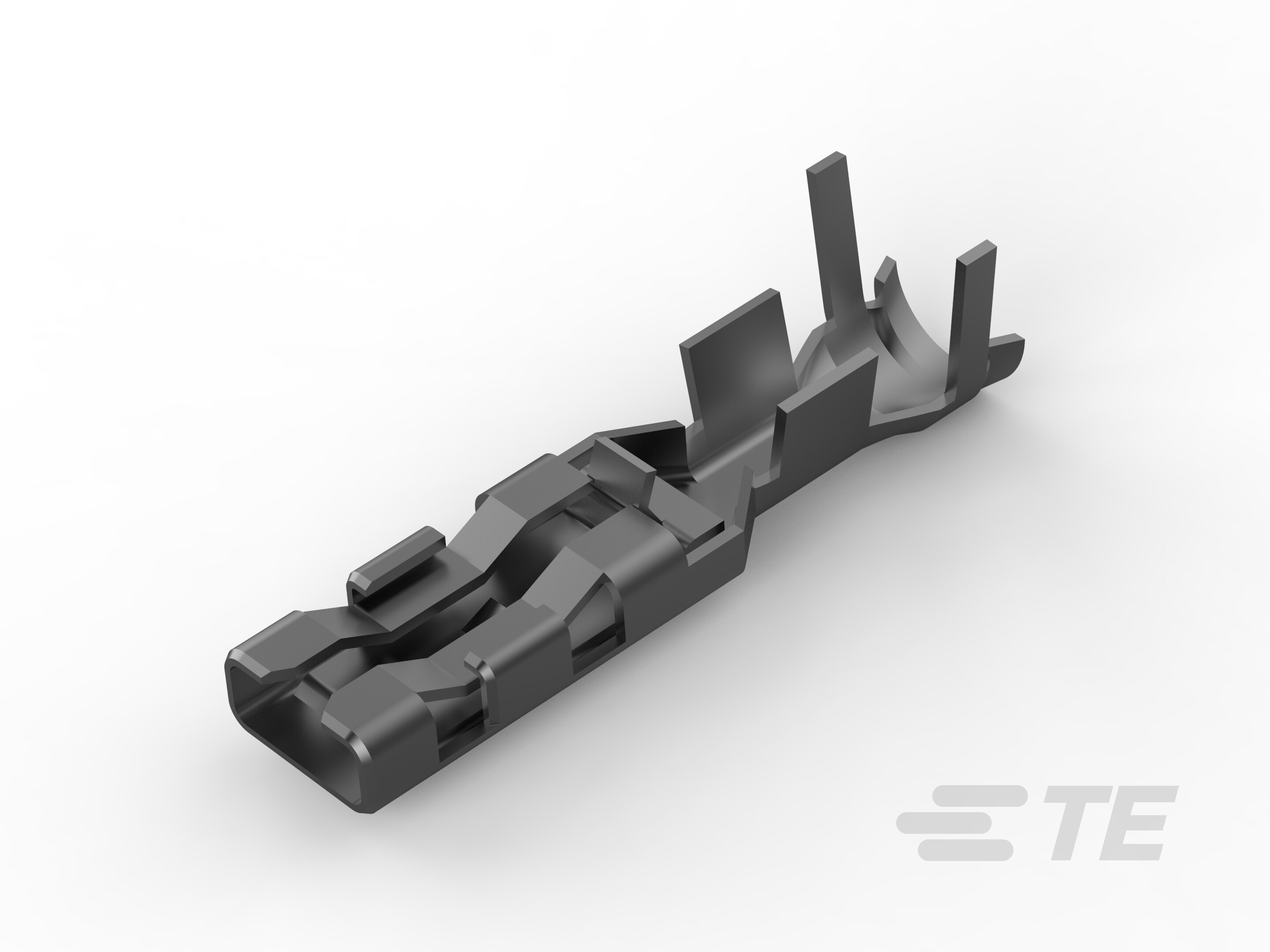

 TE Connectivity AMP Connectors | 20 AWG | 16 AWG | Female | Free Hanging (In-Line) | Phosphor Bronze | 0.02 in | 0.51 mm | Tin | Non-Insulated | 0.11 " | 2.79 mm | Standard | Crimp | 7.2 mm | 0.283 in | 0.122 in | 3.1 mm | 0.079 in | 2 mm | 0.614 in | 15.6 mm | |||||||||||||||||
 TE Connectivity AMP Connectors | Female Receptacle | Free Hanging (In-Line) | Quick Connect Disconnect | Side to Side | 0.11 in | 2.79 mm | Housing | Red | 0.11 in | 2.79 mm | ||||||||||||||||||||||||||||

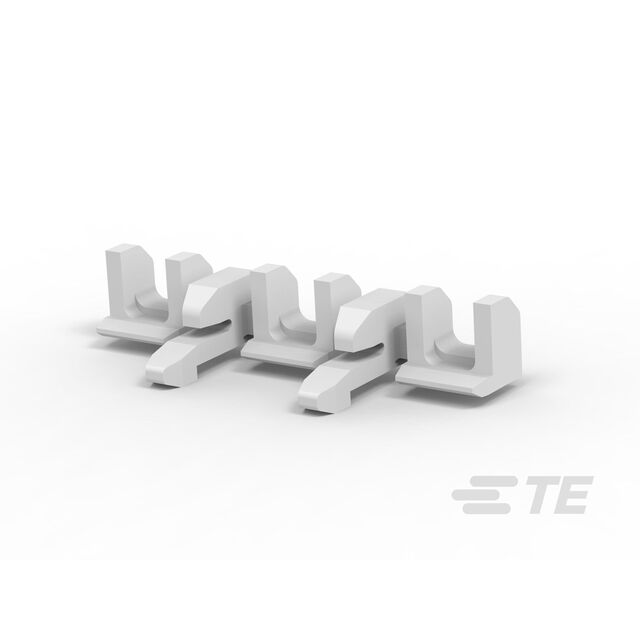

 TE Connectivity AMP Connectors | 0.11 in | 2.79 mm | Lock Plate | |||||||||||||||||||||||||||||||||||
 TE Connectivity AMP Connectors | Female Receptacle | Free Hanging (In-Line) | Quick Connect Disconnect | Side to Side | 0.11 in | 2.79 mm | Housing | Natural | 0.11 in | 2.79 mm | Contacts Not Included | Polyamide (PA) Nylon | ||||||||||||||||||||||||||
 TE Connectivity AMP Connectors | 17.2 mm | 0.677 " | 24 AWG | 19.5 AWG | Female | Free Hanging (In-Line) | Brass | 0.02 in | 0.51 mm | Tin | Non-Insulated | 0.11 " | 2.79 mm | Standard | Crimp | 6 mm | 0.236 in | |||||||||||||||||||||
 TE Connectivity AMP Connectors | Female Receptacle | Free Hanging (In-Line) | Quick Connect Disconnect | Side to Side | 0.11 in | 2.79 mm | Housing | Black | 0.11 in | 2.79 mm | 2 | |||||||||||||||||||||||||||
TE Connectivity AMP Connectors | 3.1 mm | 0.122 " | 0.08 in | 2.03 mm | 17.2 mm | 0.677 " | 20 AWG | 16 AWG | Female | Free Hanging (In-Line) | Brass | 0.02 in | 0.51 mm | Tin | Non-Insulated | 0.11 " | 2.79 mm | Standard | Crimp | 6 mm | 0.236 in | |||||||||||||||||
 TE Connectivity AMP Connectors | Female Receptacle | Free Hanging (In-Line) | Quick Connect Disconnect | Housing | Clear | 0.25 in | 6.35 mm | 1 |
