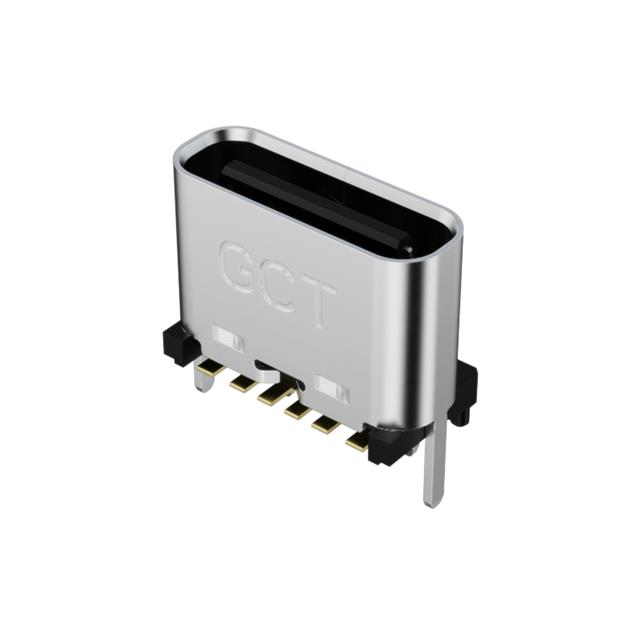

USB4140 Series
Manufacturer: GCT
Beta
⌘K
USB CONNECTOR, 3A, 48V, 2.3MM, USB TYPE C, RECEPTACLE, 6 POSITIONS
| Part | Material Flammability Rating | Contact Finish | Voltage - Rated | Features | Shell/Shielding Material | Insulation Color | Mounting Type | Mounting Feature | Current Rating (Amps) | Mating Cycles | Number of Contacts [custom] | Number of Contacts [custom] | Termination | Connector Type | Gender | Shielding | Number of Ports | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
UL94 V-0 | Gold | 20 V 48 VDC | Board Guide Power Only No Data Solder Retention Tab | Stainless Steel | Black | Surface Mount Through Hole | Vertical | 3 A | 20000 | 6 | 18 | Solder | USB-C (USB TYPE-C) | Receptacle | Shielded | 1 | 85 °C | -25 °C | |
UL94 V-0 | Gold | 20 V 48 VDC | Board Guide Power Only No Data Solder Retention Tab | Stainless Steel | Black | Surface Mount Through Hole | Vertical | 3 A | 20000 | 6 | 18 | Solder | USB-C (USB TYPE-C) | Receptacle | Shielded | 1 | 85 °C | -25 °C | |
UL94 V-0 | Gold | 20 V 48 VDC | Board Guide Power Only No Data Solder Retention Tab | Stainless Steel | Black | Surface Mount Through Hole | Vertical | 3 A | 20000 | 6 | 18 | Solder | USB-C (USB TYPE-C) | Receptacle | Shielded | 1 | 85 °C | -25 °C |
