EBR020 Series

Catalog

LED DRIVER CC AC/DC 30-42V 400MA

Part	Mounting Type	Weight	Weight	Type	Topology	Operating Temperature [Min]	Operating Temperature [Max]	Dimming	Size / Dimension [diameter]	Size / Dimension [z]	Size / Dimension [diameter]	Size / Dimension [z]	Current - Output (Max) [Max]	Power (Watts)	Efficiency	Voltage - Input (Min) [Min]	Termination Style	Number of Outputs	Features	Voltage - Output [Min]	Voltage - Output [Max]	Voltage - Input (Max) [Max]	Approval Agency	Ratings
ERP Power, LLC EBR020U-0400-42	Chassis Mount	170.5 g	0.376 lb	Constant Current	AC DC Converter	-30 ░C	90 °C	ELV TRIAC	2.28 "	1.25 in	57.9 mm	31.8 mm	400 mA	17 W	87 %	90 VAC	Wire Leads	1	OCP OTP SCP	30 V	42 V	132 VAC	CE cURus	IP20
ERP Power, LLC EBR020U-0720-21	Chassis Mount			Constant Current	AC DC Converter	-30 ░C	90 °C	ELV TRIAC	2.28 "	1.25 in	57.9 mm	31.8 mm	720 mA	15 W	85 %	90 VAC	Wire Leads	1	OCP OTP SCP	14 V	21 V	132 VAC	CE cURus	IP20
ERP Power, LLC EBR020U-0500-42	Chassis Mount	170.5 g	0.376 lb	Constant Current	AC DC Converter	-30 ░C	90 °C	ELV TRIAC	2.28 "	1.25 in	57.9 mm	31.8 mm	500 mA	21 W	87 %	90 VAC	Wire Leads	1	OCP OTP SCP	30 V	42 V	132 VAC	CE cURus	IP20
ERP Power, LLC EBR020U-0700-30	Chassis Mount	170.5 g	0.376 lb	Constant Current	AC DC Converter	-30 ░C	90 °C	ELV TRIAC	2.28 "	1.25 in	57.9 mm	31.8 mm	700 mA	21 W	87 %	90 VAC	Wire Leads	1	OCP OTP SCP	20 V	30 VDC	132 VAC	CE cURus	IP20
ERP Power, LLC EBR020U-0500-32	Chassis Mount	170.5 g	0.376 lb	Constant Current	AC DC Converter	-30 ░C	90 °C	ELV TRIAC	2.28 "	1.25 in	57.9 mm	31.8 mm	500 mA	16 W	87 %	90 VAC	Wire Leads	1	OCP OTP SCP	21 V	32 VDC	132 VAC	CE cURus	IP20
ERP Power, LLC EBR020E-0500-42-CE	Chassis Mount	170.5 g	0.376 lb	Constant Current	AC DC Converter	-30 ░C	90 °C	ELV TRIAC	2.28 "	1.25 in	57.9 mm	31.8 mm	500 mA	21 W	87 %	220 VAC	Wire Leads	1	OCP OTP SCP	30 V	42 V	240 VAC	CE cURus	IP20

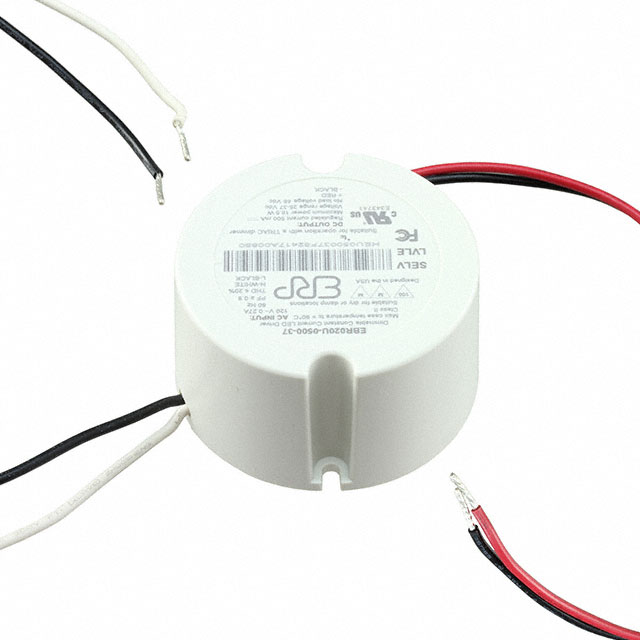

ERP Power, LLC EBR020U-0500-37	Chassis Mount	170.5 g	0.376 lb	Constant Current	AC DC Converter	-30 ░C	90 °C	ELV TRIAC	2.28 "	1.25 in	57.9 mm	31.8 mm	500 mA	19 W	87 %	90 VAC	Wire Leads	1	OCP OTP SCP	25 V	37 V	132 VAC	CE cURus	IP20
