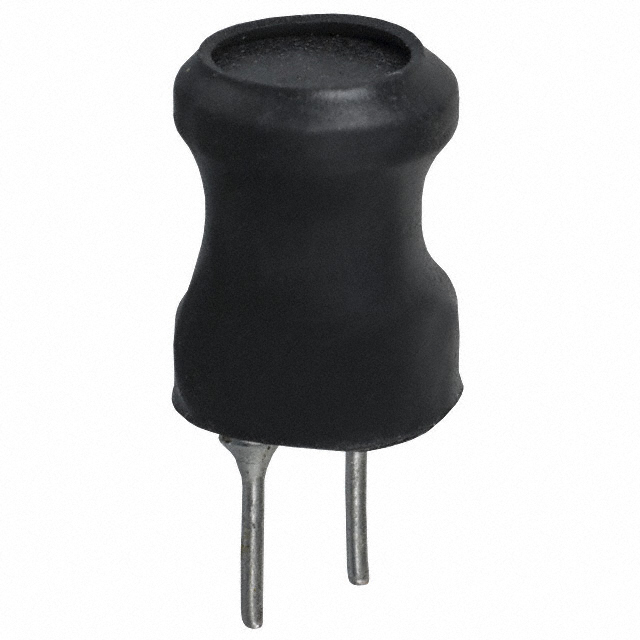

RL622 Series
Manufacturer: Bourns Inc.
Beta
⌘K
FIXED IND 8.2MH 50MA 21 OHM TH
| Part | Package / Case | Shielding | Operating Temperature [Min] | Operating Temperature [Max] | Frequency - Self Resonant | Mounting Type | Type | Q @ Freq [custom] | Q @ Freq [custom] | Current Rating (Amps) | Inductance | Size / Dimension [diameter] | Size / Dimension [diameter] | Material - Core | DC Resistance (DCR) [Max] | Tolerance | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Inductance Frequency - Test | Q @ Freq |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | Radial Vertical Cylinder | Unshielded | -55 C | 105 ░C | 300 kHz | Through Hole | Drum Core Wirewound | 20 | 252 kHz | 50 mA | 8.2 mH | 0.335 in | 8.5 mm | Ferrite | 21 Ohm | 10 % | 11 mm | 0.433 in | 252 kHz | |
Bourns Inc. | Radial Vertical Cylinder | Unshielded | -55 C | 105 ░C | 400 kHz | Through Hole | Drum Core Wirewound | 20 | 252 kHz | 50 mA | 5.6 mH | 0.335 in | 8.5 mm | Ferrite | 18 Ohm | 10 % | 11 mm | 0.433 in | 252 kHz | |
 Bourns Inc. | Radial Vertical Cylinder | Unshielded | -55 C | 105 ░C | 51 MHz | Through Hole | Drum Core Wirewound | 20 | 7.96 MHz | 4.3 A | 4.7 ÁH | 0.335 in | 8.5 mm | Ferrite | 30 mOhm | 10 % | 11 mm | 0.433 in | 7.96 MHz | |
Bourns Inc. | Radial Vertical Cylinder | Unshielded | -55 C | 105 ░C | 100 kHz | Through Hole | Drum Core Wirewound | 30 mA | 39 mH | 0.335 in | 8.5 mm | Ferrite | 80 Ohm | 10 % | 11 mm | 0.433 in | 79.6 kHz | 30 79.6 kHz | ||
Bourns Inc. | Radial Vertical Cylinder | Unshielded | -55 C | 105 ░C | 500 kHz | Through Hole | Drum Core Wirewound | 20 | 252 kHz | 50 mA | 4.7 mH | 0.335 in | 8.5 mm | Ferrite | 16 Ohm | 10 % | 11 mm | 0.433 in | 252 kHz | |
 Bourns Inc. | Radial Vertical Cylinder | Unshielded | -55 C | 105 ░C | 6.5 MHz | Through Hole | Drum Core Wirewound | 1.4 A | 47 µH | 0.335 in | 8.5 mm | Ferrite | 160 mOhm | 10 % | 11 mm | 0.433 in | 2.52 MHz | 2.52 MHz 30 | ||
Bourns Inc. | Radial Vertical Cylinder | Unshielded | -55 C | 105 ░C | 300 kHz | Through Hole | Drum Core Wirewound | 50 mA | 10 mH | 0.335 in | 8.5 mm | Ferrite | 25 Ohm | 10 % | 11 mm | 0.433 in | 79.6 kHz | 40 79.6 kHz | ||
Bourns Inc. | Radial Vertical Cylinder | Unshielded | -55 C | 105 ░C | 100 kHz | Through Hole | Drum Core Wirewound | 30 mA | 27 mH | 0.335 in | 8.5 mm | Ferrite | 62 Ohm | 10 % | 11 mm | 0.433 in | 79.6 kHz | 30 79.6 kHz | ||
 Bourns Inc. | Radial Vertical Cylinder | Unshielded | -55 C | 105 ░C | 400 kHz | Through Hole | Drum Core Wirewound | 20 | 252 kHz | 50 mA | 0.335 in | 8.5 mm | Ferrite | 19 Ohm | 10 % | 11 mm | 0.433 in | 252 kHz | ||
Bourns Inc. | Radial Vertical Cylinder | Unshielded | -55 C | 105 ░C | 1 MHz | Through Hole | Drum Core Wirewound | 20 | 252 kHz | 80 mA | 1.8 mH | 0.335 in | 8.5 mm | Ferrite | 6.4 Ohm | 10 % | 11 mm | 0.433 in | 252 kHz |
