FDA2-28080 Series
Manufacturer: Qualtek
Beta
⌘K

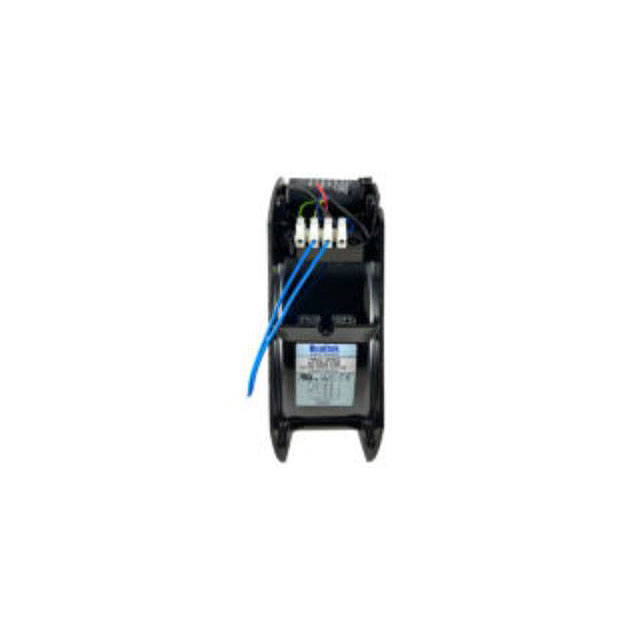

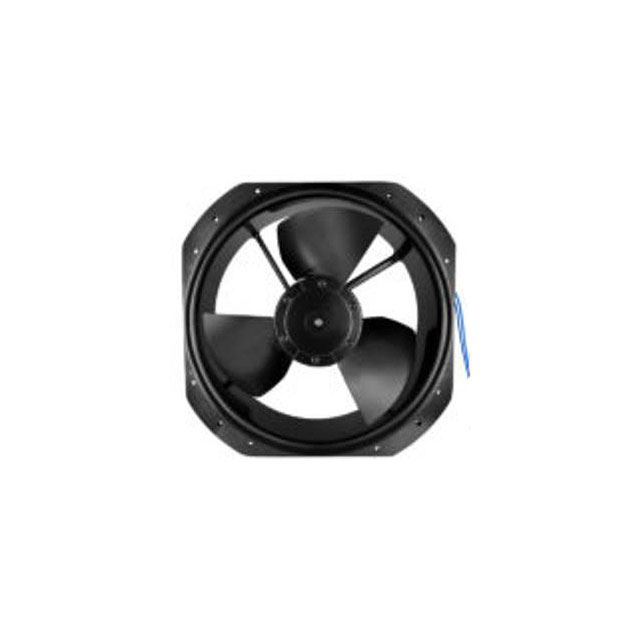

FAN AXIAL 280X80MM BALL 230VAC
| Part | Material - Frame | Material - Blade | Current Rating (Amps) | Lifetime @ Temp. | Size / Dimension [x] | Size / Dimension [z] | Weight | Weight | Fan Type | Air Flow | Air Flow | Approval Agency | Voltage - Rated | Noise | Termination | Power (Watts) | Bearing Type | Operating Temperature [Min] | Operating Temperature [Max] | Width [y] | RPM | Static Pressure | Static Pressure | Ingress Protection | Weight [custom] | Weight [custom] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Qualtek | Aluminum | Steel | 0.63 A | 100000 Hrs | 320 mm | 320 mm | 3 kg | 6.7 lbs | Tubeaxial | 32.2 mł/min | 1150 CFM | CE cURus TUV | 230 VAC | 73 dB(A) | Terminal Block | 138 W | Ball | -20 ░C | 70 °C | 80 mm | 2900 RPM | 201 Pa | 0.807 in H2O | IP54 - Dust Protected Water Resistant | |||
 Qualtek | Aluminum | Steel | 0.63 A | 320 mm | 320 mm | Tubeaxial | 32.2 mł/min | 1150 CFM | CE cURus TUV | 230 VAC | 73 dB(A) | Terminal Block | 138 W | Ball | -20 ░C | 70 °C | 80 mm | 2900 RPM | 201 Pa | 0.807 in H2O | IP56M | 6.1 lbs | 2.8 kg | Salt Fog Rated Thermal Overload Protector (TOP) | |||
Qualtek | Aluminum | Steel | 1.2 A | 50000 Hrs | 320 mm | 320 mm | 3 kg | 6.7 lbs | Tubeaxial | 32.2 mł/min | 1150 CFM | CE cURus TUV | 115 VAC | 73 dB(A) | Terminal Block | 136 W | Ball | -20 ░C | 70 °C | 80 mm | 2900 RPM | 201 Pa | 0.807 in H2O |
