1546216 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

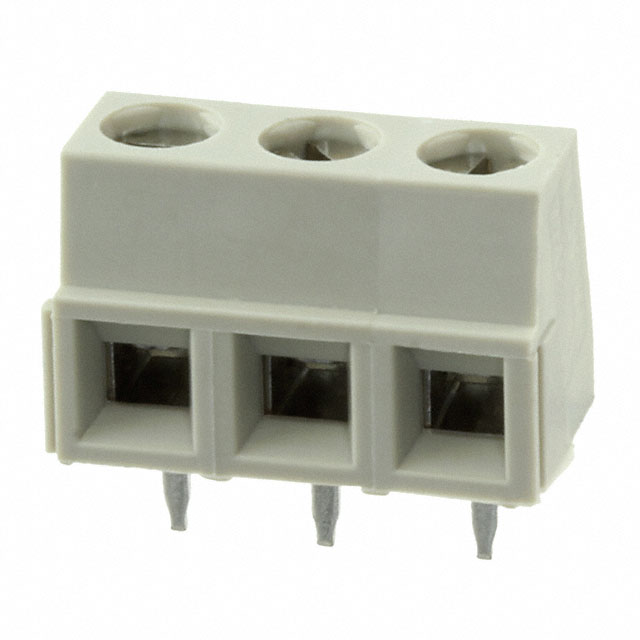

TERM BLK 3POS SIDE ENTRY 5MM PCB
| Part | Clamp Material - Plating | Torque - Screw | Torque - Screw | Operating Temperature [Min] | Operating Temperature [Max] | Screw Material - Plating | Screw Thread | Contact Material - Plating | Mating Orientation | Positions Per Level | Voltage | Current | Number of Levels | Color | Mounting Type | Wire Gauge [Max] | Wire Gauge [Min] | Features | Wire Termination | Pitch | Pitch |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Brass - Nickel Plated | 6 Lb-In | 0.68 Nm | -40 C | 105 ░C | Brass - Nickel Plated | M3 | Brass - Tin Plated | Horizontal with Board | 3 | 300 VDC | 13.5 A | 1 | Gray | Through Hole | 17 AWG | 15 AWG | Interlocking (Side) | Screw - Rising Cage Clamp | 0.197 in | 5 mm |
 TE Connectivity AMP Connectors | Brass - Nickel Plated | 6 Lb-In | 0.68 Nm | -40 C | 105 ░C | Brass - Nickel Plated | M3 | Brass - Tin Plated | Horizontal with Board | 6 | 300 VDC | 13.5 A | 1 | Gray | Through Hole | 17 AWG | 15 AWG | Interlocking (Side) | Screw - Rising Cage Clamp | 0.197 in | 5 mm |
TE Connectivity AMP Connectors | Brass - Nickel Plated | 6 Lb-In | 0.68 Nm | -40 C | 105 ░C | Brass - Nickel Plated | M3 | Brass - Tin Plated | Horizontal with Board | 10 | 300 VDC | 13.5 A | 1 | Gray | Through Hole | 17 AWG | 15 AWG | Interlocking (Side) | Screw - Rising Cage Clamp | 0.197 in | 5 mm |
