32562 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

PIDG SPDFLG 22-16COM22-18MIL 8 ROHS COMPLIANT: YES

Part	Length - Termination	Length - Termination	Termination	Color	Stud/Tab Size	Length - Overall [x]	Length - Overall [x]	Terminal Type	Width - Outer Edges [x]	Width - Outer Edges [x]	Insulation	Material - Insulation	Contact Finish	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Tongue Inside Opening [x]	Tongue Inside Opening [x]	Contact Material	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Features	Mounting Type	Wire Gauge [Max]	Wire Gauge [Min]	Stud/Tab Size

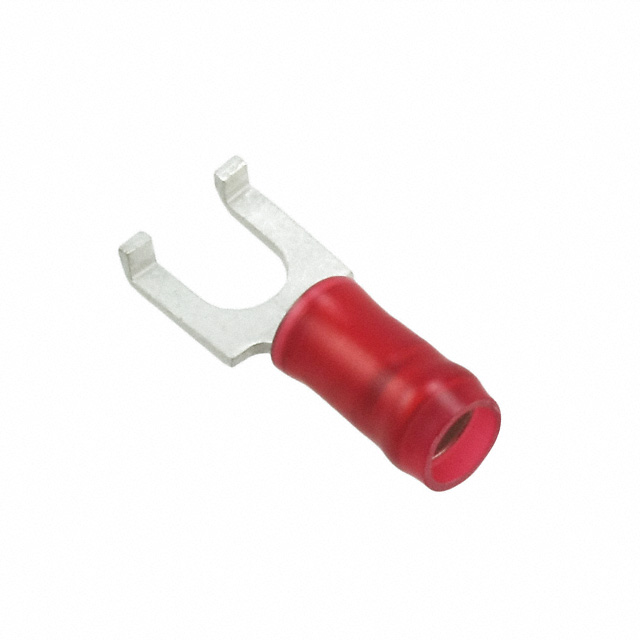

TE Connectivity Raychem Cable Protection 2-32562-2	0.404 "	10.26 mm	Crimp	Red	8 Stud	19.51 mm	0.768 "	Flanged	0.296 in	7.52 mm	Insulated	Nylon Polyamide (PA)	Tin	0.203 in	5.16 mm	0.171 in	4.34 mm	Copper	0.14 in	0.105 in	3.56 mm	2.67 mm	Serrated Termination	Free Hanging (In-Line)	22 AWG	16 AWG

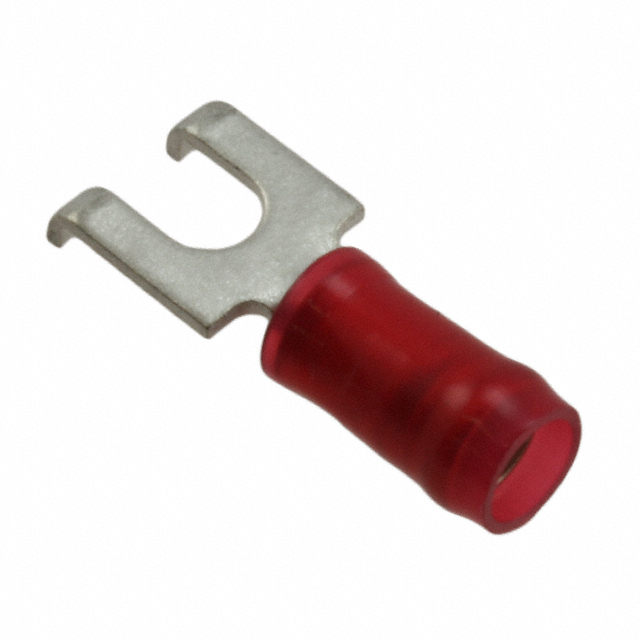

TE Connectivity Raychem Cable Protection 8-32562-1	0.404 "	10.26 mm	Crimp	Red		19.51 mm	0.768 "	Flanged	0.296 in	7.52 mm	Insulated	Nylon Polyamide (PA)	Tin	0.203 in	5.16 mm	0.145 in	3.68 mm	Copper	0.14 in	0.105 in	3.56 mm	2.67 mm	Serrated Termination	Free Hanging (In-Line)	22 AWG	16 AWG	6 Stud
TE Connectivity Raychem Cable Protection 2-32562-3	0.404 "	10.26 mm	Crimp	Red	8 Stud	19.51 mm	0.768 "	Flanged	0.296 in	7.52 mm	Insulated	Nylon Polyamide (PA)	Tin	0.203 in	5.16 mm	0.171 in	4.34 mm	Copper	0.14 in	0.105 in	3.56 mm	2.67 mm	Serrated Termination	Free Hanging (In-Line)	22 AWG	16 AWG

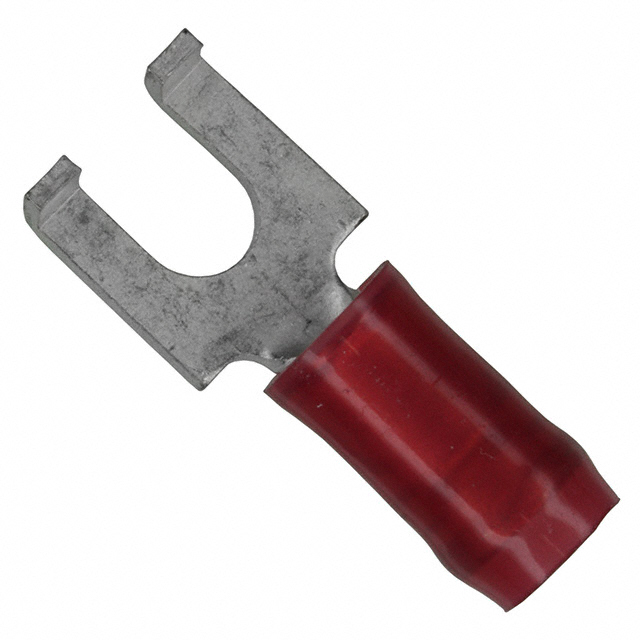

TE Connectivity Raychem Cable Protection 2-32562-1	0.404 "	10.26 mm	Crimp	Red		19.51 mm	0.768 "	Flanged	0.296 in	7.52 mm	Insulated	Nylon Polyamide (PA)	Tin	0.203 in	5.16 mm	0.145 in	3.68 mm	Copper	0.14 in	0.105 in	3.56 mm	2.67 mm	Serrated Termination	Free Hanging (In-Line)	22 AWG	16 AWG	6 Stud
