100AWSP1 Series

Manufacturer: E-Switch

Catalog

SWITCH TOGGLE SPDT 5A 120V

Part	Actuator Material	Electrical Life (Cycles)	Switch Function	Bushing Thread	Circuit	Features	Current Rating	Voltage Rating - AC	Actuator Type	Mounting Type	Illumination	Actuator Length	Termination Style	Panel Cutout Diameter	Panel Cutout Shape	Voltage Rating - DC	Ingress Protection Description	Ingress Protection IP Rating	Operating Temperature (Max)	Operating Temperature (Min)
E-Switch 100AWSP1T2B1M1QEH	Brass Chrome Plated	30000 Cycles	On-On	1/4-40	SPDT	Epoxy Sealed Terminals	5 A	120 V	Standard Round	Panel Mount	Non-Illuminated	5.08 mm	Solder Lug	0.25 "	Circular	28 V	Dust Tight Waterproof	IP67	85 °C	-30 °C
E-Switch 100AWSP1T1B1M7QE	Brass Chrome Plated	30000 Cycles	On-On	1/4-40	SPDT	Epoxy Sealed Terminals	5 A	120 V	Standard Round	Right Angle Through Hole Vertical	Non-Illuminated	10.55 mm	PC Pin	0.25 "	Circular	28 V	Dust Tight Waterproof	IP67	85 °C	-30 °C

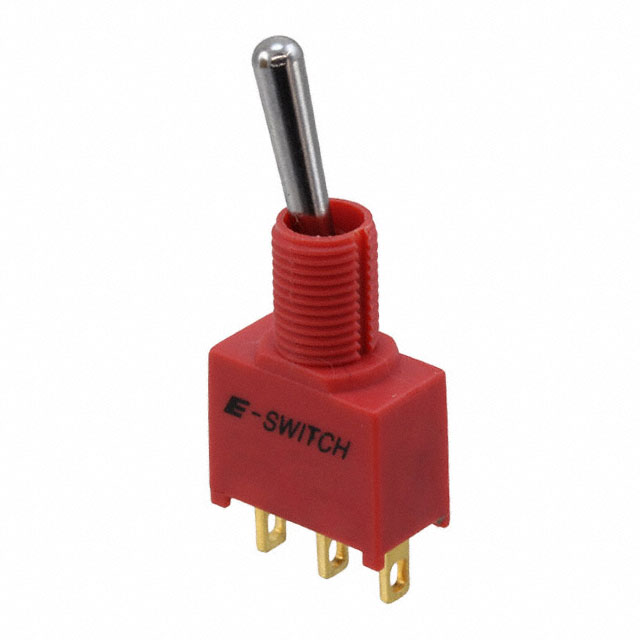

E-Switch 100AWSP1T1B1M1RE	Brass Chrome Plated	30000 Cycles	On-On	1/4-40	SPDT	Epoxy Sealed Terminals	0.4 VA	20 V	Standard Round	Panel Mount	Non-Illuminated	10.41 mm	Solder Lug	0.25 "	Circular	20 V	Dust Tight Waterproof	IP67	85 °C	-30 °C

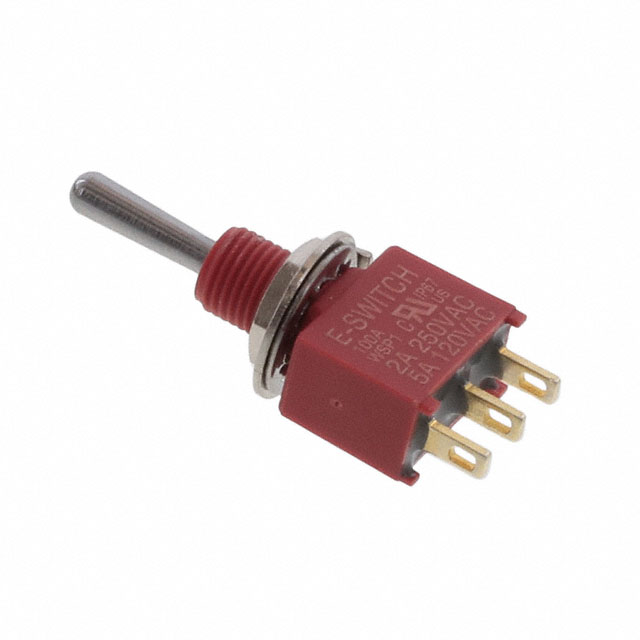

E-Switch 100AWSP1T1B1M1QEH	Brass Chrome Plated	30000 Cycles	On-On	1/4-40	SPDT	Epoxy Sealed Terminals	5 A	120 V	Standard Round	Panel Mount	Non-Illuminated	10.41 mm	Solder Lug	0.25 "	Circular	28 V	Dust Tight Waterproof	IP67	85 °C	-30 °C
E-Switch 100AWSP1T2B4VS3QE	Brass Chrome Plated	30000 Cycles	On-On	Unthreaded	SPDT	Epoxy Sealed Terminals	5 A	120 V	Standard Round	Through Hole	Non-Illuminated	7.62 mm	PC Pin			28 V	Dust Tight Waterproof	IP67	85 °C	-30 °C
E-Switch 100AWSP1T2B1M7QEH	Brass Chrome Plated	30000 Cycles	On-On	1/4-40	SPDT	Epoxy Sealed Terminals	5 A	120 V	Standard Round	Panel Mount Right Angle Vertical	Non-Illuminated	5.08 mm	PC Pin	0.25 "	Circular	28 V	Dust Tight Waterproof	IP67	85 °C	-30 °C
E-Switch 100AWSP1T2B1M1REH	Brass Chrome Plated	30000 Cycles	On-On	1/4-40	SPDT	Epoxy Sealed Terminals	0.4 VA	20 V	Standard Round	Panel Mount	Non-Illuminated	5.47 mm	Solder Lug	0.25 "	Circular	20 V	Dust Tight Waterproof	IP67	85 °C	-30 °C
E-Switch 100AWSP1T1B4VS21RE	Brass Chrome Plated	30000 Cycles	On-On	Unthreaded	SPDT	Epoxy Sealed Terminals	0.4 VA	20 V	Standard Round	Through Hole	Non-Illuminated	0.5 in	PC Pin			20 V	Dust Tight Waterproof	IP67	85 °C	-30 °C
E-Switch 100AWSP1T1B4M2RE	Brass Chrome Plated	30000 Cycles	On-On	Unthreaded	SPDT	Epoxy Sealed Terminals	0.4 VA	20 V	Standard Round	Through Hole	Non-Illuminated	0.5 in	PC Pin			20 V	Dust Tight Waterproof	IP67	85 °C	-30 °C
E-Switch 100AWSP1T2B4M7QE	Brass Chrome Plated	30000 Cycles	On-On	Unthreaded	SPDT	Epoxy Sealed Terminals	5 A	120 V	Standard Round	Right Angle Through Hole Vertical	Non-Illuminated	7.62 mm	PC Pin			28 V	Dust Tight Waterproof	IP67	85 °C	-30 °C
