SFV22R Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

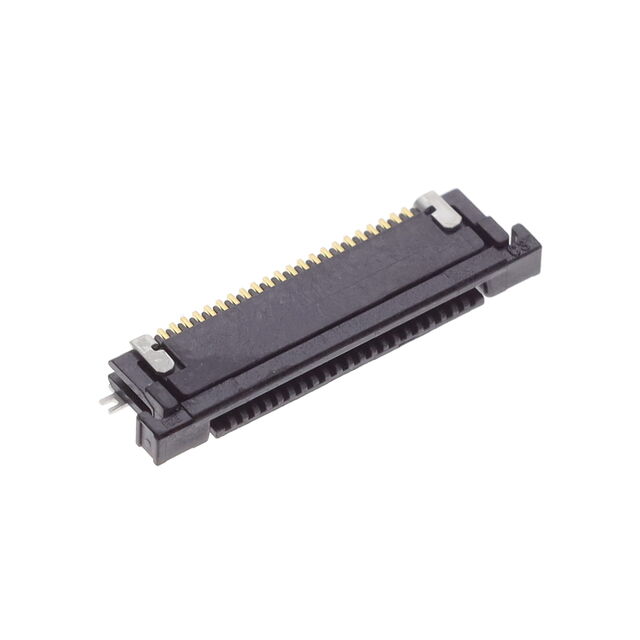

CONN FPC BOTTOM 22POS 0.5MM R/A
| Part | Mating Cycles | Current Rating (Amps) | Housing Color | Actuator Color | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Pitch | Pitch | Actuator Material | Connector/Contact Type | Contact Finish | Height Above Board [z] | Height Above Board [z] | Mounting Type | Contact Material | Material Flammability Rating | FFC, FCB Thickness | Voltage Rating | Locking Feature | Housing Material | Termination | Cable End Type | Flat Flex Type | FFC, FCB Thickness [custom] | FFC, FCB Thickness [custom] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | 20 | 0.5 A | Black | Brown | -55 C | 105 ░C | 22 | 0.02 " | 0.5 mm | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | Contacts Bottom | Gold | 0.071 in | 1.8 mm | Right Angle Surface Mount | Phosphor Bronze | UL94 V-0 | 0.33 mm | 50 V | Slide Lock | Glass Filled Halogen Free Liquid Crystal Polymer (LCP) | Solder | Tapered | FPC | |||
 Amphenol ICC (FCI) | 20 | 0.5 A | Black | Brown | -55 C | 105 ░C | 22 | 0.02 " | 0.5 mm | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | Contacts Top | Tin | 0.071 in | 1.8 mm | Right Angle Surface Mount | Phosphor Bronze | UL94 V-0 | 50 V | Slide Lock | Glass Filled Halogen Free Liquid Crystal Polymer (LCP) | Solder | Notched | FFC FPC | 0.3 mm | 0.33 mm | ||
 Amphenol ICC (FCI) | 20 | 0.5 A | Black | Black | -55 C | 105 ░C | 22 | 0.02 " | 0.5 mm | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | Contacts Top | Tin | 0.071 in | 1.8 mm | Right Angle Surface Mount | Phosphor Bronze | UL94 V-0 | 50 V | Slide Lock | Glass Filled Halogen Free Liquid Crystal Polymer (LCP) | Solder | Straight Tapered | FPC | 0.3 mm | 0.33 mm | ||
 Amphenol ICC (FCI) | 20 | 0.5 A | Black | Black | -55 C | 105 ░C | 22 | 0.02 " | 0.5 mm | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | Contacts Bottom | Gold | 0.071 in | 1.8 mm | Right Angle Surface Mount | Phosphor Bronze | UL94 V-0 | 0.3 mm | 50 V | Slide Lock | Glass Filled Halogen Free Liquid Crystal Polymer (LCP) | Solder | Tapered | FFC FPC | Solder Retention Zero Insertion Force (ZIF) | ||
Amphenol ICC (FCI) | 20 | 0.5 A | Black | Black | -55 C | 105 ░C | 22 | 0.02 " | 0.5 mm | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | Contacts Top | Gold | 0.071 in | 1.8 mm | Right Angle Surface Mount | Phosphor Bronze | UL94 V-0 | 50 V | Slide Lock | Glass Filled Halogen Free Liquid Crystal Polymer (LCP) | Solder | Straight Tapered | FPC | 0.3 mm | 0.33 mm |
